Loading the software
LOGIQ V3/V5/V5 Expert – Basic Service Manual 8-23
5726264-100 English Rev.8
8-3-8 Rewrite the Serial Number(continued)
For software R 2.0.3 and above, the following dialog will
display.
There are two options for you to continue.
• If you will input a new serial number in step 2 on
page 8-23, input the password and select OK.
• If you will input the same serial number as the original in
the step 2 on
page 8-23, you can select Ignore without
input of the password. Then the step 2 on
page 8-23 in the
following procedure will be skipped.

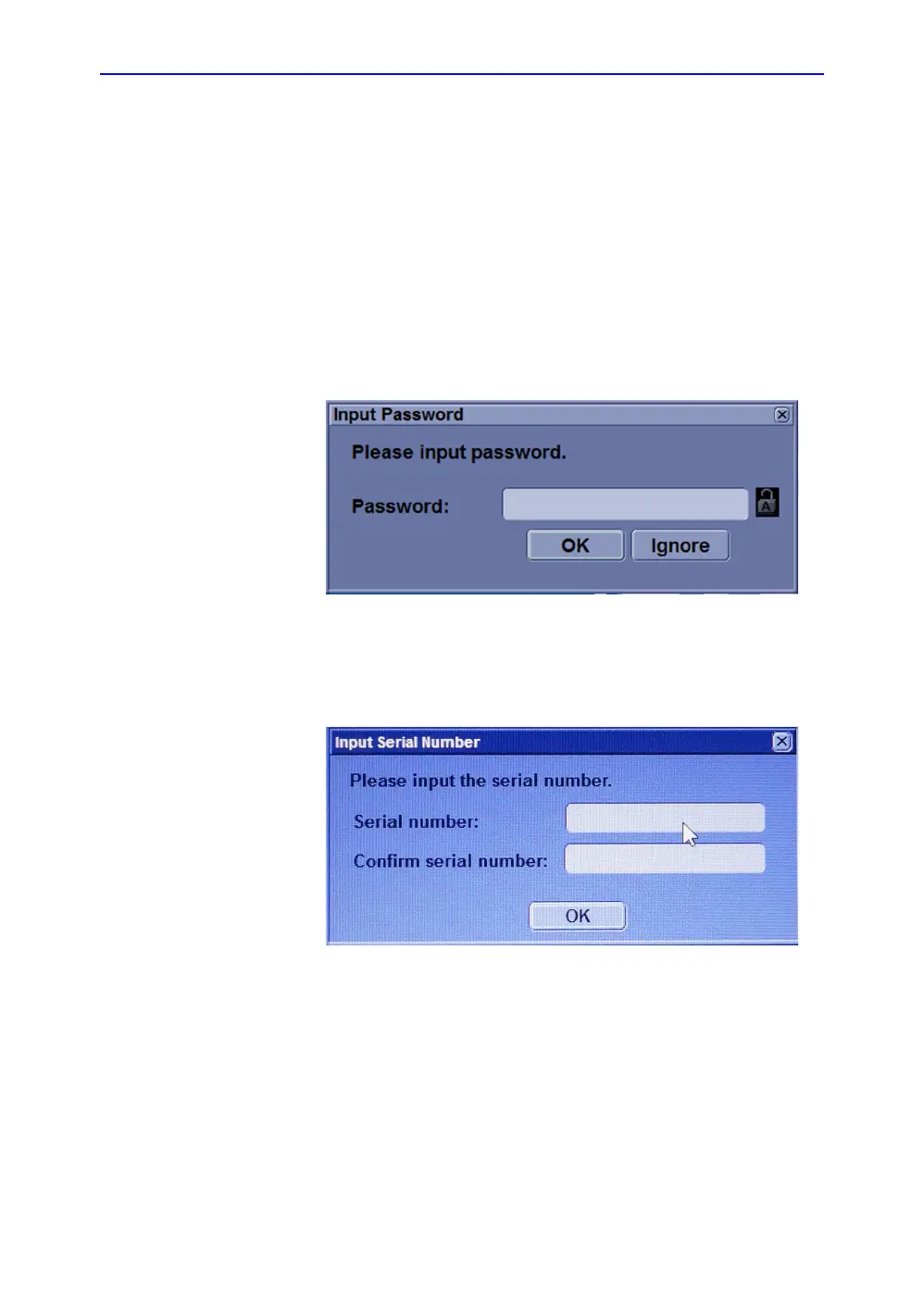

Figure 8-19. Ignore Button
2. Then input the correct Serial number, select OK.
NOTE: The serial number is case sensitivity.
Figure 8-20. Input Serial Number
NOTE: The serial number can be found on the rating plate on the
rear side of the system.
