Maintenance

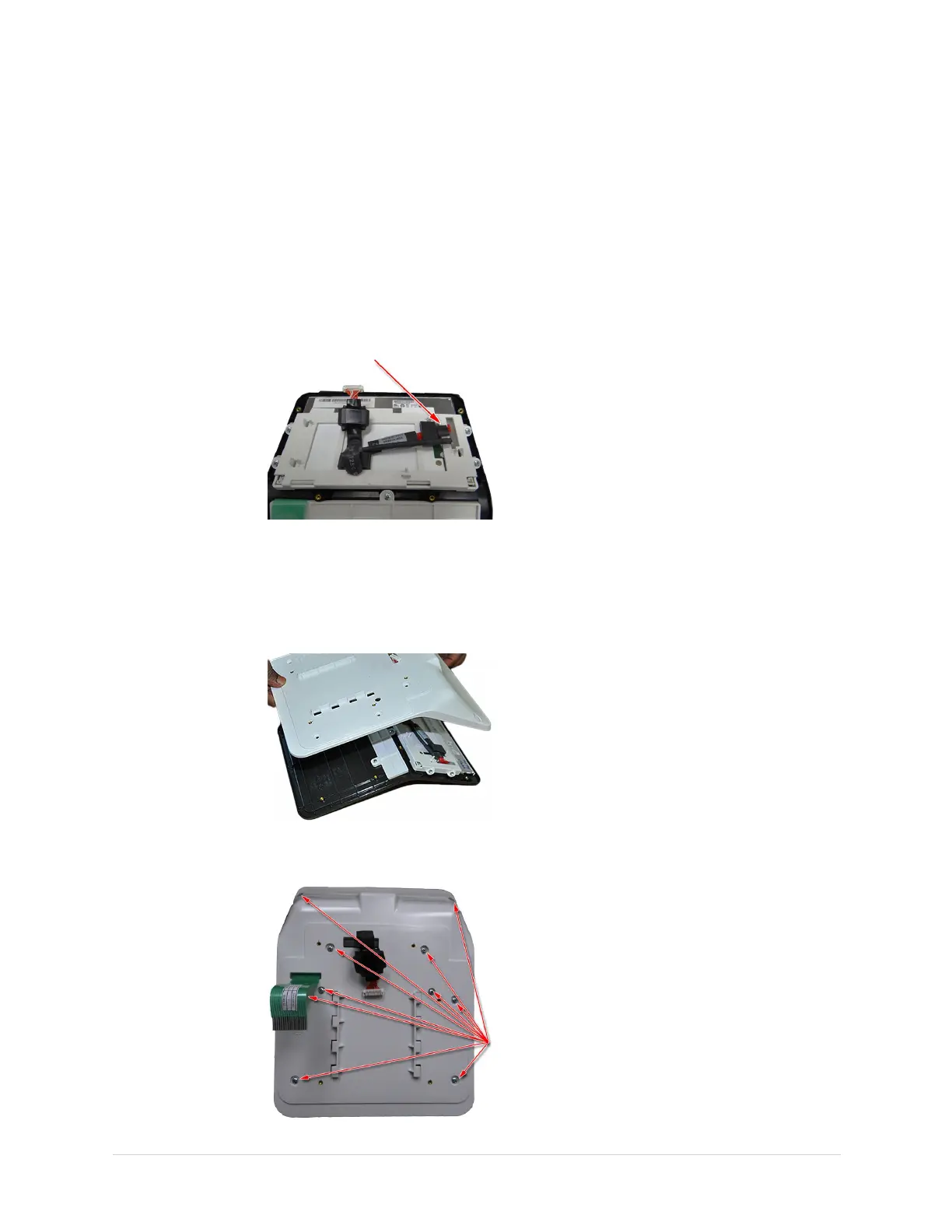

ReplacingtheDisplayAssembly
Usethefollowingproceduretoreplacethedisplayassembly.
1.Insertthenewdisplaymoduleintothedisplaybezel.
2.Replaceandtightenthescrewssecuringthedisplaytothedisplayholder,as
showninthefollowingphotograph.
3.ReconnectthedisplaycabletotheLCDdisplayandafxthecabletothebackof
thedisplay,asshowninthefollowingphotograph.
NOTE:
Theferriteonthedisplaycablehasdouble-sidedtapethatallowsittobe
gentlyafxedtothebackofthedisplay.
4.Replacethedisplaybottomcover,carefullythreadingthekeypadribbonand
displaycablethroughtheopenings,asshowninthefollowingphotograph.
5.Securethedisplaybottomcoverwiththetenscrews,asshowninthefollowing
photograph.
2053535-003C
MAC™2000ECGAnalysisSystem
111
