Maintenance

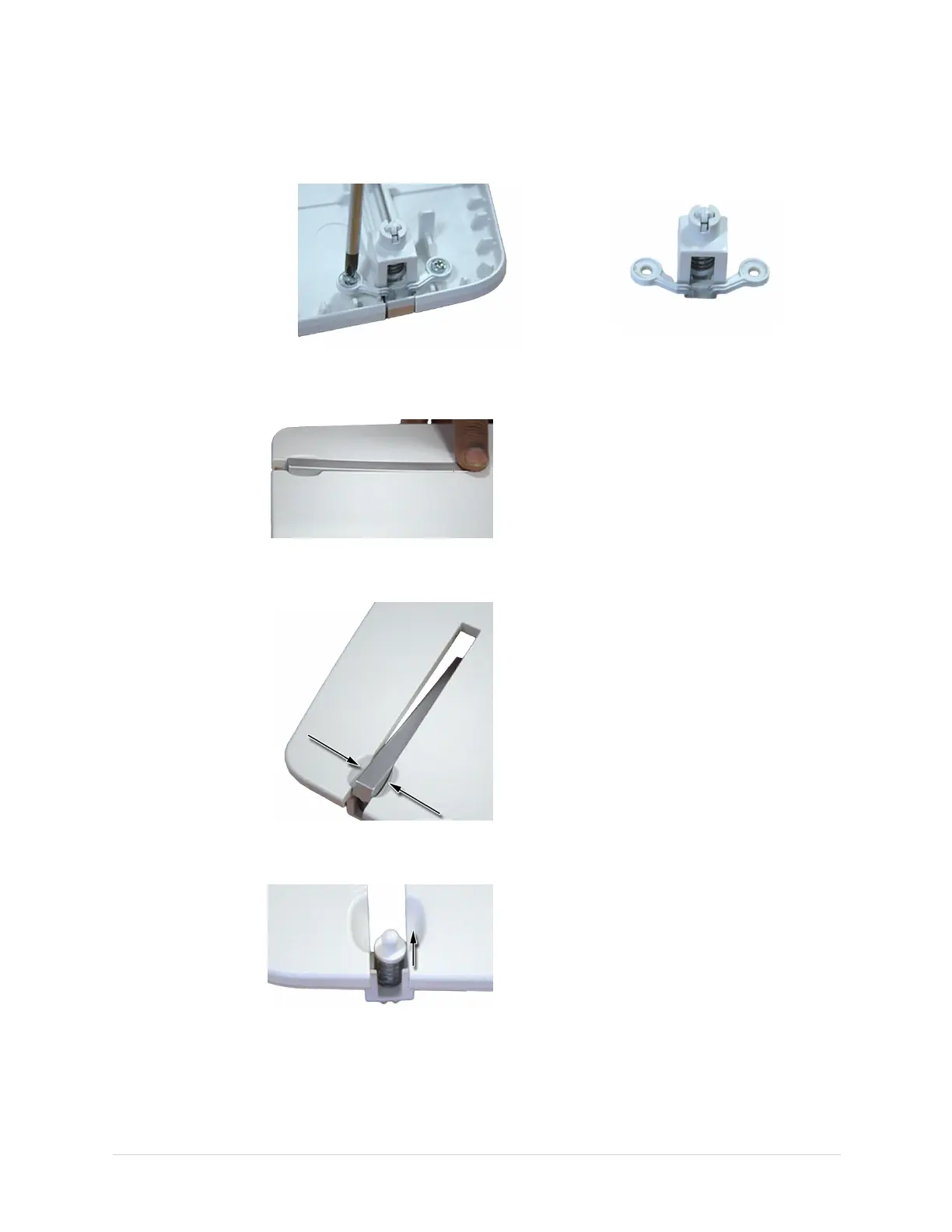

4.Turnoverthetopcover,removethetwoM3x5fasteners,andliftthedeco,as
showninthefollowingphotographs.
5.Turnoverthetopcoverandpressdownontherearoftheprinterdoorrelease
lever,asshowninthefollowingphotograph.
6.Graspbothsidesoftheraisedprinterdoorreleaselever,asshowninthe
followingphotograph,andlifttoremoveitfromthetopcover.
7.Graspbothsidesoftheplungerandlifttoremoveitfromthetopcover,as
showninthefollowingphotograph.
Younowhaveremovedthetopcoverfromthetopcoverassembly,asshown
inthefollowingphotograph.
78
MAC™2000ECGAnalysisSystem
2053535-003C
