Maintenance
SeparatingtheTopCoverfromtheTopCoverAssembly
Usethefollowingproceduretoseparatethetopcoverfromthetopcoverassembly
afterthetopcoverassemblyhasbeenremovedfromthedevice.See“Removingthe
TopCoverAssembly”onpage75forinstructions.

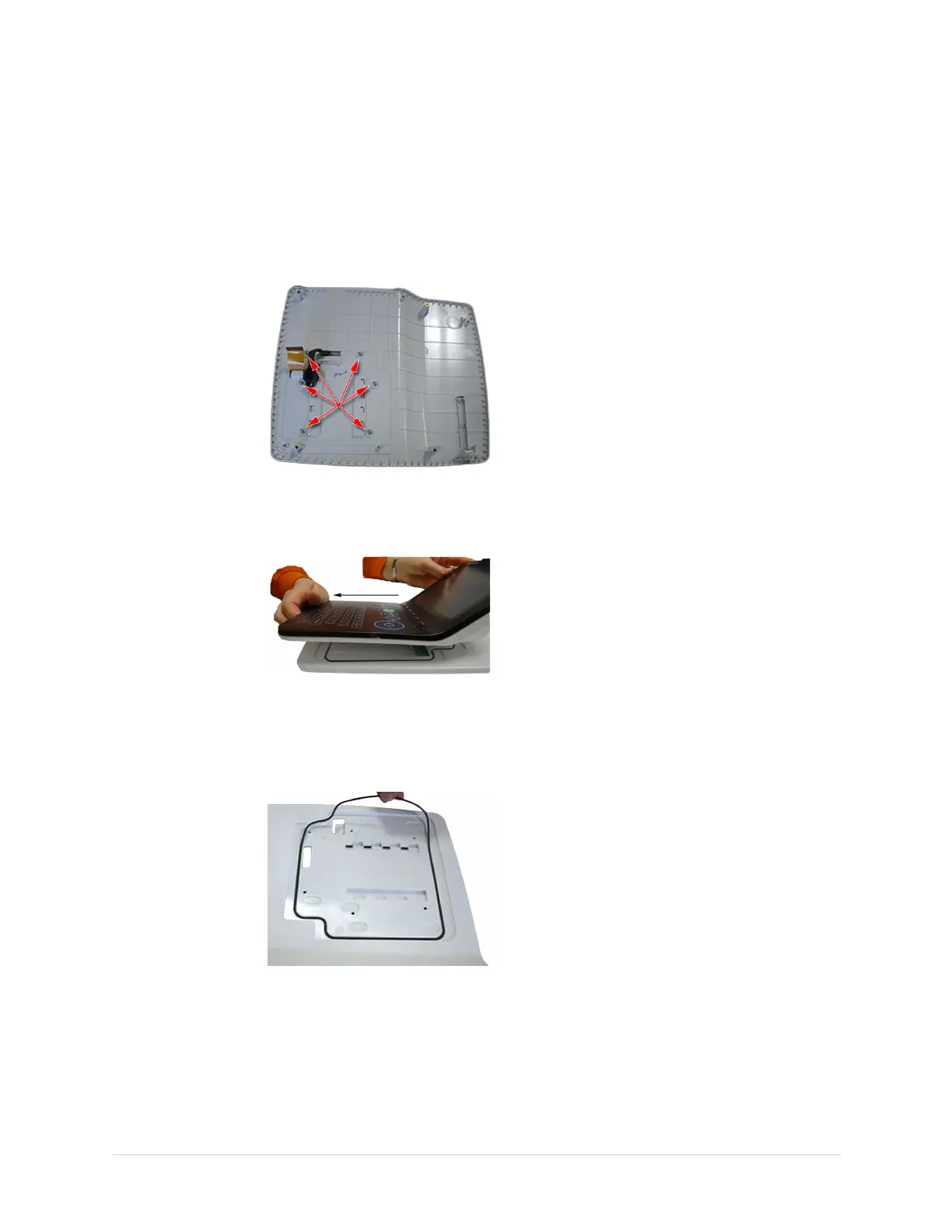

1.Turnoverthetopcoverassemblyandremovethesixfastenersshowninthe
followingphotograph.
2.Turnoverthetopcoverassembly,slidethedisplayassemblytowardthefrontof
thetopcoverassembly,andliftthedisplayassembly,asshowninthefollowing
photograph.
NOTE:
Carefullyguidethedisplaycableandkeypadribbonoutoftheslotsonthe
topcover.
3.PryouttheO-ringfromthetopcover,asshowninthefollowingphotograph.
2053535-003C
MAC™2000ECGAnalysisSystem
77
