Maintenance

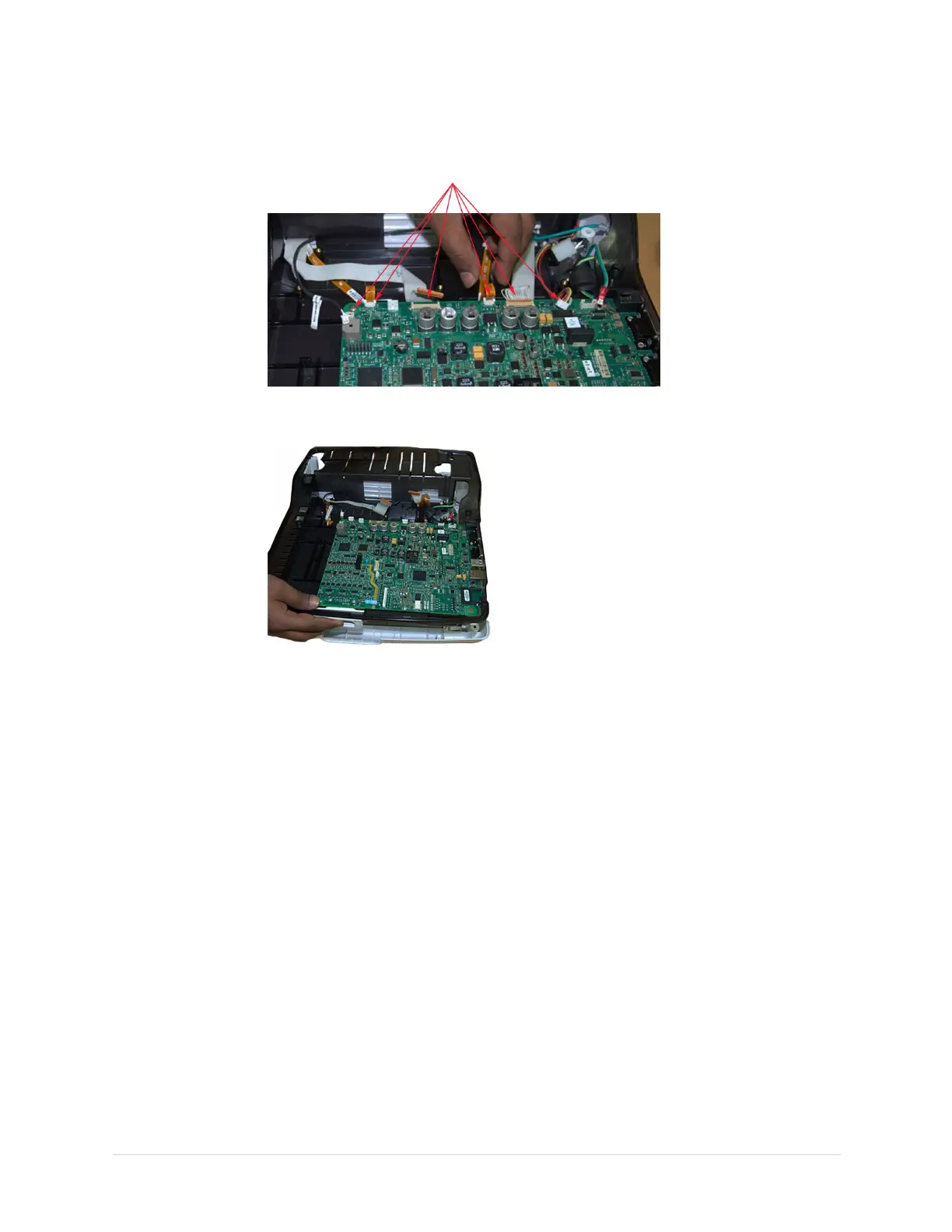

7.Disconnectthecablesandharnesses,identiedinthefollowingphotograph,
fromthePWA.
8.Liftthechassisfromthebottomcover,carefullythreadingthecablesthrough
theslotsinthechassis.
YouhavenowdetachedthechassisandPWAfromthebottomcover.Youcan
nowservicetheprinterassemblyorcontinuetoremovethebottomcover.To
servicetheprinterassembly,see“Printer”onpage94.Toremovethebottom
cover,see“BottomCover”onpage89.
84
MAC™2000ECGAnalysisSystem
2053535-003C
