GE MFE DMS 2

Appendix B. Choosing the File Type
DMS 2 Operating Manual Page 195
GRID File
Data file format for testing of areas (e.g. tanks, pipes)
Convention:
Element Number Descriptor
FILE NAME 1 (per file) 32 alphanumeric
characters
LOCATION determined by 2D-Coordinates,
available memory (A0 - AZ9999) or
(0A - 9999AZ)
POINT 1 - 9 Sequentially
numbered
12 13 14 15 16
K
L
M
1
23
54
Locations are 2D coordinates
(as with a chess board)
Letters may be used for columns
(Numbers will be used for rows).
OR
Numbers may be used for columns
(Letters will be used for rows).

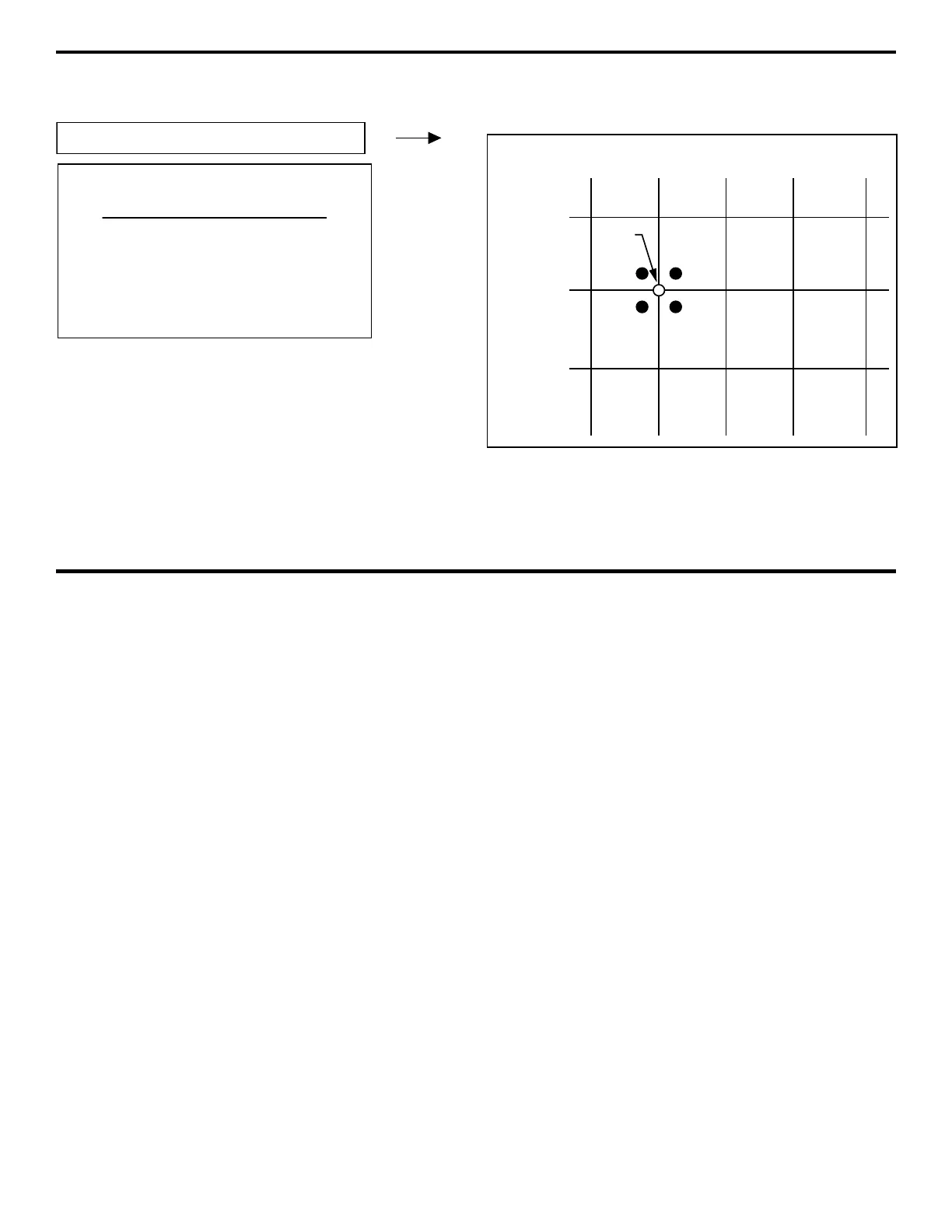

Example: 5 point/Location Grid
