Appendix B. Choosing the File Type
Page 196 DMS 2 Operating Manual
CUSTOM GRID File
Data file format for testing of areas where each location consists of a grid of the same size.
Convention:
Element Number Descriptor
FILE NAME 1 (per file) 32 alphanumeric
characters
LOCATION 1 - 999 16 alphanumeric
characters
POINT determined by 2D-Coordinates,
available memory (A0 - AZ9999) or
(0A - 9999AZ)
A CUSTOM GRID file will consist of up to
999 locations where EACH location will be
identified by its user given
alphanumeric
name.
Each location will be a grid of the same size
(user determined) where 1 thickness reading
is stored at each coordinate.

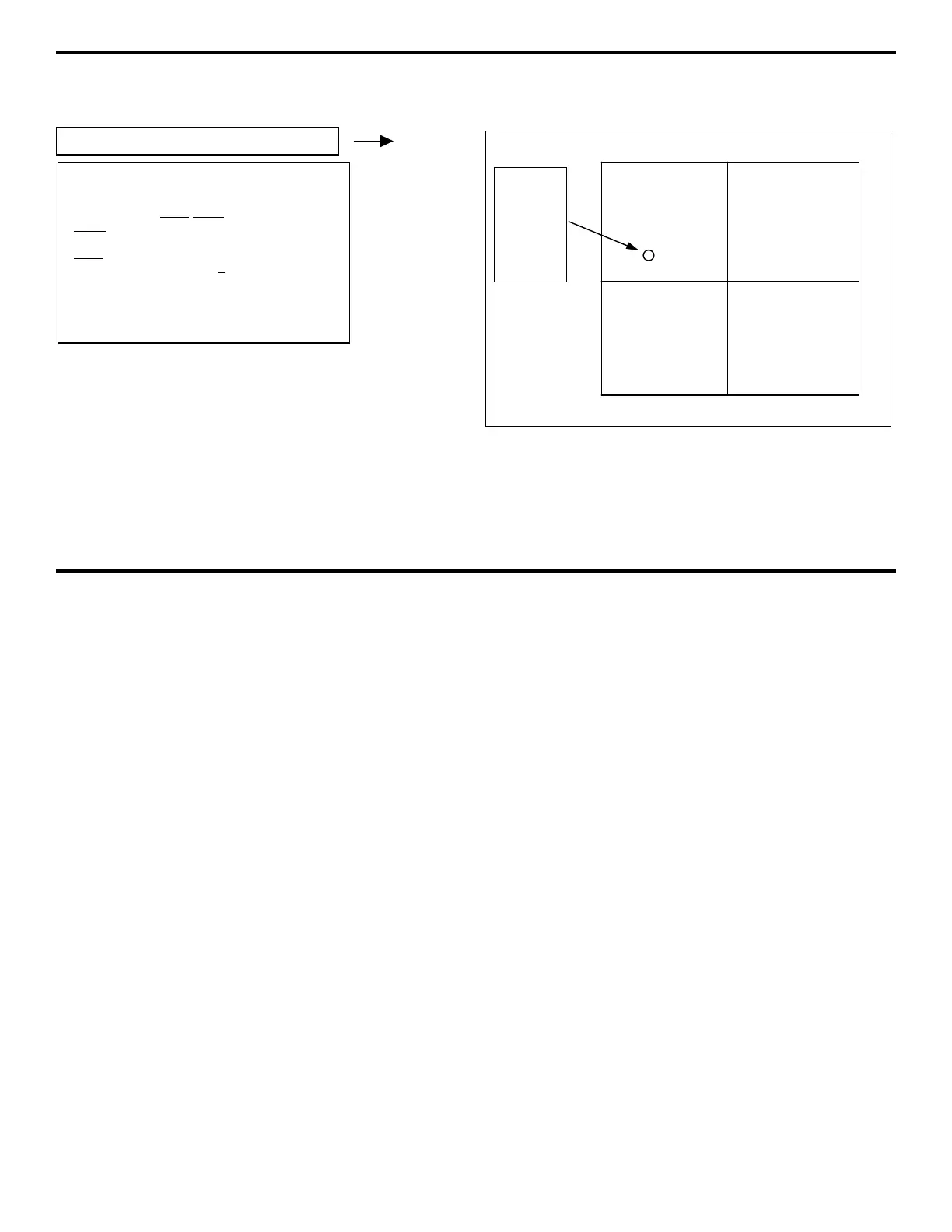

Example: TANK BOTTOM
PANEL NE
(Location)
PANEL NW
(Location)
PANEL SE
(Location)
PANEL SW
(Location)
ZA
1
25
ZA
1
25
1
25
1
25
ZAZA
Point J18
at
Location:
PANEL NW
BCDEFGHIJKLMNOPQRSTUVWXY
