2. Understanding the DMS 2 Keyboard, Menu Systems, and Displays
DMS 2 Operating Manual
Page 41

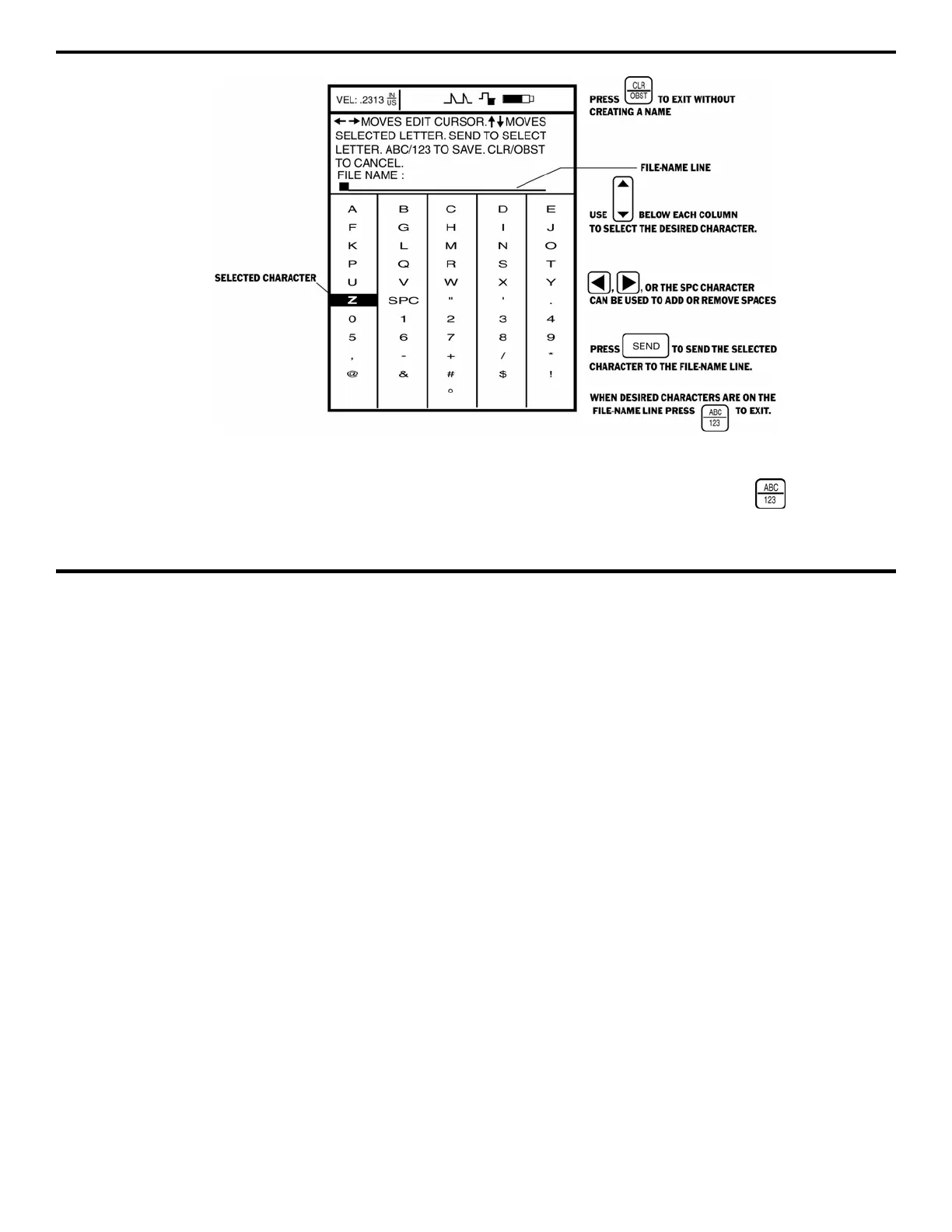

FIGURE 2-10—This is the V
irtual Keyboard display screen. The Keyboard is used to input
comments, file names, and other alphanumeric inputs. It’s accessed by pressing
.
51
53
