2.1.1.3 MFA Interface Details
Note Refer to Mini Field Agent (MFA) Important Product Information (GFK-2997) for version-specific interface details.

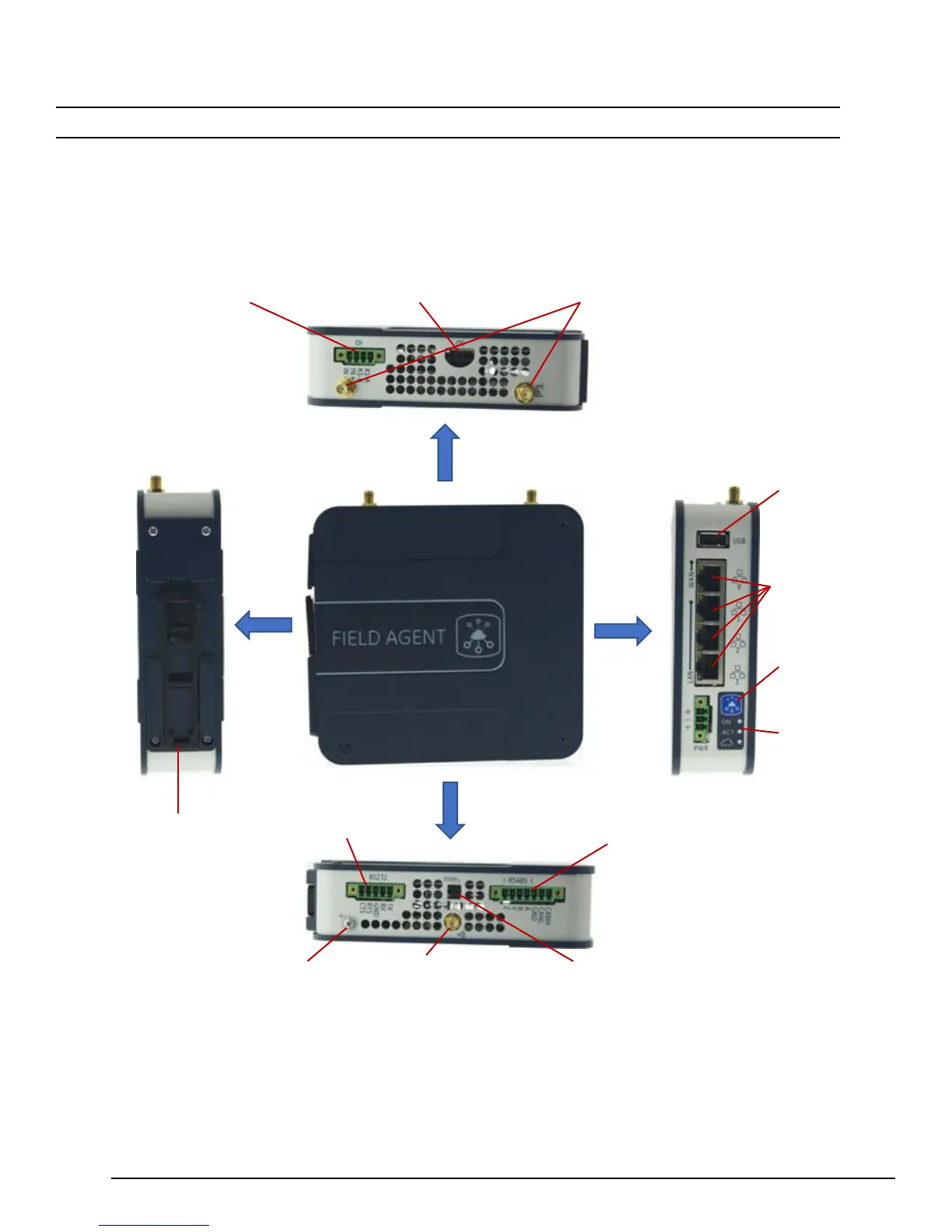

The following figure displays all four sides of the MFA module with details for connections.
Front View
Top View
Cellular Antenna
Connections
(on applicable models)
MicroSD slot
(for GE internal use only)
Local Field I/O
DIN Rail
Mounting Clip
RS-232
RS-485
Termination Jumper for CAN
(rightmost 2 contacts)
Wi-Fi Antenna
Connection
(on applicable models)
Ground
Connection
Rear View
Bottom View
USB
Interface
Ethernet
Interfaces
Push
Button
Status
LEDs
