GFK-2993F 35
For public disclosure

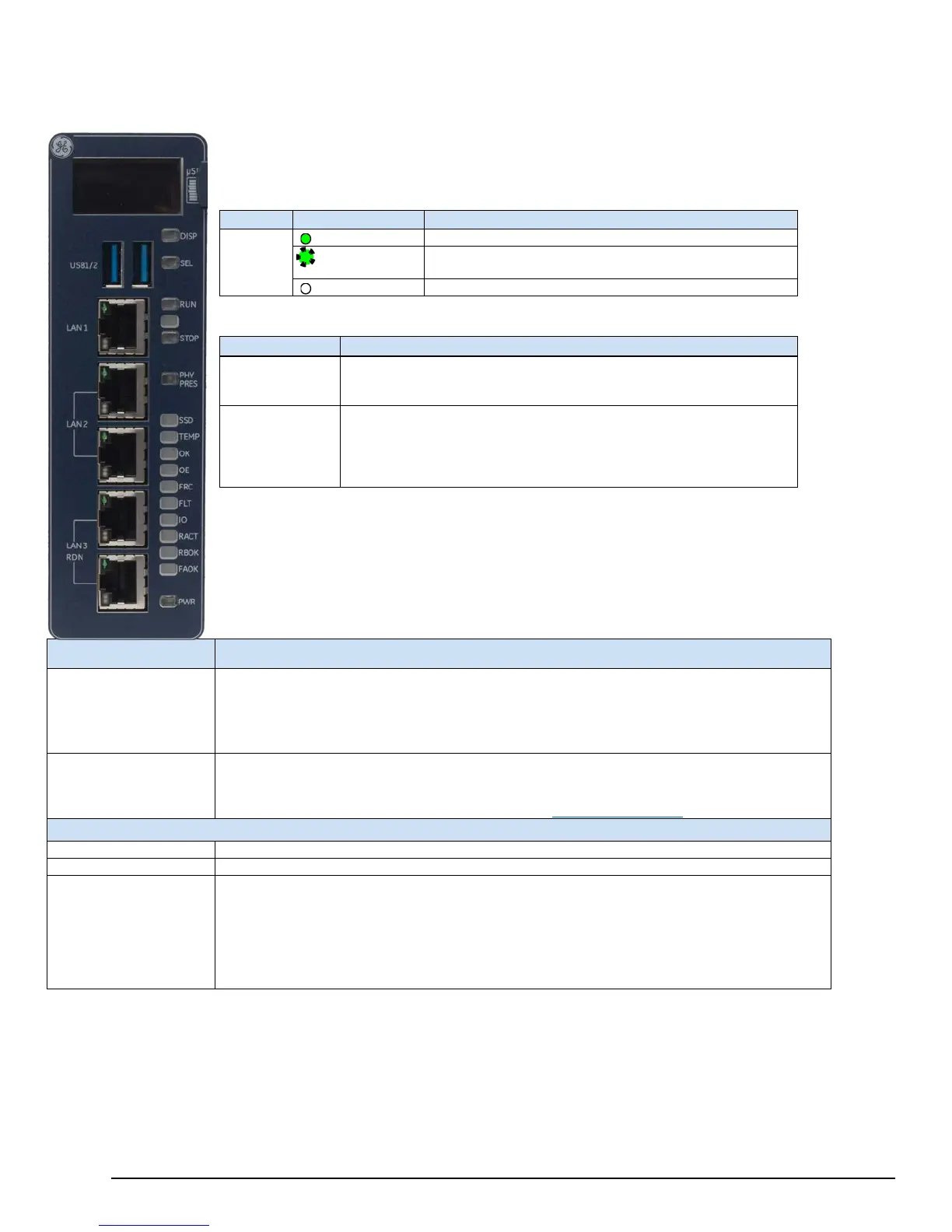

3.2.2 CPE400 EFA LED, Display, and Push Buttons
The CPE400 Hardware only contains one LED and a four-line display (manipulated by two push buttons)
that affect/reflect information about the EFA. The description of the Display contents below only covers
items related to the Field Agent.
Field Agent Status Indicators (LEDs)
LED
LED State
Operating State
FAOK
On Green
Field Agent Running and Connected to Cloud.
Blinking Green
Blink at 0.5 Hz: Field Agent Starting.
Blink at 1 Hz: Field Agent Running.
Off
Field Agent Off.
Display Navigation Push Buttons
Push Button
Function
DISP
Moves the cursor to the next item in the display, including moving to
the next page if more than one page exists for a given level in the
display hierarchy.
SEL
Executes the currently selected item in the display. This could cause
the display to navigate to another location in the hierarchy, or it could
cause a command to be executed if a command is currently selected.
Before a command is executed, the user is given the choice to select
OK or Cancel.
FA Settings Display Menu
Menu Item
Description
EFA Status
Shows the current state of the Field Agent, as follows:
Off: The Field Agent is Off.
Starting: The Field Agent is starting.
Not Connected: The Field Agent is Running, but not connected to the cloud.
Cloud Connected: The Field Agent is Running and connected to the cloud.
Network Config
Shows network interface information for the Field Agent, including IP Address, Subnet Mask, Gateway,
MAC Address, and IPv6 Address.
These settings are changed as described in the section, Configure the Network.
Commands Sub Menu
Config Mode
Enter Configuration Mode, enabling access to the Web Console for one hour.
FA Reboot
This will restart the Field Agent operating system and Predix machine without affecting the controller.
Factory Reset
This will reset the IP Address back to the default, and remove Predix Enrollment information from the
Field Agent. On the first boot following a factory reset, Predix Machine will generate cryptographic keys
used for communication.
It is Critical the Field Agent is not powered down during these operations to prevent corruption that may
require another factory reset to resolve. Please wait until the EFA Status is Not Connected (FAOK LED
blinking at 1Hz) before cycling power.
