GE P645

To Next Page

To Previous Page

2.5 VTS LOGIC

V01224

All Poles Dead

VTS I> Inhibit

Hardcoded threshold

I2>1 Current Set

Delta IA

Delta IB

Delta IC

Hardcoded threshold

Any Pole Dead

VTS Reset Mode

Manual

Auto

MCB/VTS

VTS Status

Indication

Blocking

VTS Acc Ind

VTS Slow Block

VTS Fast Block

VT Fail Alarm

Hardcoded threshold

Note: This diagram does not show all stages . Other stages follow similar principles.

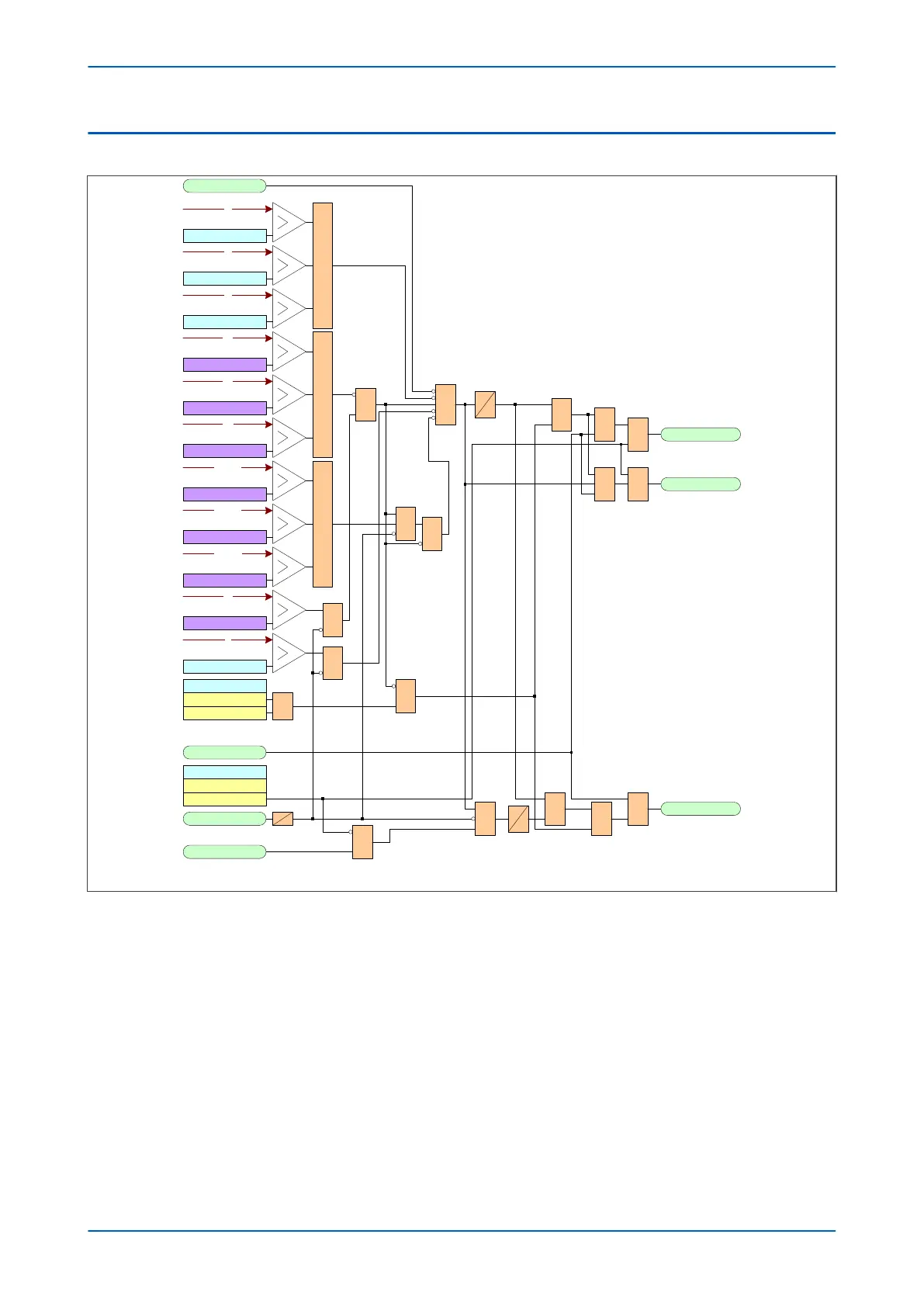

Figure 131: VTS logic (P642 with 2 single-phase VTs)

Chapter 14 - Supervision P64x

288 P64x-TM-EN-1.3
