The bottom compartment contains:
● A compar
tment for a 1/2 AA size backup battery (used to back up the real time clock and event, fault, and
disturbance records).
● A 9-pin female D-type front port for an EIA(RS)232 serial connection to a PC.
● A 25-pin female D-type parallel port for monitoring internal signals and downloading software and
language text.

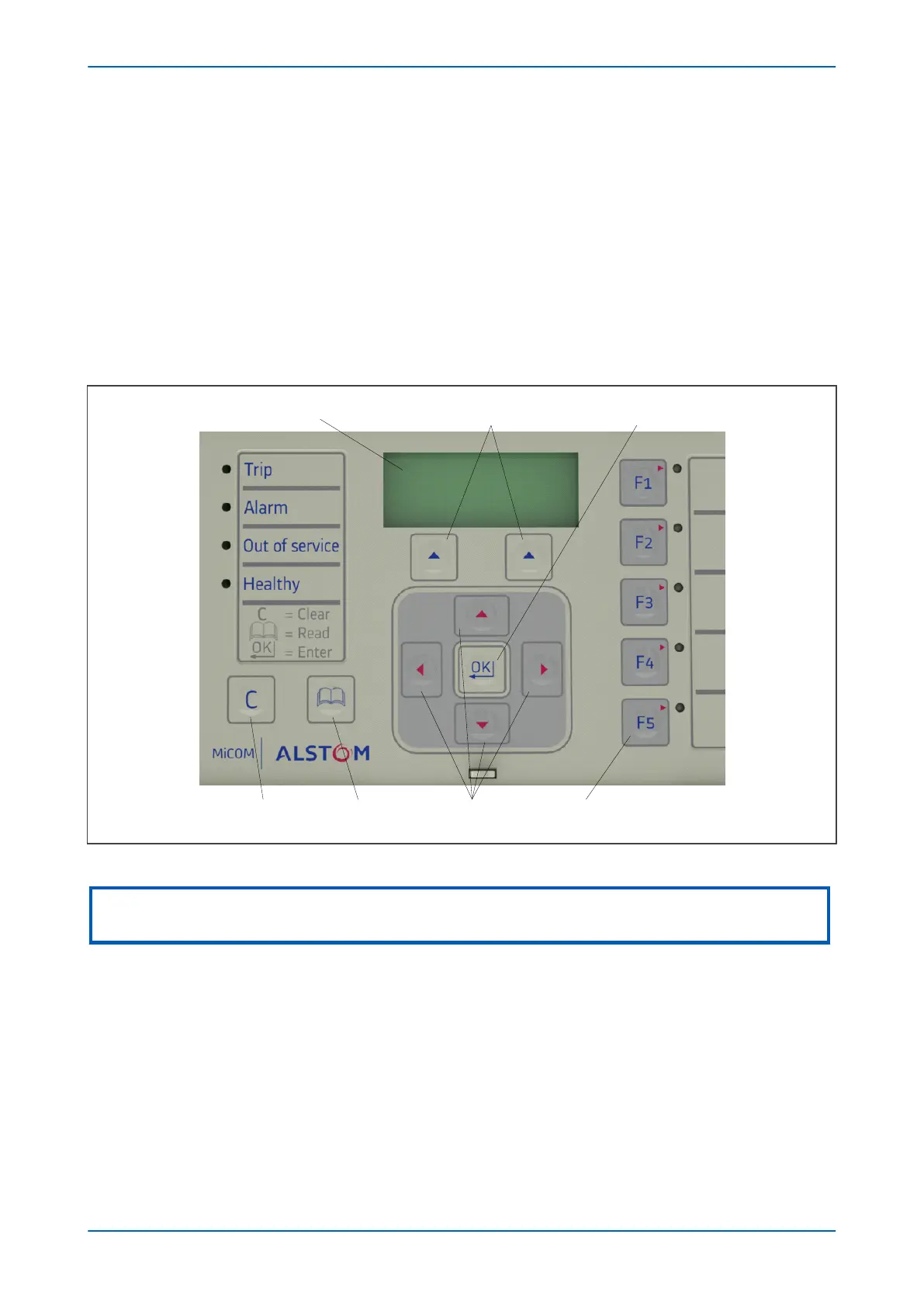

4.1.2 HMI PANEL
The keypad provides full access to the device functionality using a range of menu options. The information is
display
ed on the LCD.The LCD is a high resolution monochrome display with 16 characters by 3 lines and
controllable back light.
V00262
Clear key
F
or clearing the last
command
Read key
For viewing larger
blocks of text
Cursor keys
For navigating the
menus
Enter key
For executing the
chosen option
Hot keys
For scrolling through the default display
and for control of setting groups
Function keys
For executing user programmable
functions (not all models)
Monochrome LCD display
3 lines of 16 characters displays
selected option
Figure 6: HMI panel
Not
e:
As the LCD display has a resolution of 16 characters by 3 lines, some of the information is in a condensed mnemonic form.
4.1.3 FRONT SERIAL PORT (SK1)
The front serial port is a 9-pin female D-type connector, providing RS232 serial data communication. It is situated
under the bottom hinged cov
er, and is used to communicate with a locally connected PC. It is used to transfer
settings data between the PC and the IED.
The port is intended for temporary connection during testing, installation and commissioning. It is not intended to
be used for permanent SCADA communications. This port supports the Courier communication protocol only.
Courier is a proprietary communication protocol to allow communication with a range of protection equipment,
and between the device and the Windows-based support software package.
This port can be considered as a DCE (Data Communication Equipment) port, so you can connect this port device
to a PC with an EIA(RS)232 serial cable up to 15 m in length.
