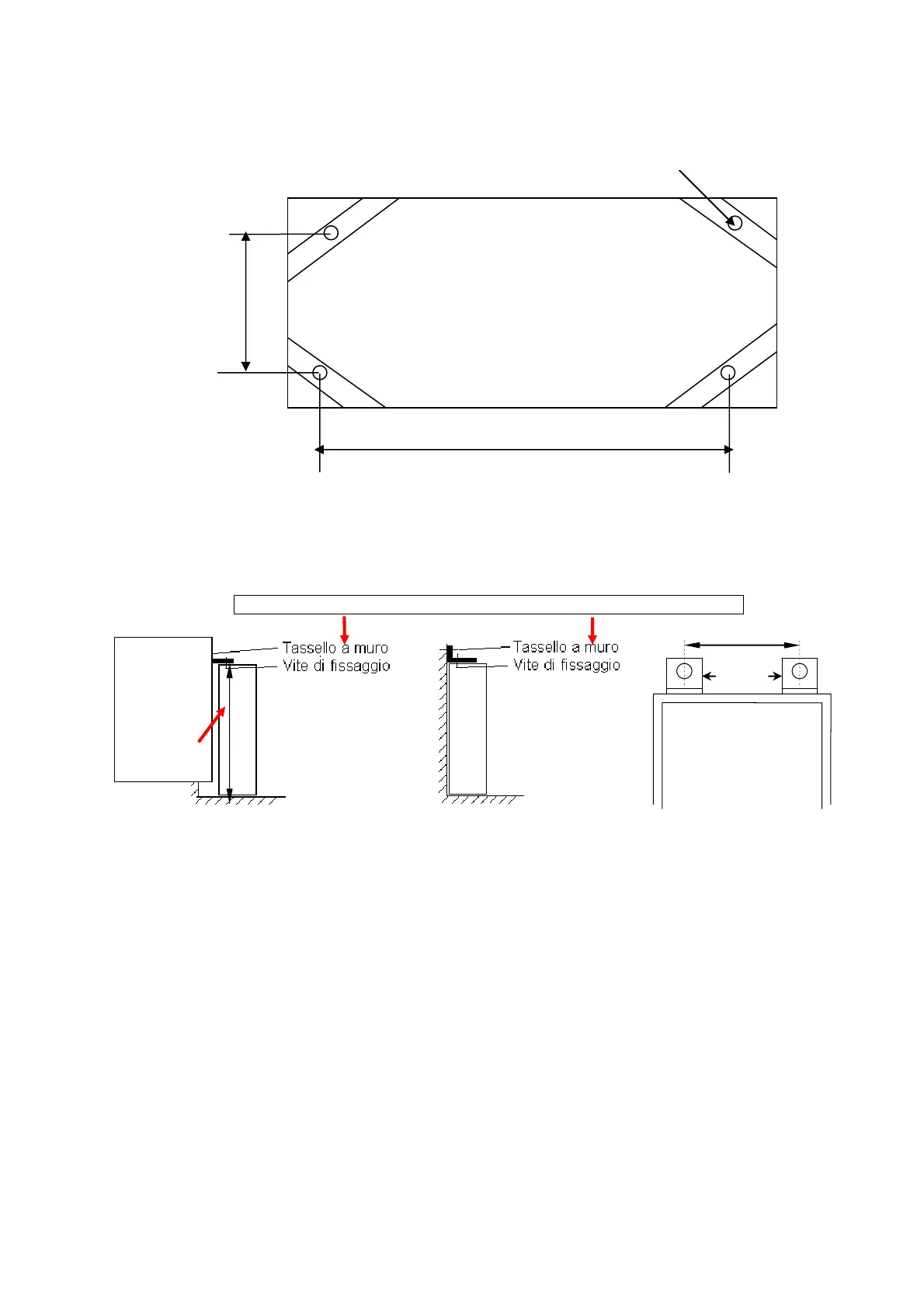

Cabinet Anchoring Dimensions
Power cabinet fixed to the wall by anchors and bolts
400 m
m
Table cabinet
Front view
Brackets
fixation to the wall
Required hardware for wall mounting (not provided)
Anchor diameter: 12mm
Anchor length: 50mm
Bolt diameter: 6mm
Wall loading requirement: 50kg per bolt
487mm
227mm
φ
13mm
1978 mm
from the
floor to the
holes
brackets
support
