GE MEDICAL SYSTEMS PRECISION RXI SYSTEM PRE-INSTALLATION
D
IRECTION 5123449-100, REVISION 12
_____________________________________________________________________________________________
Page 68 / 111 June 2009

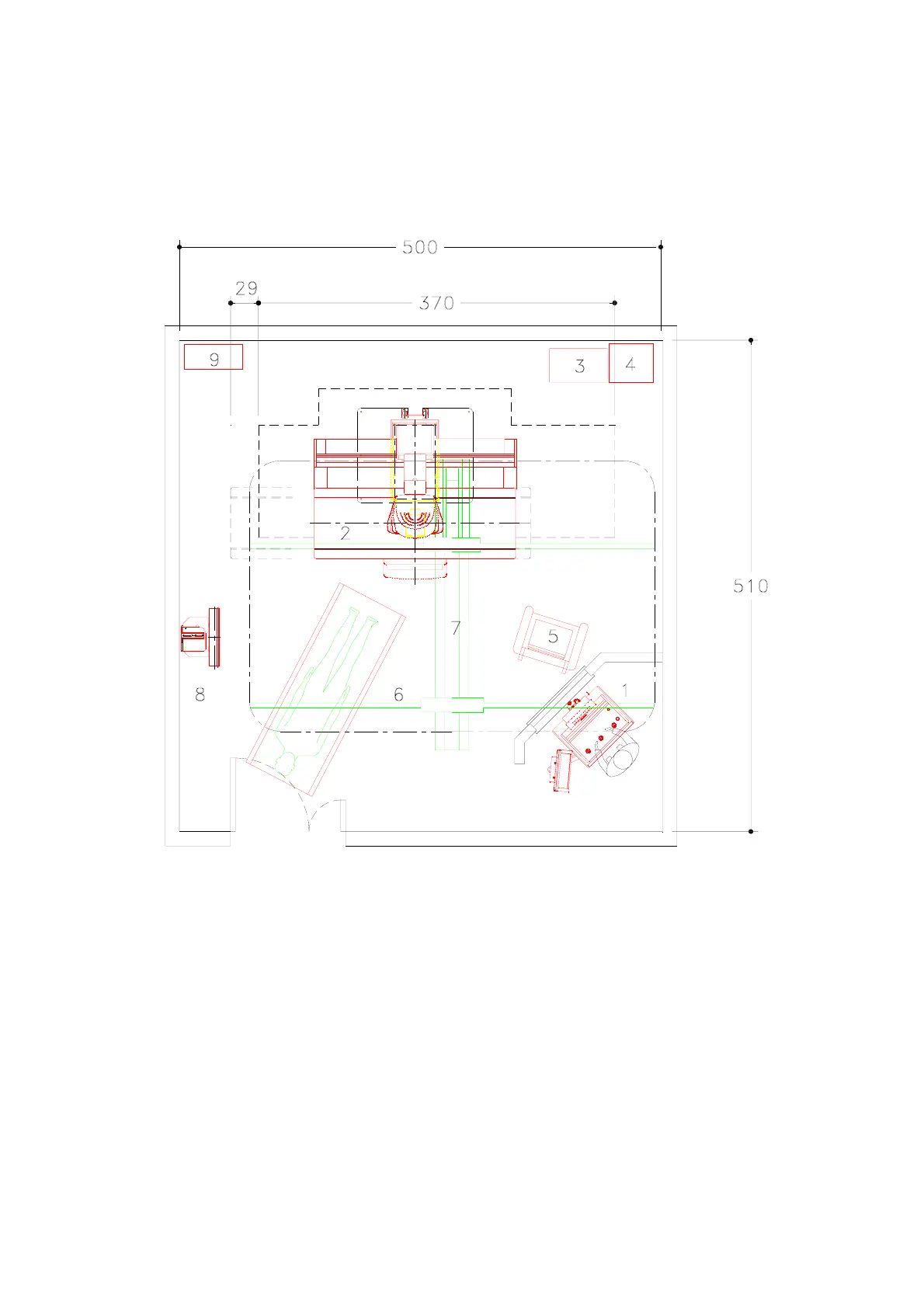

7.2. Typical Room Layout
The following example is referred to a room with small dimensions.
room dimensions (in cm)
This dimension is referred to the non elevating table version.
1 Integrated Console
2 Table
3 Positioner Cabinet
4 Generator
5 Monitor Cart
6 Suspension Rails
7 Suspension Bridge
8 Wallstand
9 Power Distribution Unit
