5.2.8. Monitor Suspension

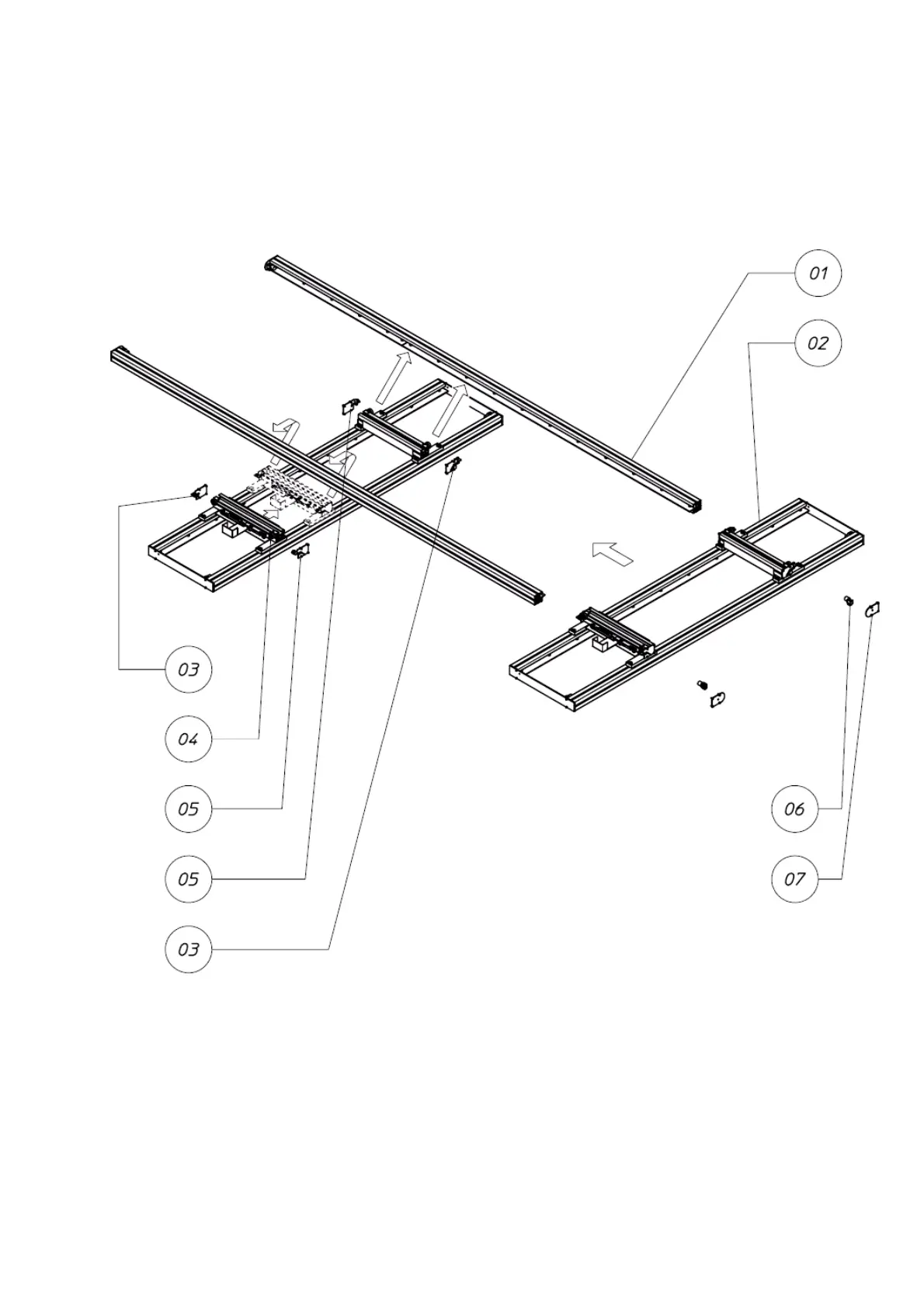

5.2.8.1. Ceiling suspension including bridge and carriage
• Monitor suspension is mounted on the same bridge and carriage as used with the Overhead Tube
Suspension (make reference to 5.2.11 page 52).
• Width of single monitor suspension is 460 mm.
Pos. Description
01 LONGITUDINAL RAILS
02 TRANSVERSAL BRIDGE
03 RIGHT BEARING SUPPORT
04 GUIDE BRIDGE TIE
05 LEFT BEARING SUPPORT
06 BUMPERS
07 RAIL HEAD
