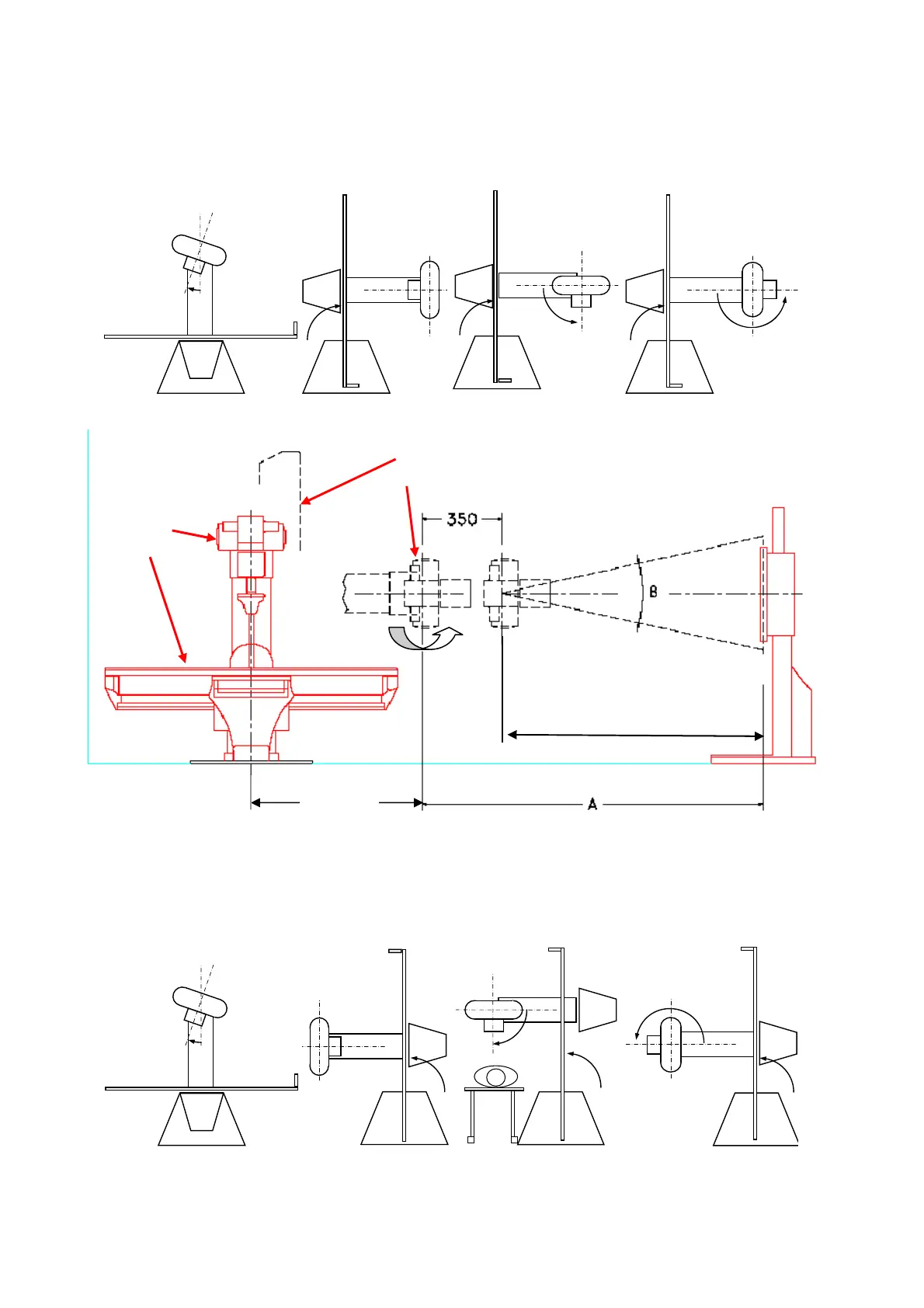

5.2.15. Wallstand and Table Layout
It is possible to manually rotate the tube to −90° / −72° / −18° / +18° / + 72° / +90° / +180° position.
−18°
0°
+90°
+90°
+90°
+180°
+90°
-18° 0° +90° +180°
For table collimator without iris, β = 27º
For table collimator with iris, β = 24.3º
The customer preference for available SID range should be used to determine the actual value for A.
WARNING: reverse installation (for elevating table only)
−18°
0°
−90°
−90°
−90°
+180°
−90°
-18° 0° +90° +180°
B
1442.5mm
180°
Table +90°
Tube +180°
Tube 0°
Table 0°
