GE MEDICAL SYSTEMS PRECISION RXI SYSTEM PRE-INSTALLATION
D
IRECTION 5123449-100, REVISION 12
_____________________________________________________________________________________________
Page 36 / 111 June 2009

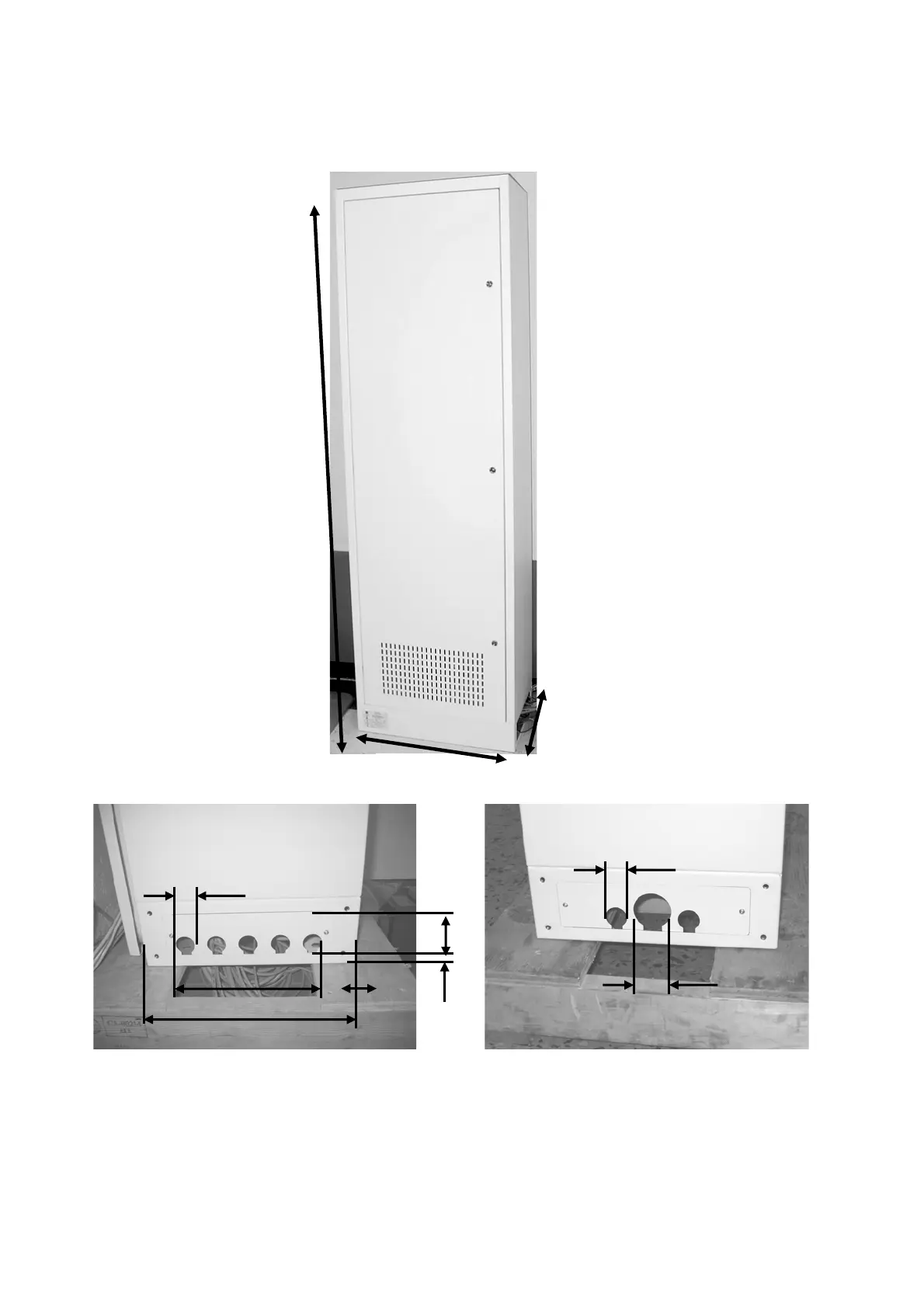

5.2.2. Positioner Cabinet
All dimensions in mm
Cables can be routed into the cabinet from either side, back or directly into the button of the cabinet. Both side
openings and the back opening are the same size. A different panel – the two shown above as well as a third that is
solid, covers each opening. This allows the installer to choose which panel they prefer to use on opening where the
cables are routed.
30
50
20
230
340
55
30
70
340mm
600mm
1960mm
