GE MEDICAL SYSTEMS PRECISION RXI SYSTEM PRE-INSTALLATION
D
IRECTION 5123449-100, REVISION 12
_____________________________________________________________________________________________
June 2009 Page 81 / 111
2.) Step Two – Survey the Route
Record all loading capacities, corridor widths, door openings, turning radii, flooring materials, elevator sizes,
obstructions and so on for reference.
3.) Step Three – Check the Route
Verify equipment can actually be transported via the route determined in step 1.
9.3.1. Table Delivery Route Specifics

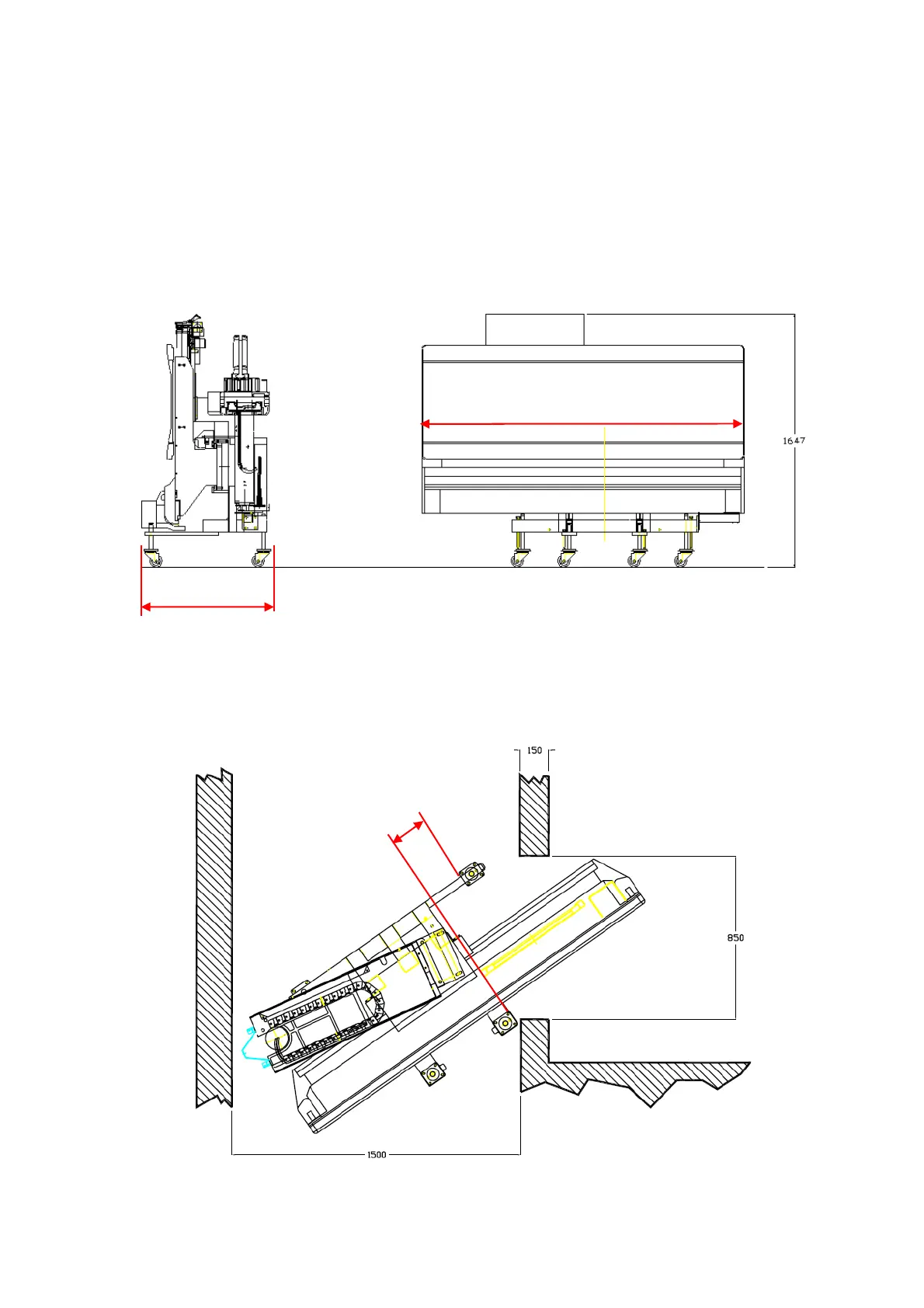

Below is shown the path required to pass the table through an 80cm/32inch doorway.
Positioner on jacks (dimension in mm)
Getting the table package in its lowest position by using the threated rods. We can reduce the height to approx. 1,54
m. But if the wheels are in lowest position we cannot rotate the wheels, means we cannot change the direction.
By removing the Wheels we can again reduce by 10 cm: so height will be 1,45 m.
minimum corridor and door recommended dimensions (mm)
With a 200 cm corridor and with a 15 cm maximum wall thickness, a 80 cm minimum door can be crossed.
2100
20 cm
840 -0 +10
