GE Profile DPVH890EJ Technical Service Guide

– 10 –
(Continued Next Page)
J4
J7
J1
J2
J11
J3
J17
J48
J10
J14
J13
J8 and J9
J5

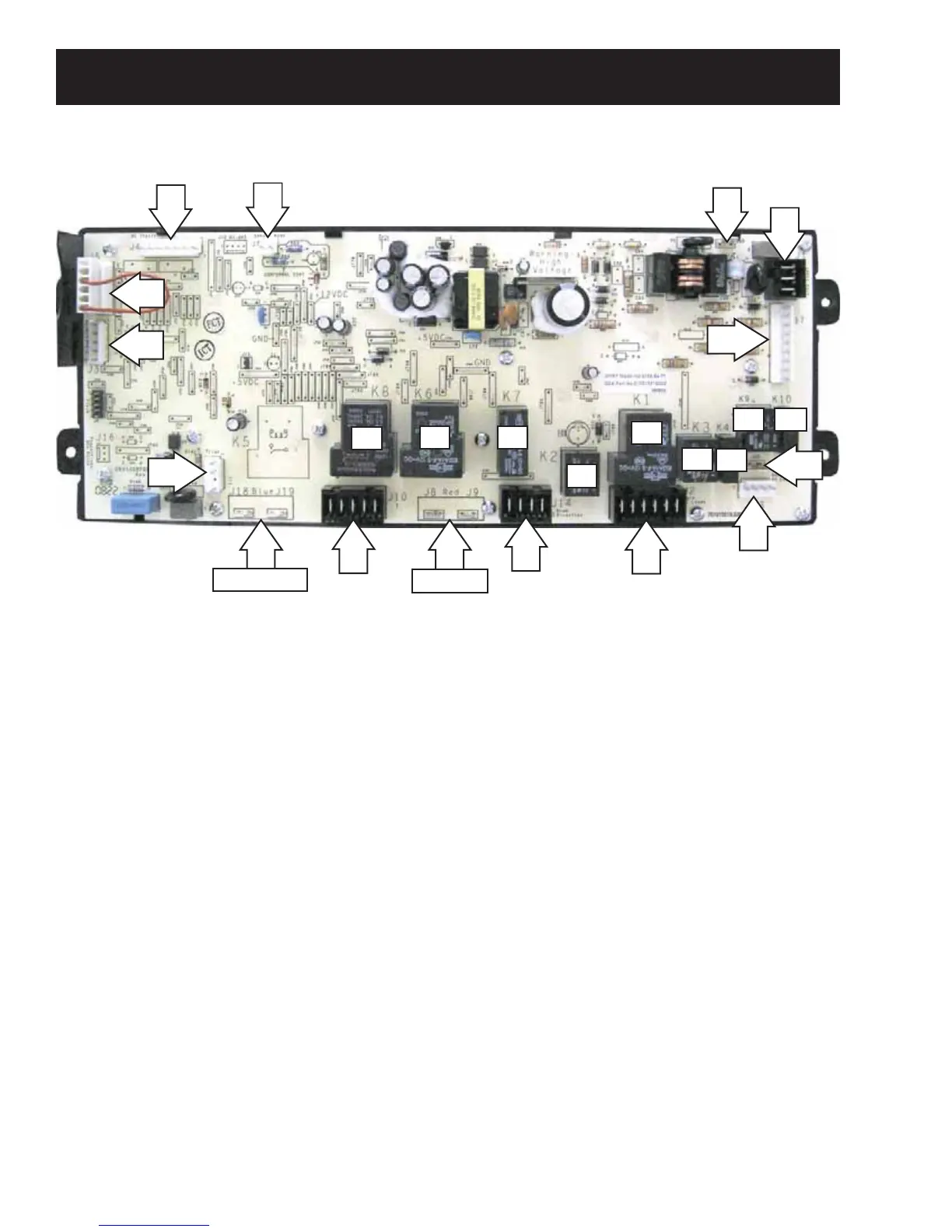

Power Board Connector Locator View
K1 - Drum Motor Relay
K2 - Blower Motor Relay
K3 - Gas Ignitor Shut-Off and 2nd Stage Relay
K4 - Half-Power 1st Stage Relay (Gas)
K6 - Rack Dry Selection Relay
K7 - Drum Motor Reversing Relay
K8 - Rack Dry Circuit Mode Relay
K9 - Steam Relay
K10 - Lamp Relay
J 1 - L1 and Neutral Supply to Power Board
J2 - Drum Motor
J3 - Washer/Dryer Communication Cable
J4 - 5 VDC, Hall Effect Input, Logic Ground, Outlet
Control Thermistor, Inlet Control Thermistor
J5 - Model Selector
J7 - Sensor Rods
J8 and J9 - Rack Dry Circuit Selection
J10 - Rack Dry Mode Selection
J11 - Triac
J13 - Drum Lamp, Half Power (Gas)
J14 - Drum Direction
J17 -
AC Inputs from Drum Motor and Power Board
J18 and J19 - Tumble Hold-Up (Gas)
J20 - Steam Generator and Interlock Relay
J48 - Ground
J18 and J19
K1
K2
K3
K4
K6 K7
K8
K10K9
J20
