10-2-2 Patient Hand Grips
The patient hand grip installation is as same as compression band clamp.
10-2-3 Adjusting
1. Depress the lock, then release clamp or grip.
2. Position the clamp or grip, then depress the handle.
2. Release two safety screws.
4. Use M2.5 Alien key adjust two adapting screws until clamp is firmly attached
to table top.
5. Fasten safety screws.

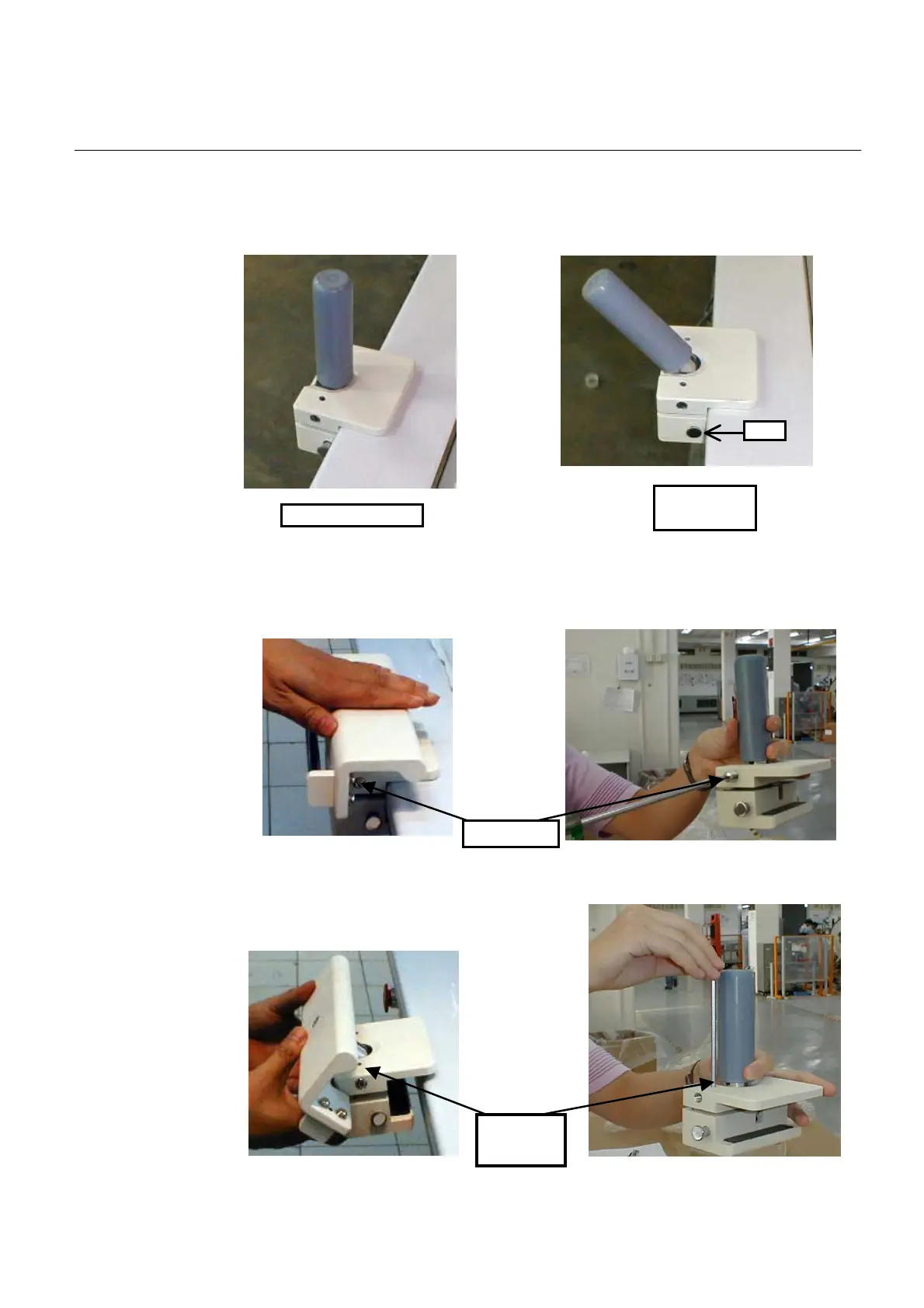

Release the
Hand Grip
Lock the Hand Grip
Lock
Safety screw
A
dapting
screw
