PROTEUS XR/a
GE MEDICAL SYSTEMS Operator Manual
REV 11 DIRECTION 2259724-100
2-4
2-10 System Labelling

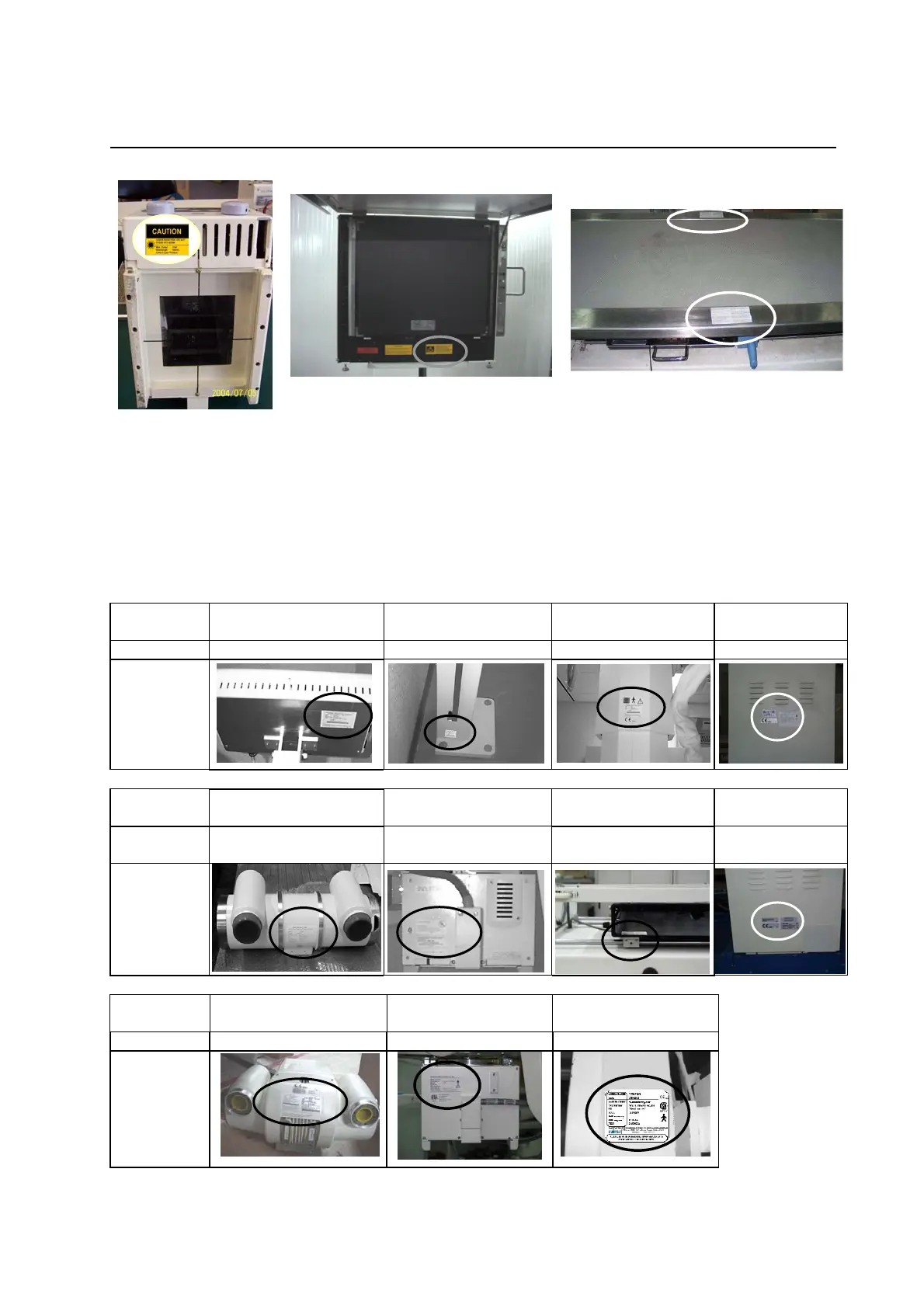

The labels for the Proteus XR/a system are found on the side panel of
the Proteus XR/a cabinet. This label includes the CE mark for the entire
system. See the following sketch.
For other name plate location, see table 2-2.
Table 2-2
PROTEUS XR/a SYSTEM IDENTIFICATION AND COMPLIANCE PLATES
DESIGNATION
System console Wall Stand OTS radiographic
suspension (2/3 m)
Cabinet
PART NUMBER
2259976 2260354 S3918MD/S3918K 2259973
LOCATION of
Name Plate
DESIGNATION
X-ray Tube (RAD-14) Proteus XR/a
Automatic Collimator
Bucky (L/H) Jedi Generator
PART NUMBER
2259981 2259298-54 2189553 or
5159516-1
2268970 or
2244165-2
LOCATION of
Name Plate
DESIGNATION
X-ray Tube (MX 100) Eclipse Proteus
Collimator
SG120 Wall Stand
PART NUMBER
D2301R 2379827 2402562
LOCATION of
Name Plate
FOR TRAINING PURPOSES ONLY!
