WHEN MOVING THE TABLE TOP, CARE SHOULD BE TAKEN
WHERE THE OPERATOR’S AND PATIENT’S FINGERS ARE
PLACED. DO NOT ATTEMPT TO MOVE THE TABLETOP WITHOUT
USING THE CONTROL PEDALS TO RELEASE THE LONGITUDINAL
AND TRANSVERSE MOVEMENT LOCKS.
TO AVOID INJURY TO FINGERS AND HANDS OF PATIENT AND
OPERATOR CAUSED BY TABLE TOP MOVEMENT, HANDS MUST
BE KEPT AWAY FROM TABLE TOP EDGES AT ALL TIMES.
6-4 Cassette Tray Operation
The Bucky is equipped with a cassette tray which is located in the Bucky
tray slot. It accepts cassette sizes ranging from 12.70cmx17.78cm
(5”x7”) through 14”x17” (35.56cmx43.18cm).
6-4-1 Introduction
See Illustration 6-2 and Table 6-1.

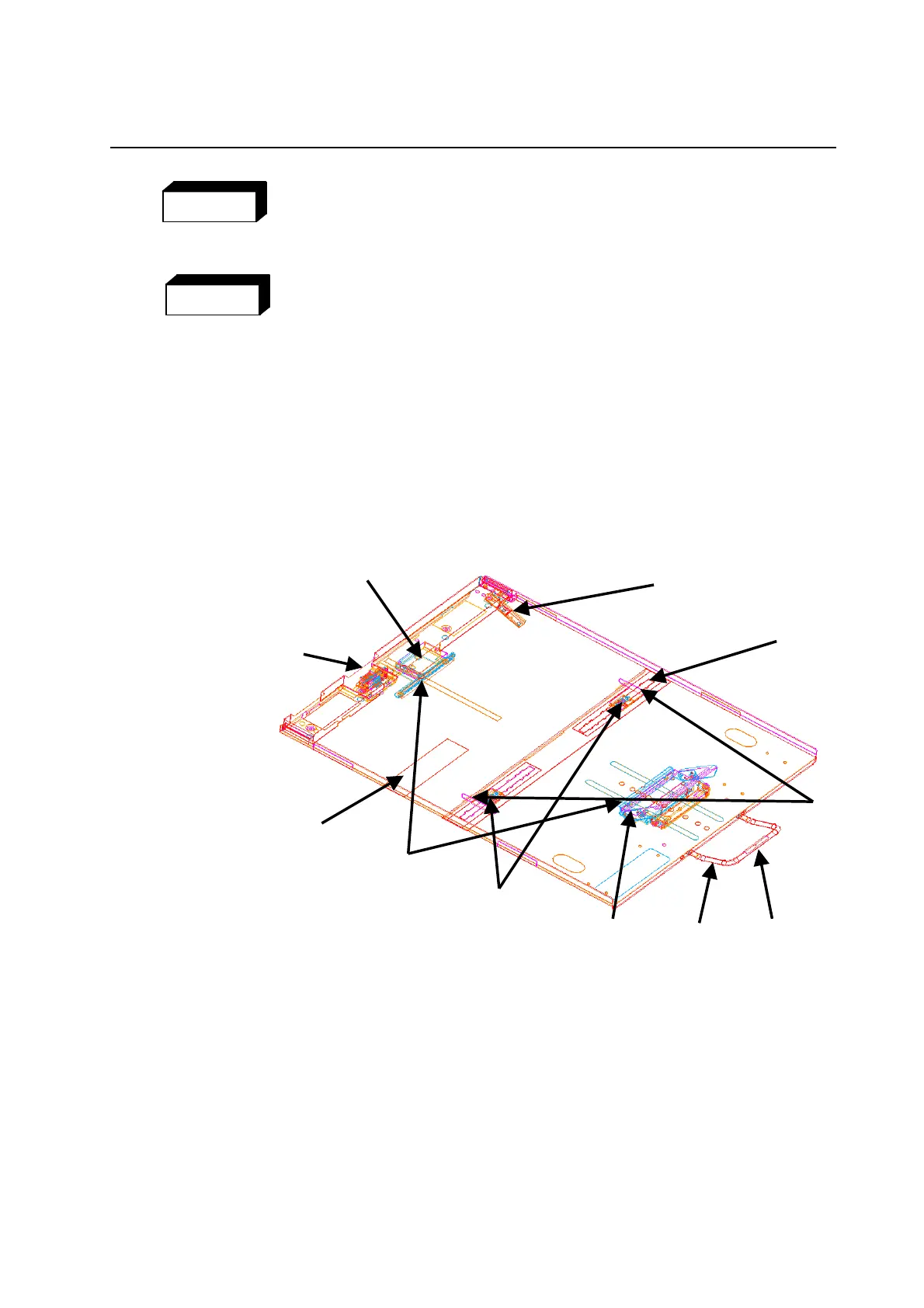

ILLUSTRATION 6-2
CASSETTE TRAY (TABLE OR VERTICAL WALL STAND) OPERATOR CONTROLS
WARNING
10
11
4
1
2 3
8
7
5
6
WARNING
FOR TRAINING PURPOSES ONLY!
