PROTEUS XR/a
GE MEDICAL SYSTEMS Operator Manual
REV 11 DIRECTION 2259724-100
6-7
TABLE 6-1
CASSETTE TRAY OPERATOR CONTROLS AND INDICATORS
Item Title
Type
Description
1 Cassette Grips Control Grips the cassette in transverse position.
Front grip controls rear grip.
2 Tray Handle Control Provides ability to remove or insert tray
into Film Cabinet.
3 Alignment Notch Indicator Indicates the center of film for alignment
with collimator centering light.
4 Grip Lock Control Locks cassette into transverse grips.
5 Carrier frames Control Aid in centering the cassette in a vertical
Bucky.
6 Stopper Control Push the stopper to move the Carrier
frame
7 Centering Scale Indicator Centers the cassette right or left through
visual alignment.
8 Tray Stop Release Control Release tray stop so that you can remove
the tray from the Bucky
9 Cassette In Place
Switch
Control Provides access for cassette removal.
10 Amphenol
Connector
Commu
nicator
Deliver message from cassette size
sensor.
11 Cassette Size
Sensor
General Auto detect cassette size.
6-4-2 Cassette Loading

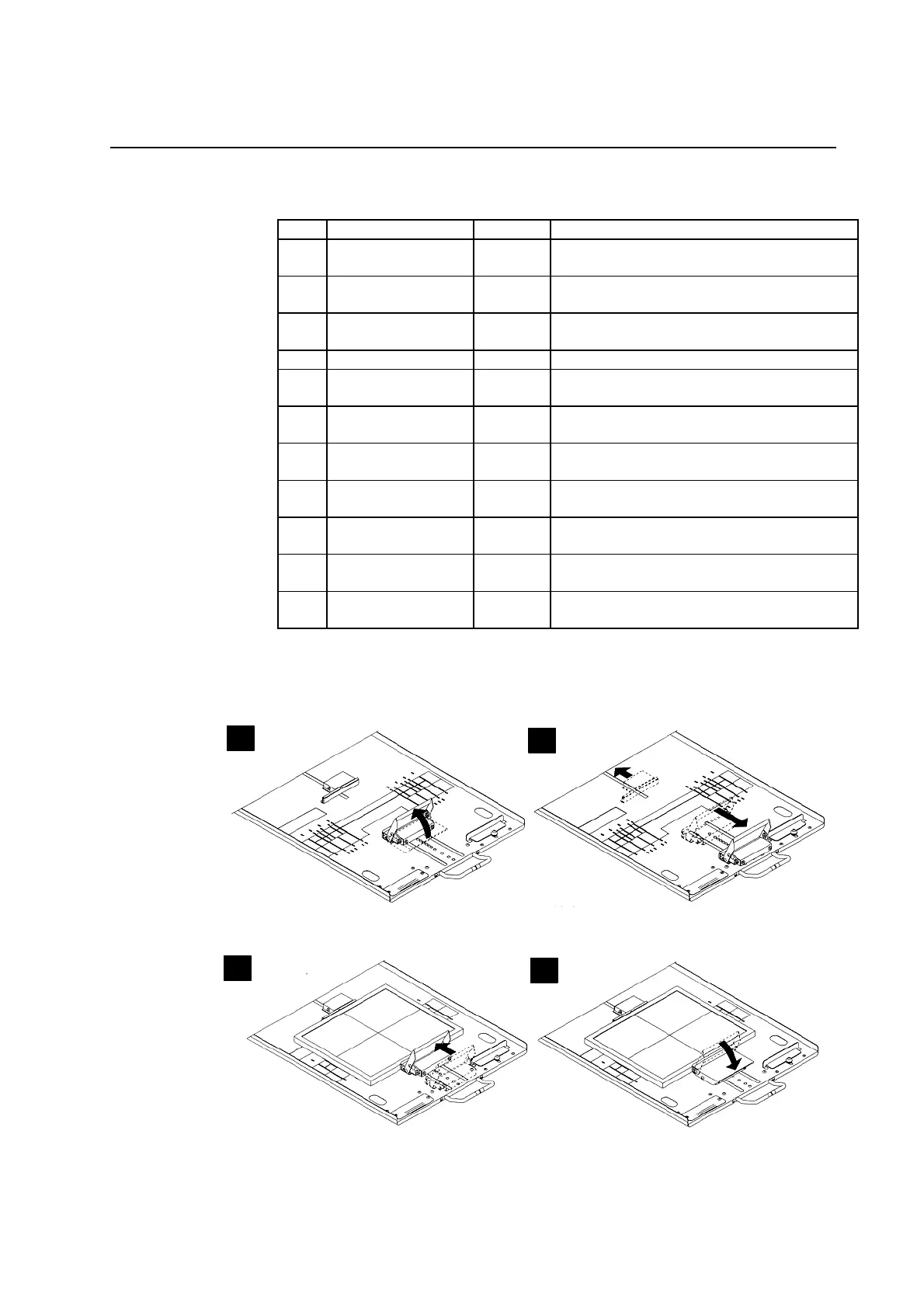

ILLUSTRATION 6-3
LOADING CASSETTES INTO CASSETTE TRAY
A
B
C
D
For Table cassette loading, move Table top fully backwards.
1. To insert a cassette, pull the tray out of the Bucky to the tray stop.
2. Lift the clamping lock handle to unlock it (A).
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
