PROTEUS XR/a
GE MEDICAL SYSTEMS Operator Manual
REV 11 DIRECTION 2259724-100
9-5
9-4-2 Cassette Loading
The SG120 is equipped with a cassette tray, suitable for all standard cassette
sizes, that is manually inserted in the bucky assembly.
Note: It’s a two-hand operation cassette tray.
Note: The SG120 is LEFT configured for cassette loading but his configuration
can be changed if needed. See Service Manual for details on LEFT to RIGHT
configuration change.

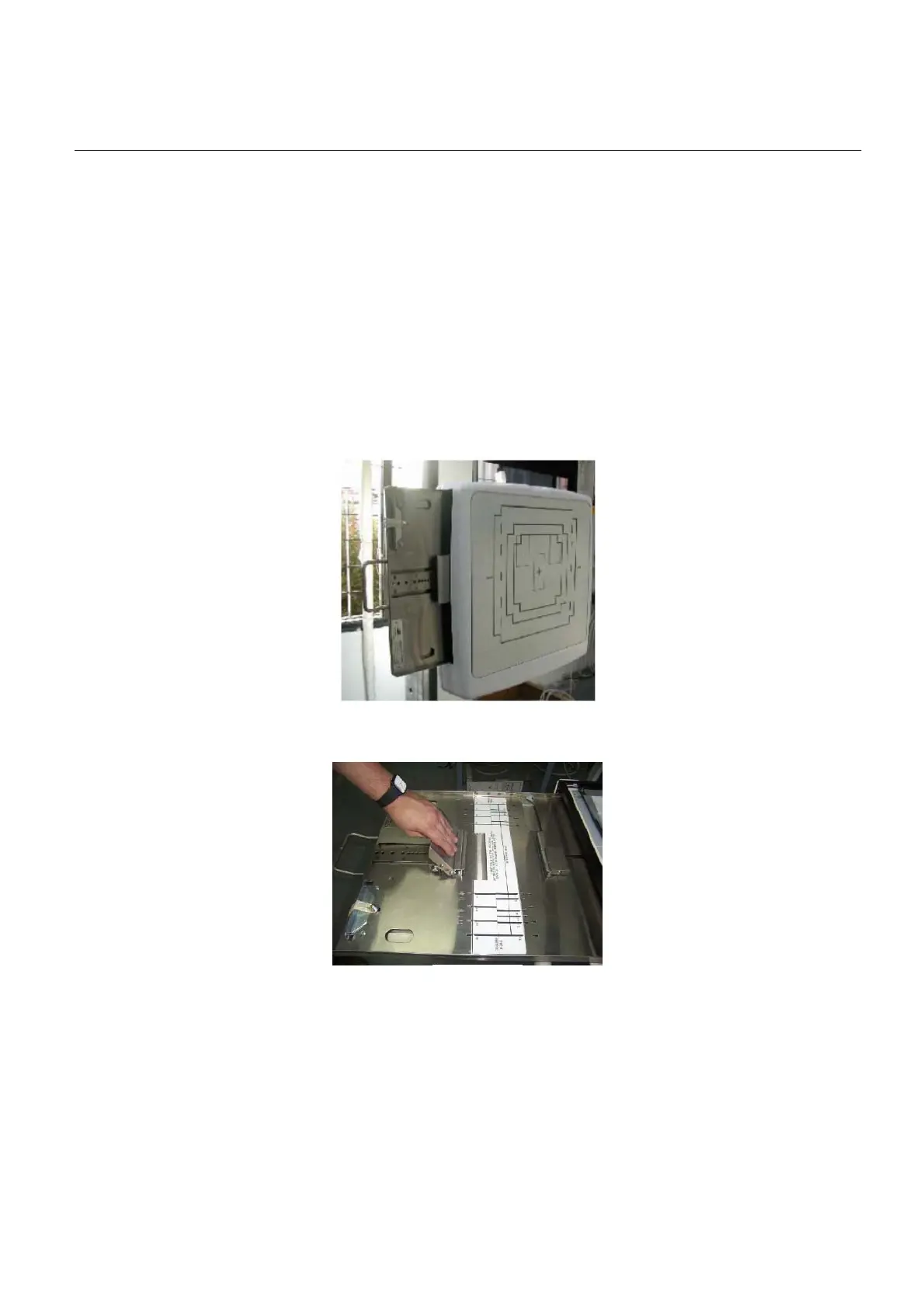

Procedure
1. Extract the cassette tray pulling by its handle.
2. Open cassette-clamp locking assembly. Spread out and separate the
clamps.
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
