9-4-8 Bucky Angulation
The SG120 bucky assembly can be angulated in a range that varies from –20º to
90º. The bucky in locked means of the electro-mechanical detents located in the
bucky support assembly. The angulation movement is left free when activating
one of the pushbuttons located behind the bucky support.
Procedure
1. Press one of pushbuttons located behind the bucky support.
2. Keeping the pushbutton pressed, angulate the bucky to the desired position.

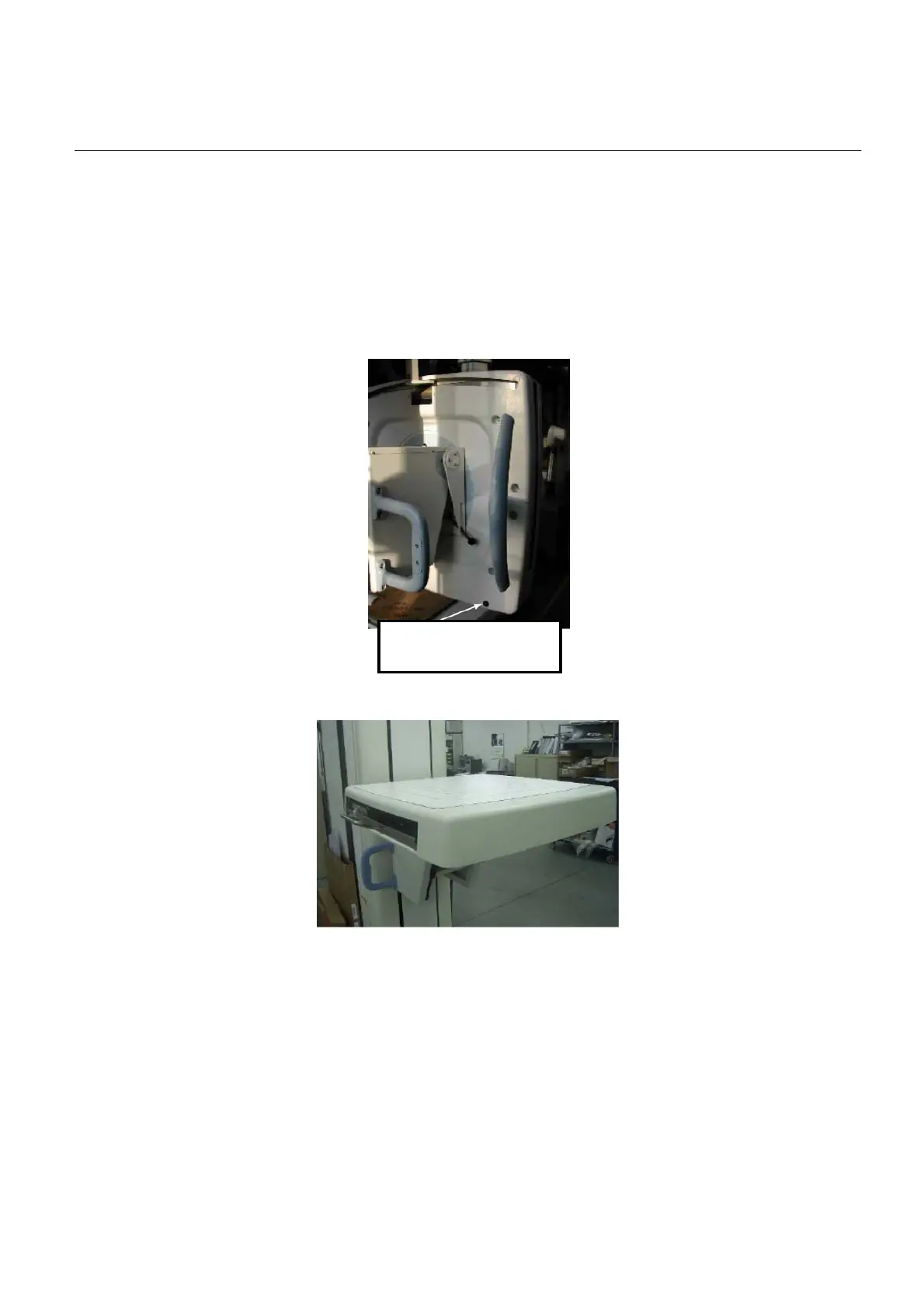

Angulated Bucky (90
o
position)
ngulation pushbuttons
(one on each side)
