System Setup
3-42 Vivid E80/E90/E95 – Service Manual
GC091052
Rev. 3
Select TCP/IP Screen

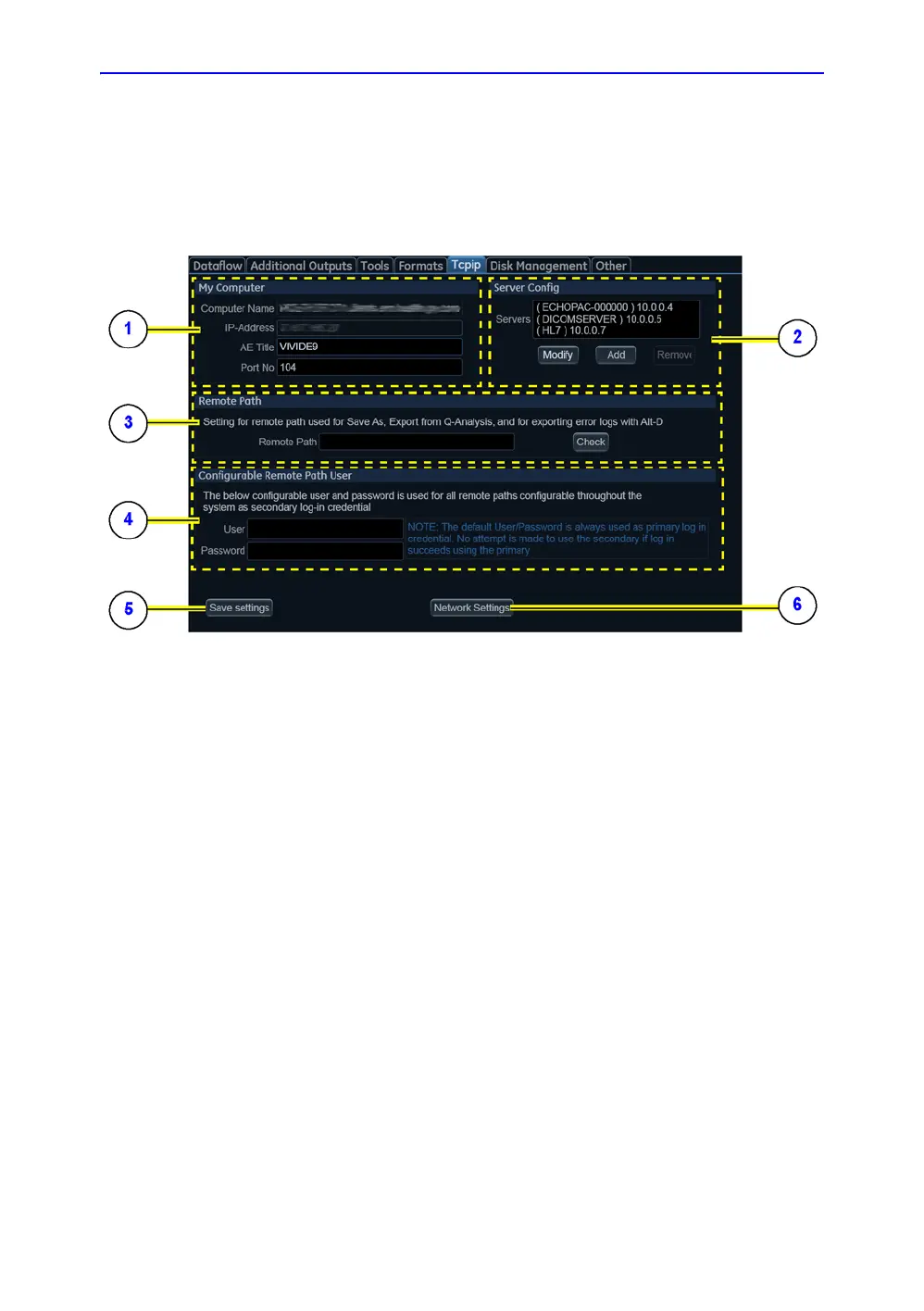

Figure 3-9. TCP/IP Overview screen for Vivid E80/E90/E95
1. Press Config (F2) and log on as adm.
2. If not already selected, select Connectivity from the bottom row of “buttons” on the screen.
3. Select the TCP/IP TAB (named Tcpip).
The resulting screen gives you an overview of many of the network settings for Vivid E80/E90/E95.
1. My Computer:
• Computer Name:
For Vivid E80/E90/E95, this name is on the
form: VIVIDX-00NNNN, where “00NNNN” is a
number (NNNN is the Ultrasound system’s
serial number).
• AE Title:
VIVIDEx (where ‘x’ is the model number)
• Port No:
Default port number: 104
2. Server Config:
• Servers:
List of servers
• Buttons:
Use the buttons to Add, Modify, or Remove
servers.
3. Remote Path
Used for Save As, Export from Q-Analysis, and
exporting Error Logs with Alt-D.
4. Configurable Remote Path User:
Add Secondary Log-in Credential.
5. Save Settings:
Select Save Settings to archive any changes
you have done to the TCP/IP settings.
6. Network Settings:
Use Network Settings if you need to change
Vivid E80/E90/E95’s IP settings or turn DHCP
on or off.
