Functional checks
Vivid E80/E90/E95 – Service Manual 4-31
GC091052 Rev. 3
Cineloop Check
Introduction
A cineloop is a sequence of images recorded over a certain time
frame. When using ECG the time frame can be adjusted to
cover one or more heart cycles. When frozen, the Ultrasound
system automatically displays the cineloop boundary markers
on either side of the last detected heart cycle

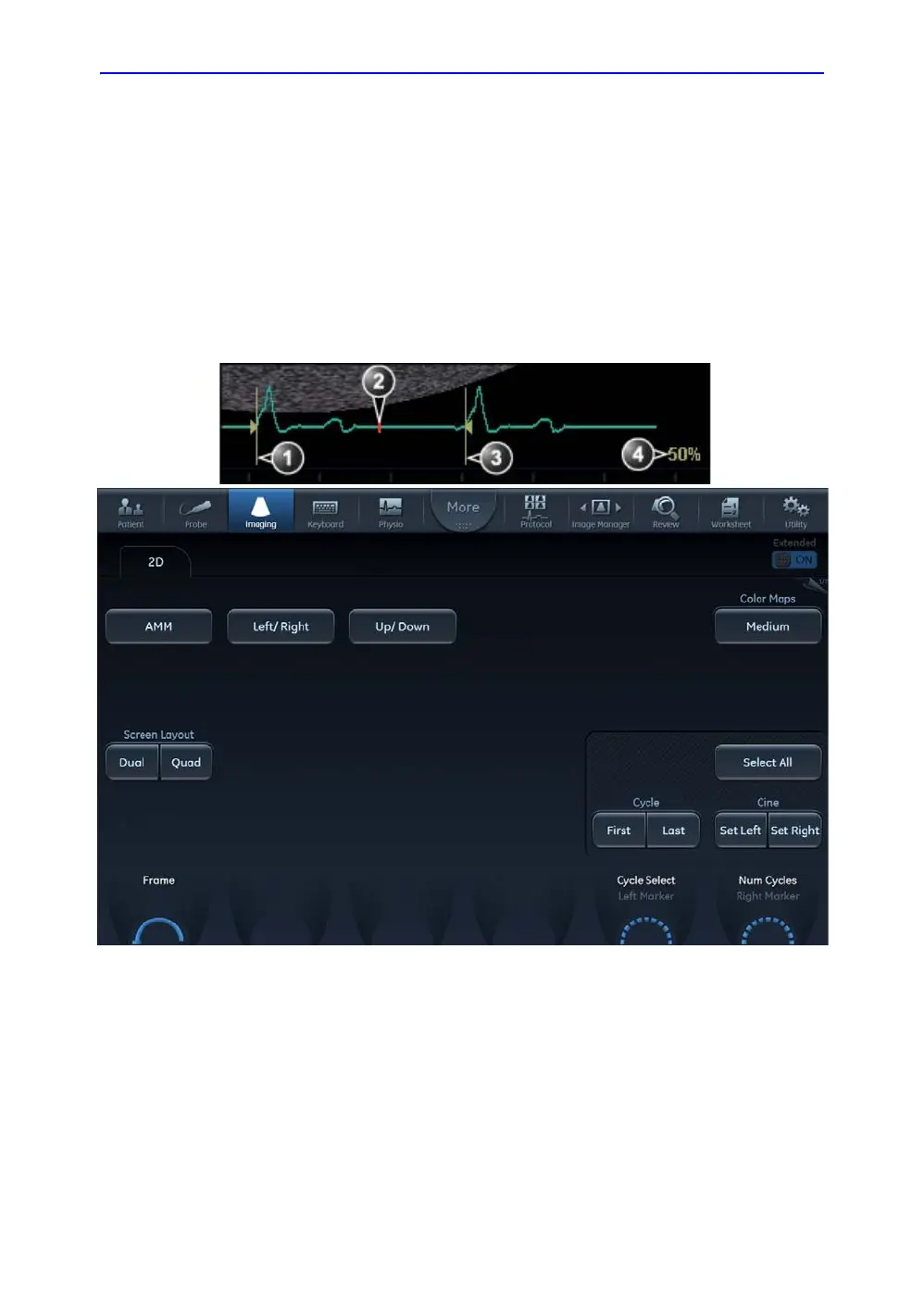

Figure 4-17. Cineloop display
Preparation
1. Connect one of the probes to the Ultrasound system.
1. Left marker (cineloop start)
2. Current frame
3. Right marker (cineloop end)
4. Cine speed
