Back End Processor (BEP)
Vivid E80/E90/E95 – Service Manual 5-37
GC091052 Rev. 3
LEDs
LEDs on the BEP’s front cover

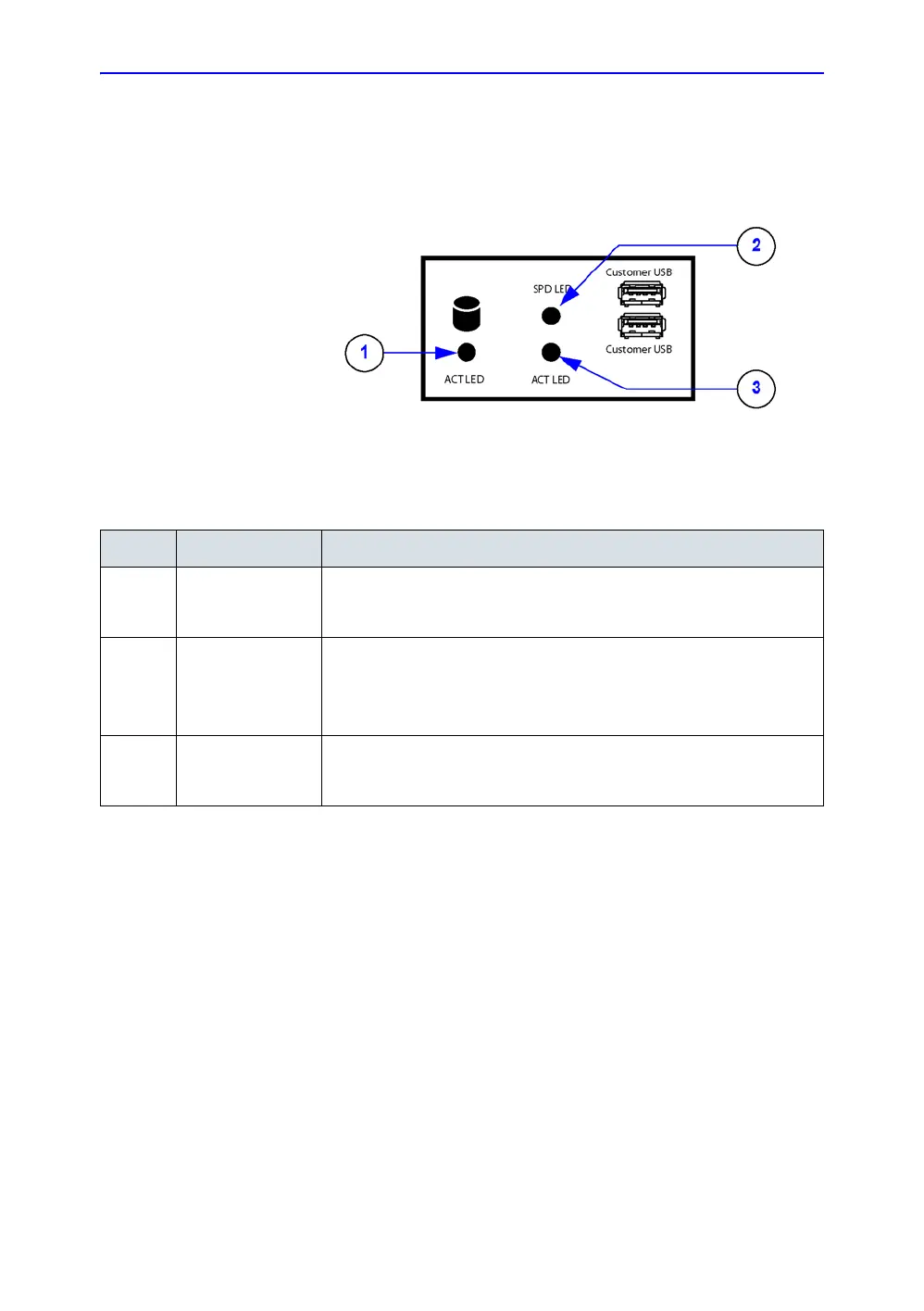

Figure 5-19. LEDs on BEP’s front panel
LED on the BEP’s Rear Panel
The LED on the Rear Panel indicates Post Codes:
Table 5-6: LEDs on BEP’s front panel
Item LED name Description
1.
ACT LED HDD Activity
Blinks when the hard disk drive is active.
2.
SPD LED Network Speed
• 1000 Mbit: Green Light
• 100 MBit: Amber Light
3.
ACT LED Network Activity
Lit (green)
