Components and Functions (Theory)
5-42 Vivid E80/E90/E95 – Service Manual
GC091052
Rev. 3
cSound Power Module (CPM)
General description
The cSound Power Module is a DC/DC power supply board for
the CRX, but also for the GTX-TLP192 digital sections.
The fans below the cSound rack are also controlled from the
Power Module.

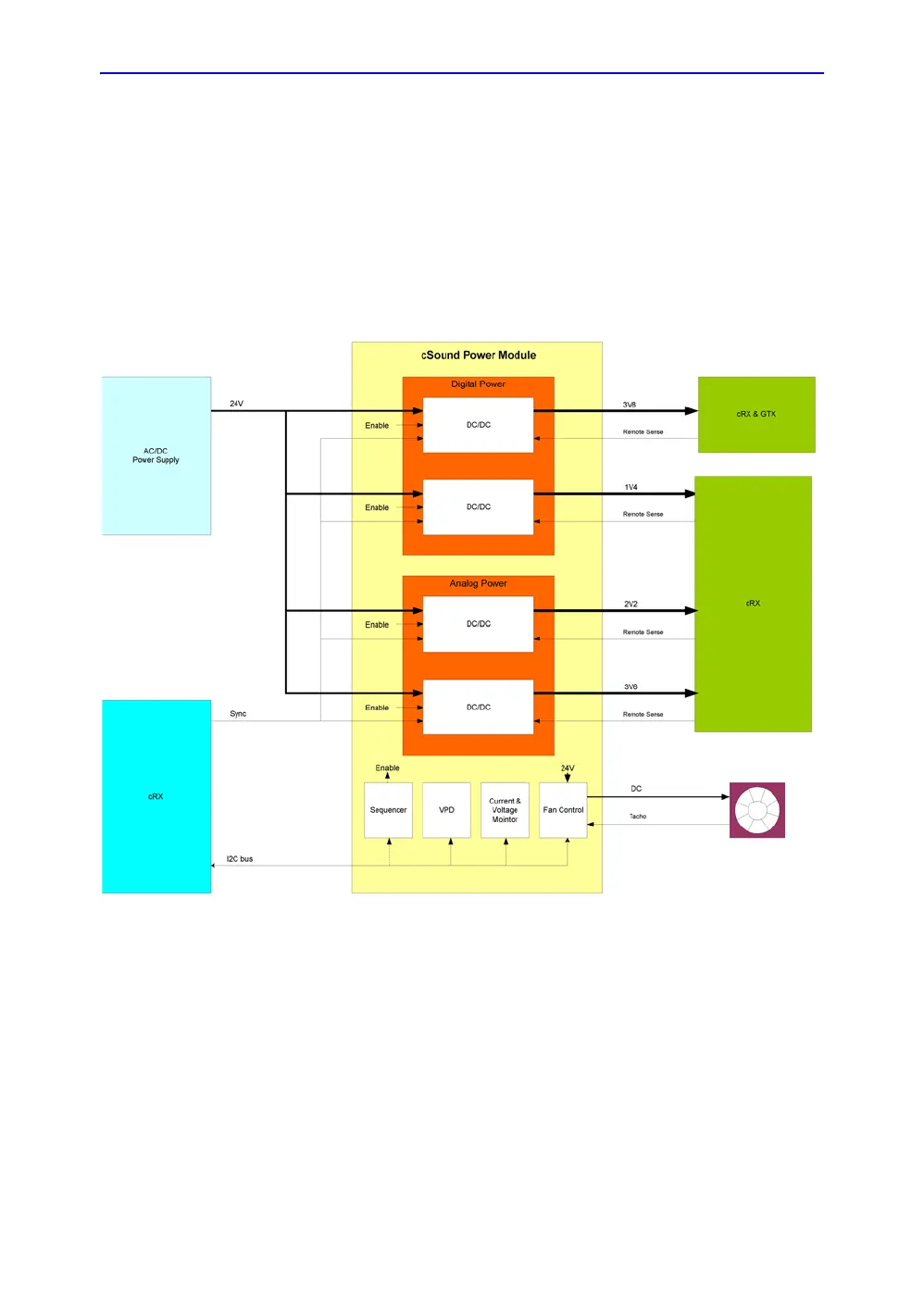

Figure 5-22. CPM Block Diagram
LEDs
A green LED is lit when all PM outputs are within nominal value.
