Functional checks
Vivid E80/E90/E95 – Service Manual 4-17
GC091052 Rev. 3
Color Mode Checks
Introduction
Color Flow screens are 2D or M Mode screens with colors
representing blood or tissue movement.
Color Flow may be selected both from 2D mode or from M mode
or a combination of these.
Color 2D Mode overview

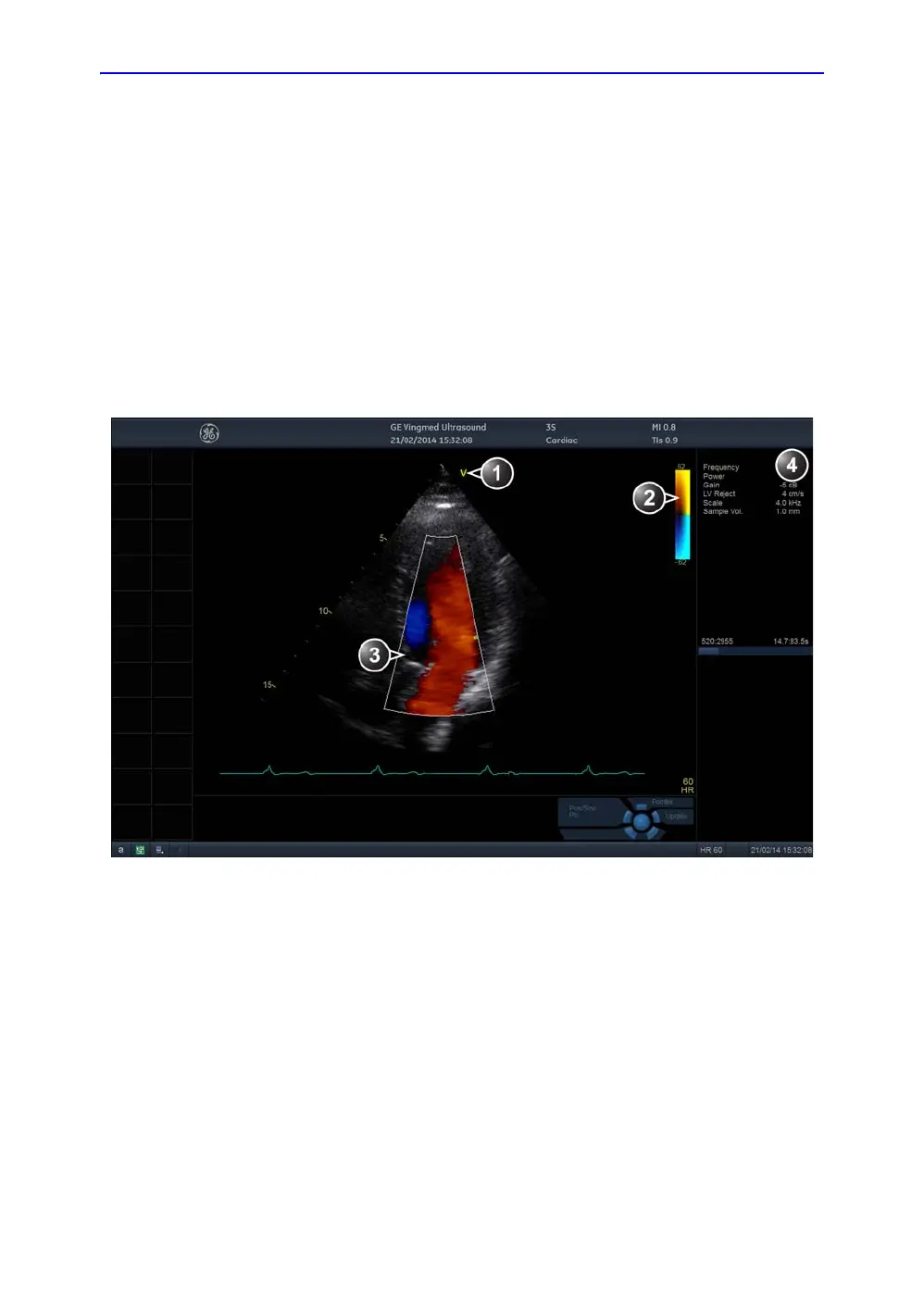

Figure 4-9. The Color Mode screen
1. Probe orientation marker
2. Color bar
3. Color sector marker
4. Parameter window
