Input and Output (I/O) modules
Patient I/O (Physio)
General description
NOTE: The ECG functionality of the Patient I/O module is not intended
for patient monitoring nor to support alarm functionality. This
input is intended as a tool for easier synchronization of images
and cineloop control during ultrasound examinations.
The Patient I/O panel is located on the front of the Vivid E80/
E90/E95.

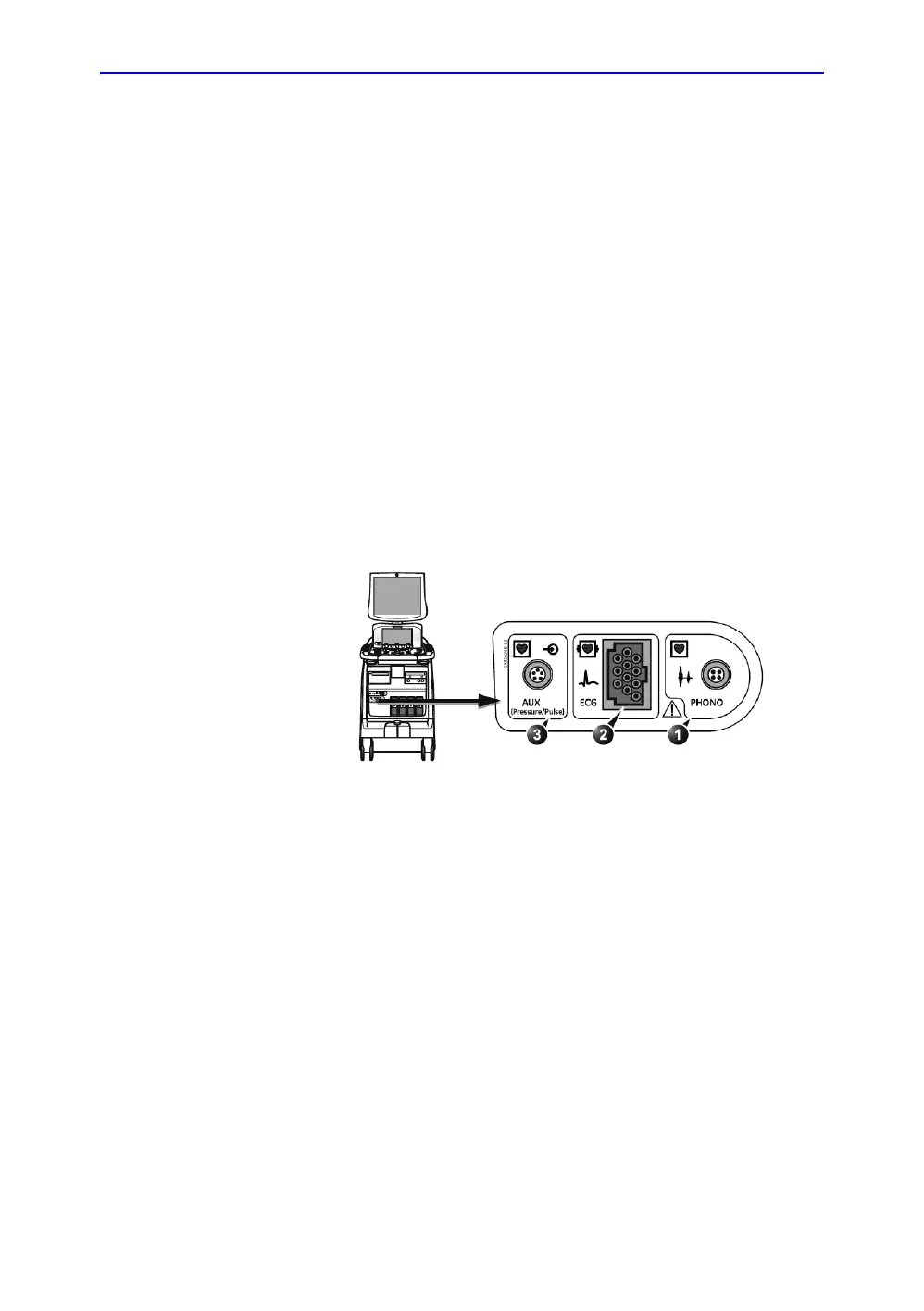

Figure 5-23. Patient I/O Panel
The Patient IO contains the electronics for:
• Analog inputs - AUX (Pressure/Pulse)
• ECG
• PHONO
