Functional checks
Vivid E80/E90/E95 – Service Manual 4-27
GC091052 Rev. 3

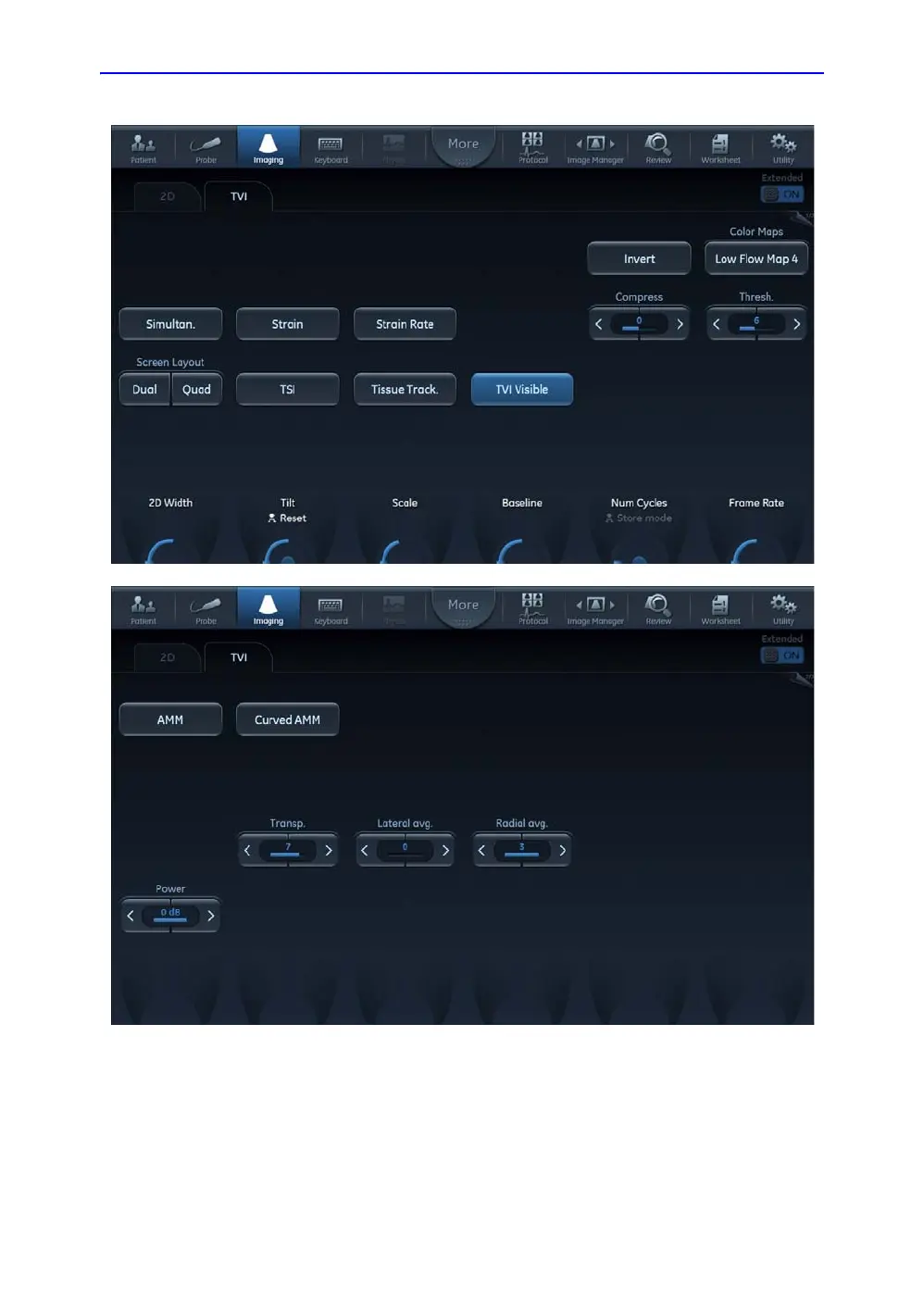

Figure 4-16. TVI Touch panel page 1 and 2
Tissue Velocity Imaging (TVI) calculates and color-codes the
velocities in tissue. The tissue velocity information is acquired by
sampling of tissue Doppler velocity values at discrete points.
The information is stored in a combined format with grayscale
