A/N Keyboard parts replacement
Vivid E80/E90/E95 – Service Manual 8-49
GC091052 Rev. 3
Remove the Wagon, A/N Drawer Sheet Met.
Follow the steps below to remove the Wagon, A/N Drawer Sheet
Met.

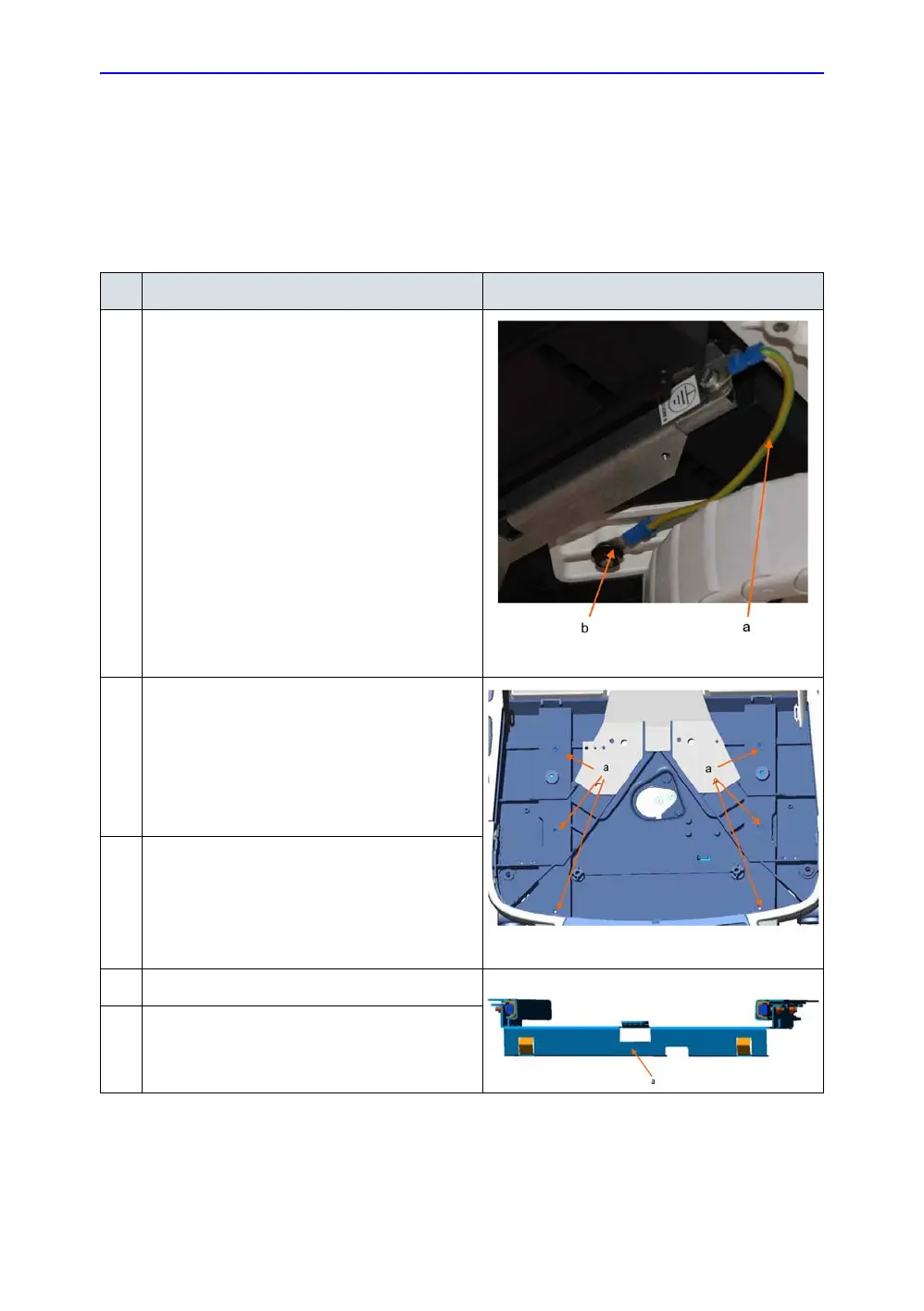

Table 8-2: Remove the Wagon, A/N Drawer Sheet Met.
Steps Corresponding Graphic
1.
Disconnect the ground cable (a) from
the ‘UI Mtg. Fork’ (b).
Keep the nut and the tooth washer for
use during installation.
2.
Loosen the six fixing screws (a) for the
J-Rails / wagon.
3.
Hold the ‘J-Rails / wagon’ assembly in
place with one hand when you remove
the fixing screws.
4.
Remove the J-Rails / wagon assembly.
5.
Remove (slide) the ‘Wagon, A/N
Drawer Sheet Met. Assy’ (a) out and
away from the ‘J-Rails w/Linings’.
