Geeetech A10M User Manual

14
SHENZHEN GETECH TECHNOLOGY CO LTD

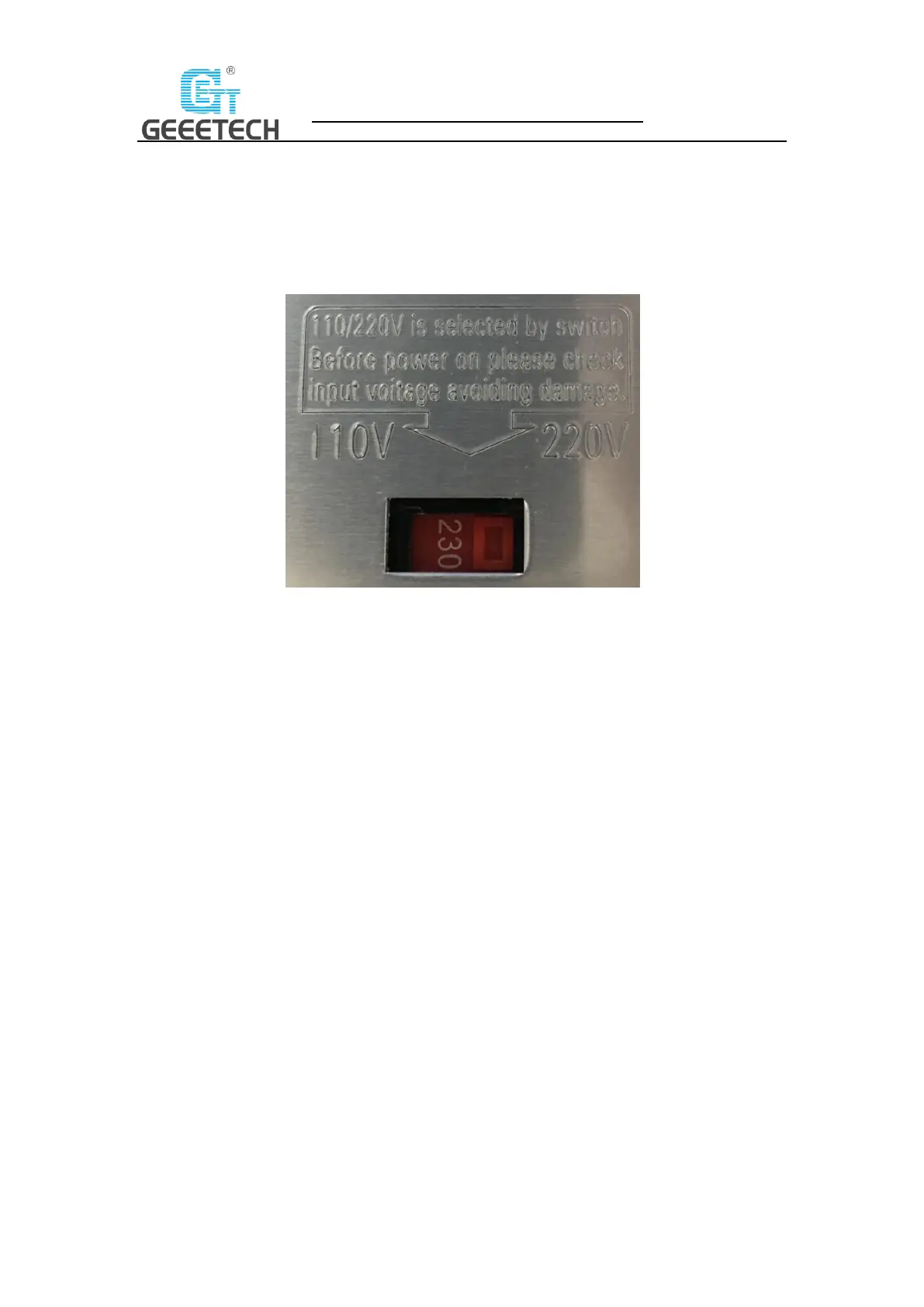

3.3 Check the power input mode
The factory default voltage is 220V. You need to choose the correct voltage according to your
local standard requirement. See picture (3-16)
Note: Be sure the voltage is switched to the correct one.
(Picture 3-16)
3.4 Check the filament
Put the filament on the spool holder. Please pay attention to the feeding direction of the filament.
See picture (3-17).

Geeetech A10M Specifications

General

Print Technology	Fused Deposition Modeling (FDM)
Build Volume	220 x 220 x 260 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Extruder Temperature	250°C
Max Hotbed Temperature	100°C
Connectivity	SD card, USB
Number of Extruders	2
Machine Dimensions	478 x 413 x 485 mm
Net Weight	7.8 kg
Filament Compatibility	PLA, ABS, Wood
Display	LCD
Power Supply	24V
