Geeetech A10M User Manual

44
SHENZHEN GETECH TECHNOLOGY CO LTD

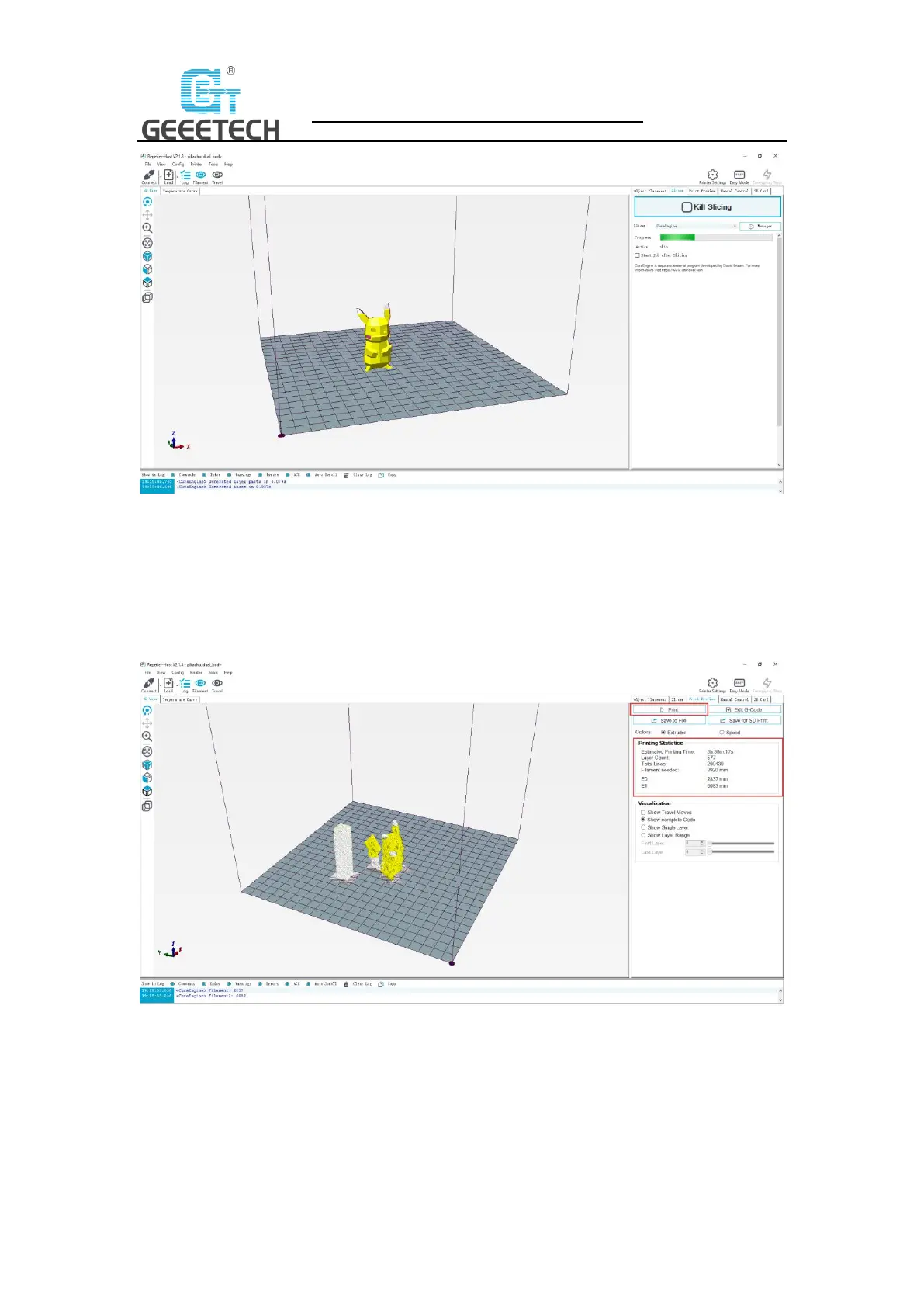

(Picture 6-30)
You can find the model information such as estimated print time, the amount of filament needed,
etc. Click “Print” to start USB printing. Refer to picture (6-31).
The printer will heat to the target temp and then start printing. Under high temperature, the
filament will flow out of the nozzle, which is normal. You can use tweezers to clean up the
residual material of the nozzle.
(Picture 6-31)
6.4 SD card printing
When all parameters are set, click “Save for SD print”. It will pop up a dialog as picture below

Geeetech A10M Specifications

General

Print Technology	Fused Deposition Modeling (FDM)
Build Volume	220 x 220 x 260 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Extruder Temperature	250°C
Max Hotbed Temperature	100°C
Connectivity	SD card, USB
Number of Extruders	2
Machine Dimensions	478 x 413 x 485 mm
Net Weight	7.8 kg
Filament Compatibility	PLA, ABS, Wood
Display	LCD
Power Supply	24V
