Geeetech A10M User Manual

46
SHENZHEN GETECH TECHNOLOGY CO LTD
7 Color Mixer
7.1 Download
Download address: http://www.geeetech.com/forum/viewtopic.php?f=92&t=61760
7.2 Introduction
Free and easy-to-use, color mixer can mix your original single-color gcode file. You can create
thousands program of mixing as you could.

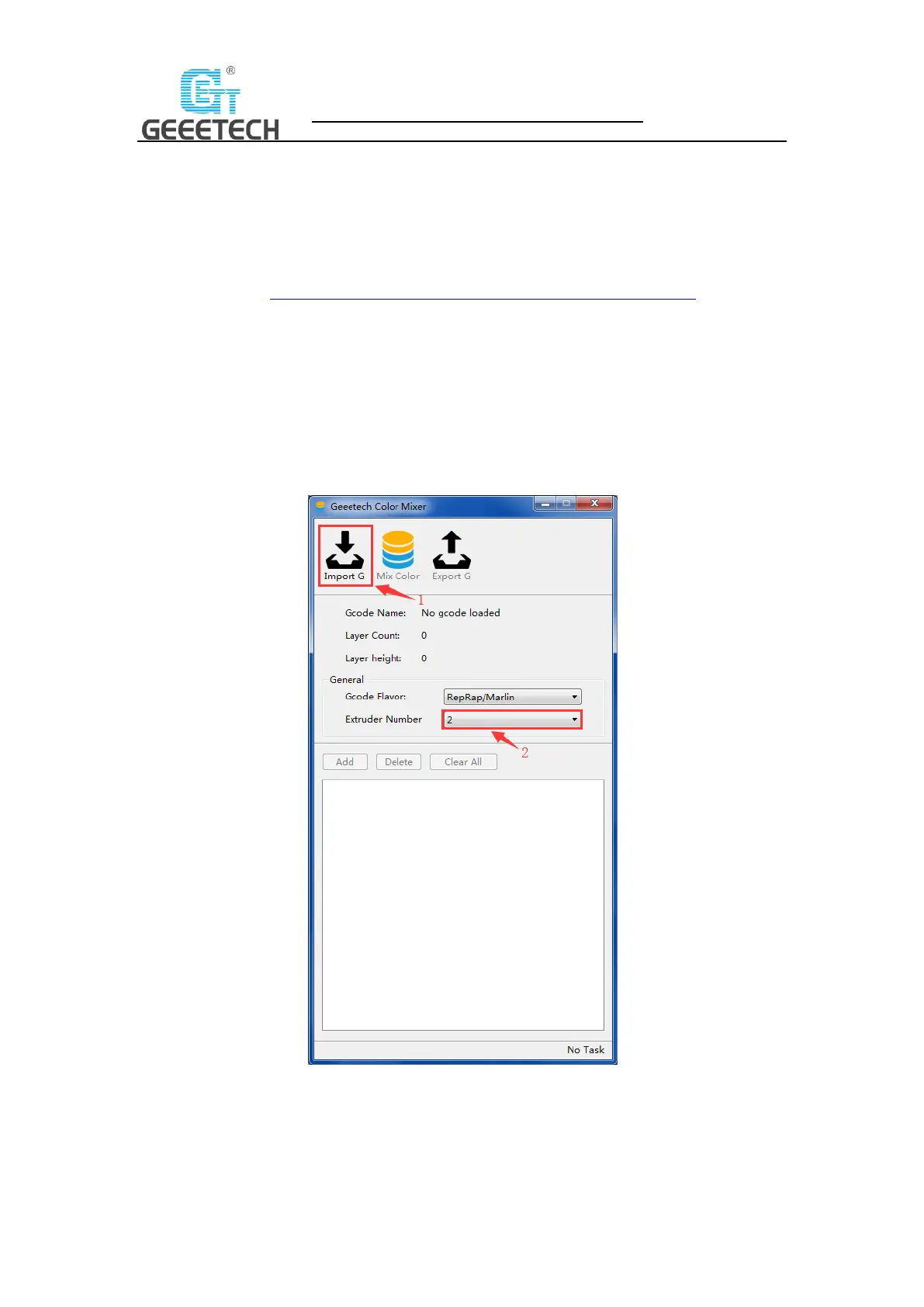

 Click “Import G” to import .Gco file. Choose 2 (also support 3 extruders) as the “Extruder
Number”. See picture (7-1 and 7-2)
(Picture 7-1)

Geeetech A10M Specifications

General

Print Technology	Fused Deposition Modeling (FDM)
Build Volume	220 x 220 x 260 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Extruder Temperature	250°C
Max Hotbed Temperature	100°C
Connectivity	SD card, USB
Number of Extruders	2
Machine Dimensions	478 x 413 x 485 mm
Net Weight	7.8 kg
Filament Compatibility	PLA, ABS, Wood
Display	LCD
Power Supply	24V
