Geeetech A10M User Manual

16
SHENZHEN GETECH TECHNOLOGY CO LTD
(Picture 3-18)
When print PLA, set the target nozzle temperature about 180-210℃. When the temp is stable,
control the extruder filament feeding on LCD screen (“Move axis”), feed until there is molten
material flowing from the nozzle.

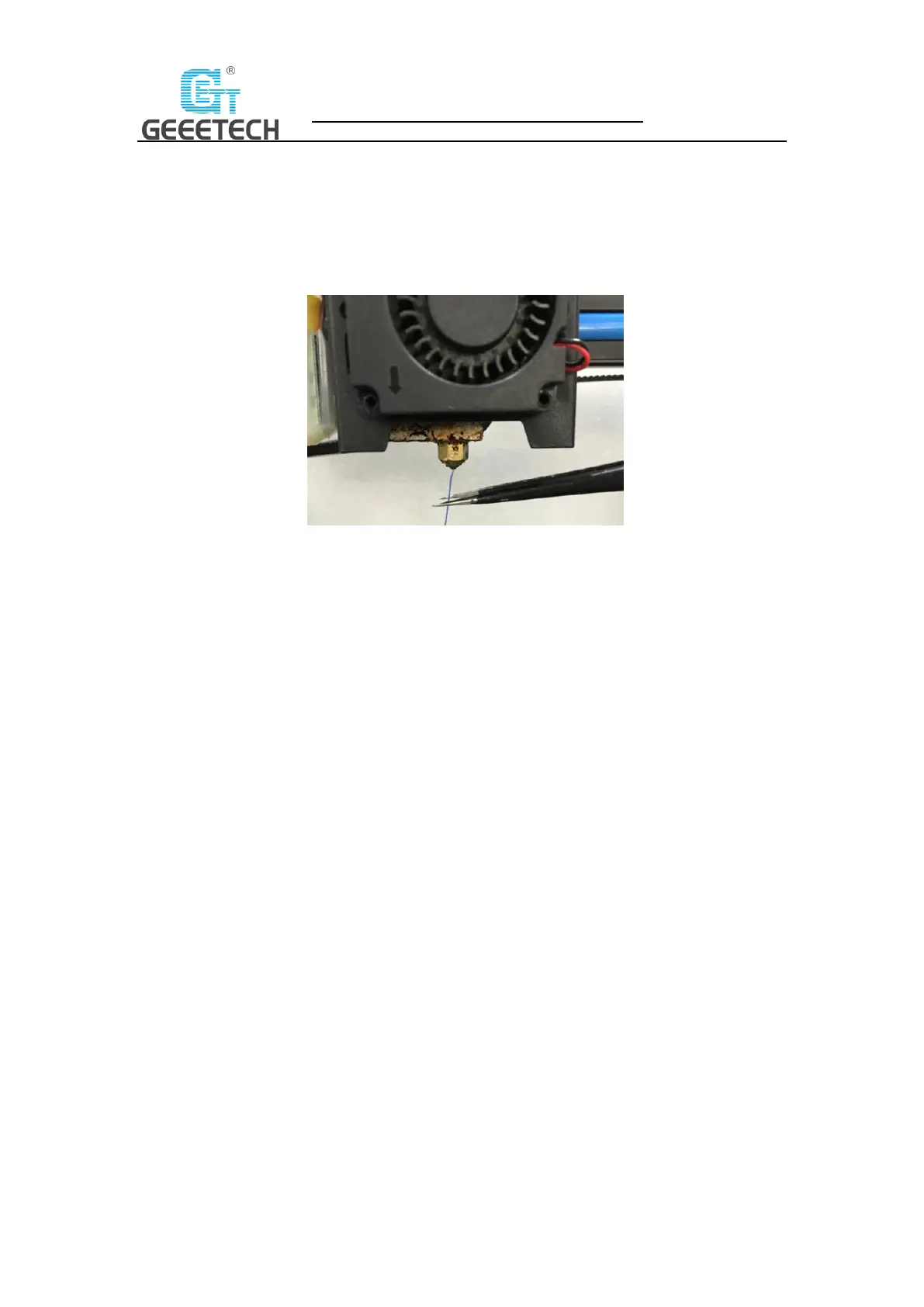

Observe the nozzle, if there is no filament stuck and the filament is coming out smoothly, then
stop filament feeding, clear the nozzle with tweezers. See picture (3-19).
(Picture 3-19)

Geeetech A10M Specifications

General

Print Technology	Fused Deposition Modeling (FDM)
Build Volume	220 x 220 x 260 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Extruder Temperature	250°C
Max Hotbed Temperature	100°C
Connectivity	SD card, USB
Number of Extruders	2
Machine Dimensions	478 x 413 x 485 mm
Net Weight	7.8 kg
Filament Compatibility	PLA, ABS, Wood
Display	LCD
Power Supply	24V
