Geeetech A10M User Manual

34
SHENZHEN GETECH TECHNOLOGY CO LTD

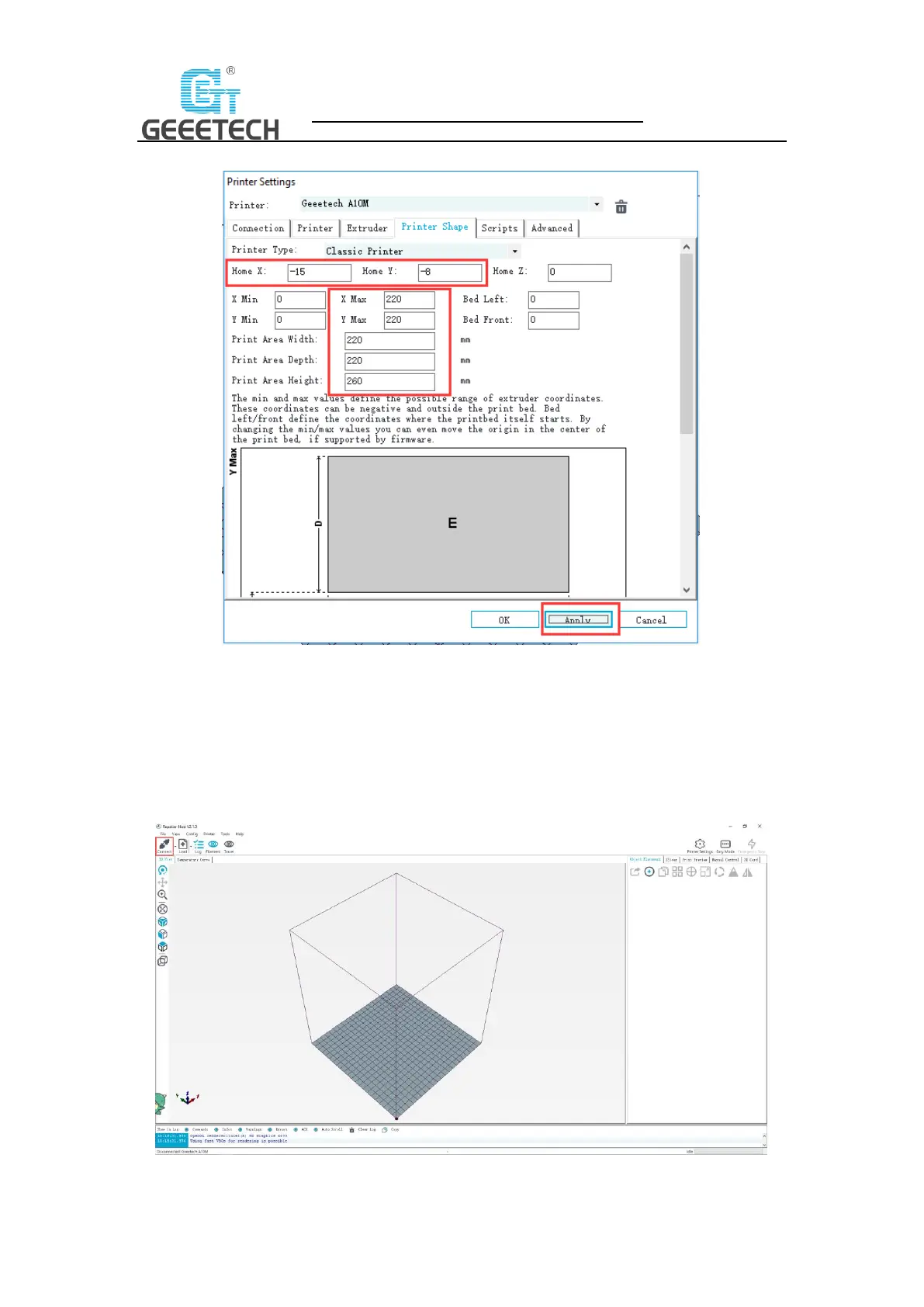

d. Printer shape dialog (Picture 6-10):
(Picture 6-10)
Now the printer parameters are set.
Note: The baud rate is still 250000.
 Set slicing parameters
After setting the printer parameters, click “Connect” on the top left corner. The color of the icon
changed to green means the printer connects to the Repetier-Host successfully. Click it again to
disconnect. See picture (6-11).
(Picture 6-11)

Geeetech A10M Specifications

General

Print Technology	Fused Deposition Modeling (FDM)
Build Volume	220 x 220 x 260 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Extruder Temperature	250°C
Max Hotbed Temperature	100°C
Connectivity	SD card, USB
Number of Extruders	2
Machine Dimensions	478 x 413 x 485 mm
Net Weight	7.8 kg
Filament Compatibility	PLA, ABS, Wood
Display	LCD
Power Supply	24V
