Geeetech A10M User Manual

41
SHENZHEN GETECH TECHNOLOGY CO LTD

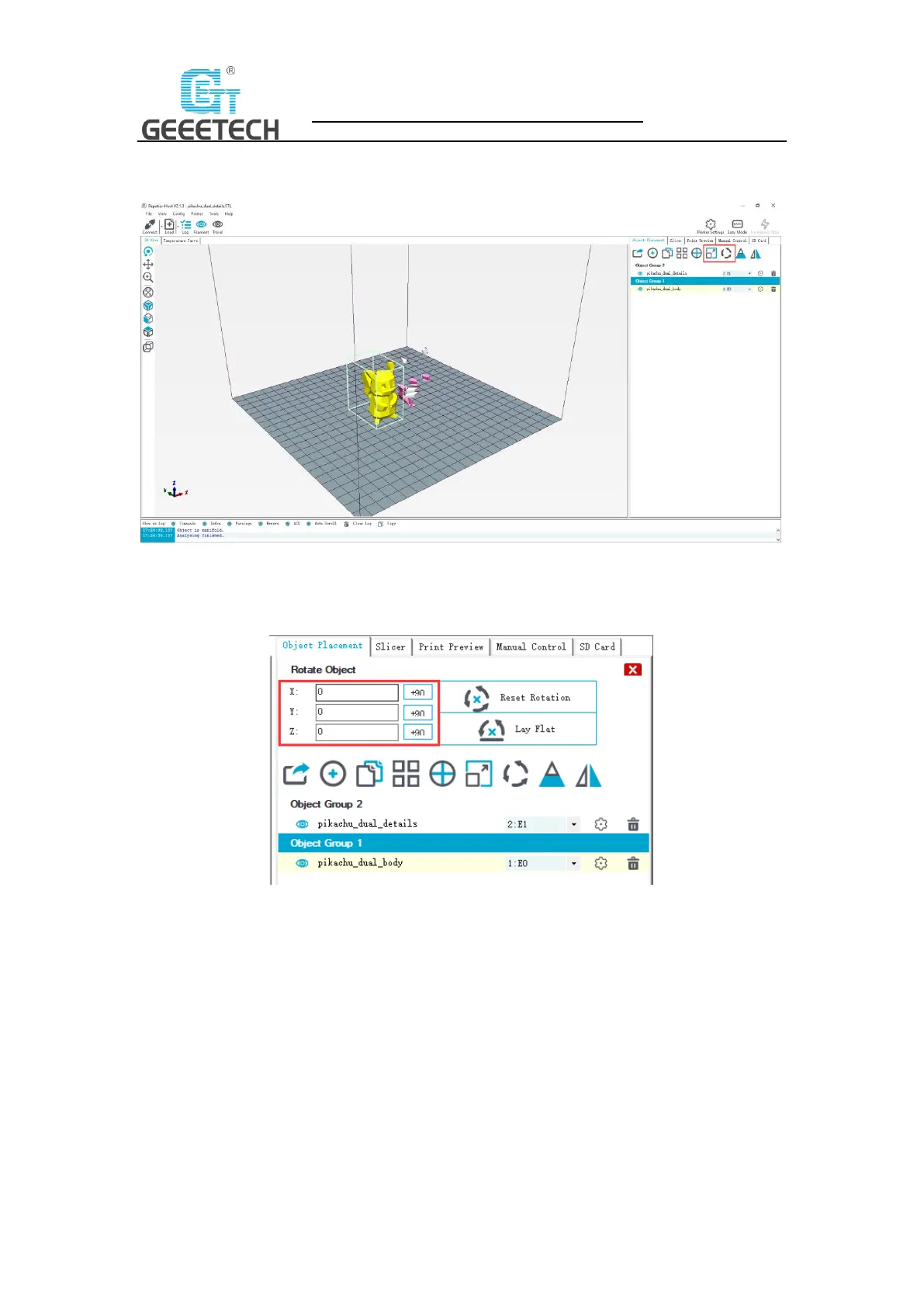

When it is loaded, you can use the buttons as picture below (picture 6-23) to zoom in, zoom out
or rotate the model.
(Picture 6-23)
Adjust the direction of the model so that the flat part of the model is touching the hot bed. See
picture below (6-24):
(Picture 6-24)
Note: If the model loaded is too big and beyond the printing platform, you need to zoom out the
model. You can choose the X/Y/Z together, see picture (6-25):

Geeetech A10M Specifications

General

Print Technology	Fused Deposition Modeling (FDM)
Build Volume	220 x 220 x 260 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Extruder Temperature	250°C
Max Hotbed Temperature	100°C
Connectivity	SD card, USB
Number of Extruders	2
Machine Dimensions	478 x 413 x 485 mm
Net Weight	7.8 kg
Filament Compatibility	PLA, ABS, Wood
Display	LCD
Power Supply	24V
