Geeetech A20 User Manual

SHENZHEN GETECH TECHNOLOGY CO., LTD
20
7 Introduction to the LCD menu

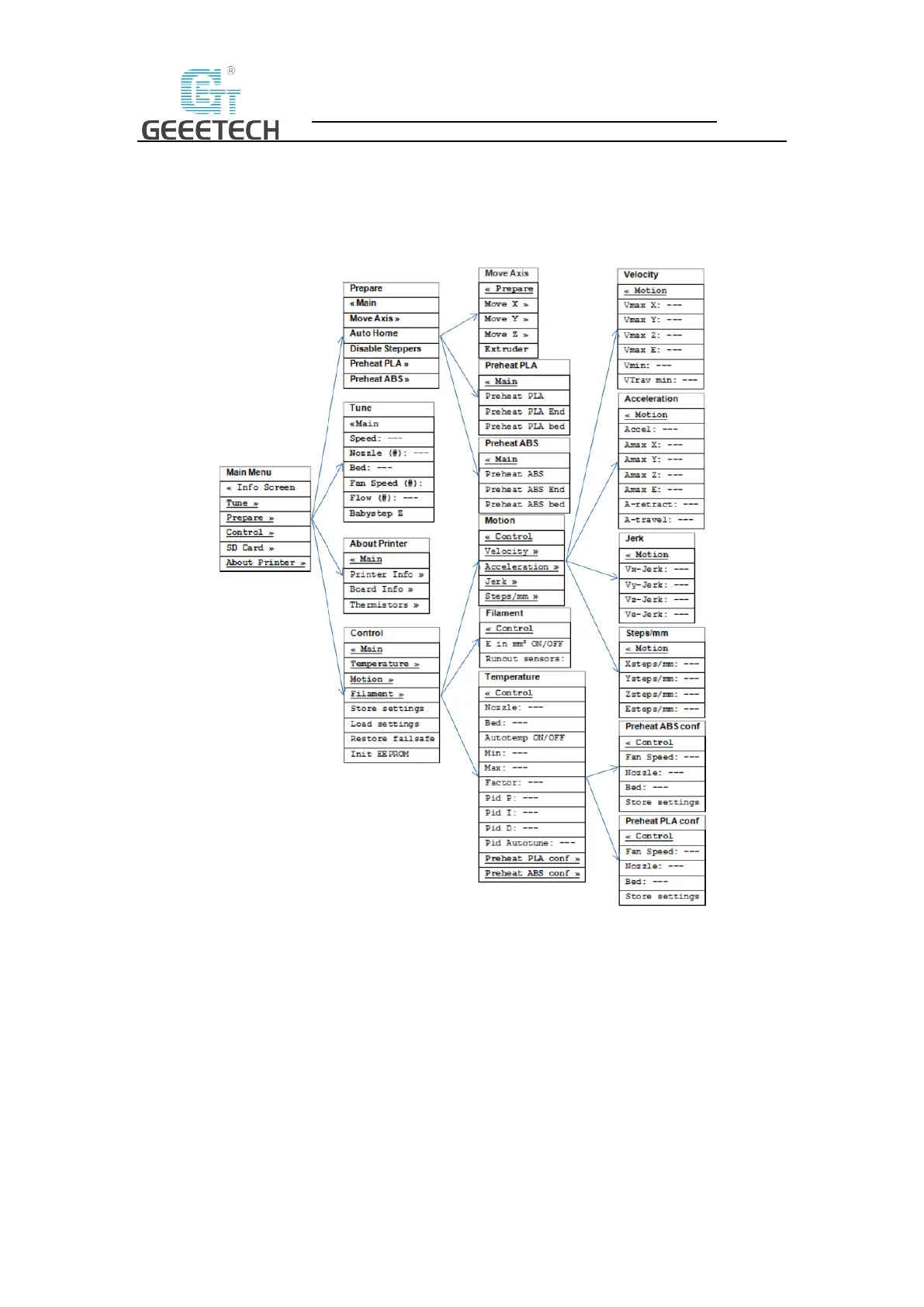

7.1 Tree diagram
(Picture 7-1)
7.2 Main functions
LCD rotating knob:
• Press the knob: Confirm or enter the next menu.
• Rotate the knob: Roll the select options or change parameters.
LCD homepage, see picture (7-2):
1. Extruder temperature: Current temp/target temp

Geeetech A20 Specifications

General

Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Connectivity	USB, SD card
Print Technology	FDM (Fused Deposition Modeling)
Frame Material	Aluminum
Heated Bed	Yes
Display	LCD Screen
Machine Weight	7.8 kg
Supported Materials	PLA, ABS
Bed Temperature	100°C
Nozzle Temperature	250°C
Power Supply	110V / 220V
Layer Resolution	0.1-0.3mm
