5 Assembling
5.1 Assembling the main frame

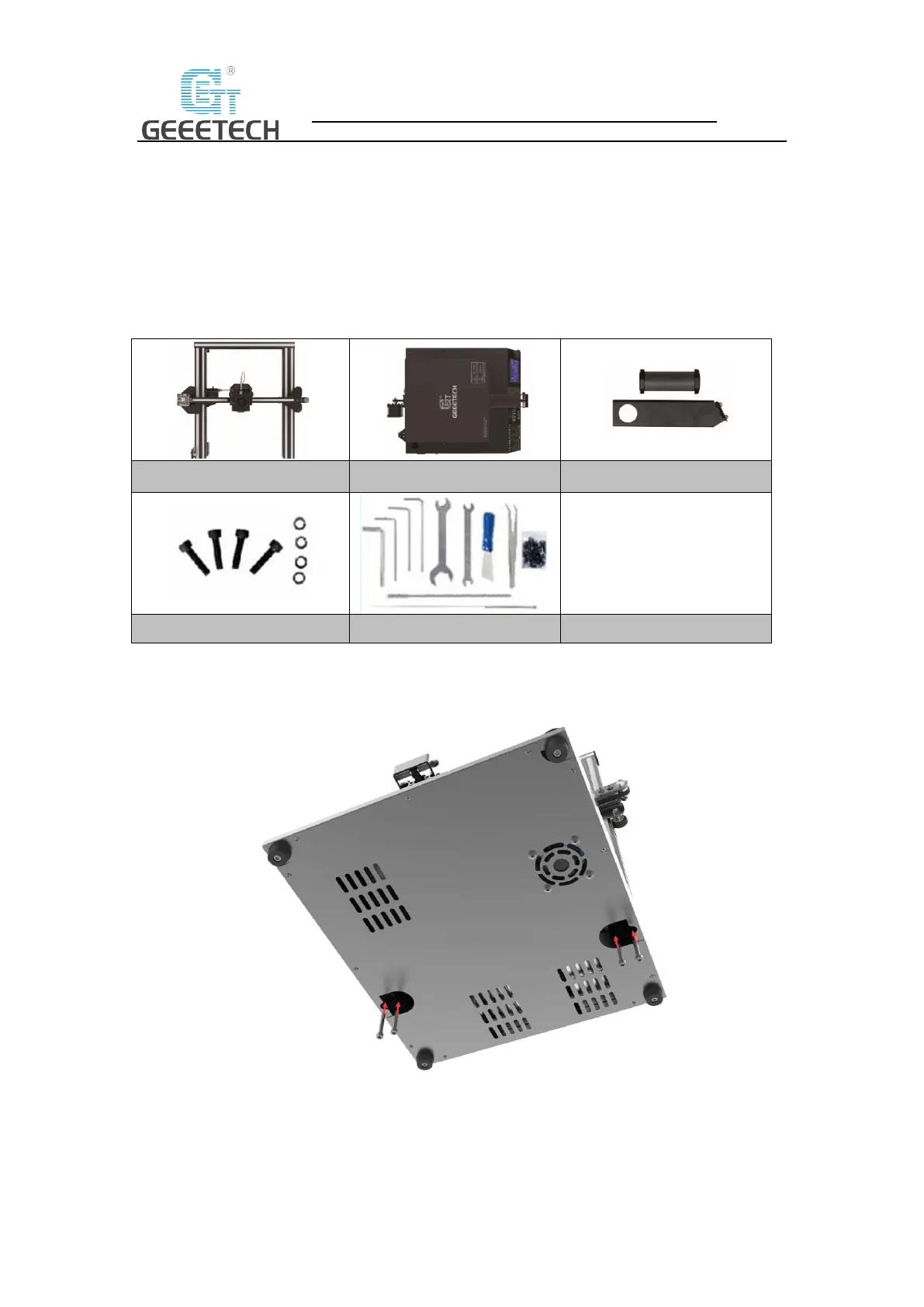

The main frame consists of the gantry kit and the bottom kit, filament holder, and screws. See
picture (5-1).
(Picture 5-1)
• Assemble the gantry frame and base from bottom to top with 4 M5x30 screws and 4 M5
spring washers. See picture (5-2).
(Picture 5-2)
 Assemble filament holder and attach to the top of the frame closing to the extruder
side, with 2pcs M3x6 screws and 2 T- nuts M3, as shown picture (5-3).
Gantry kit Bottom kit
Filament holder kit
Machine installing screws Tool kit
