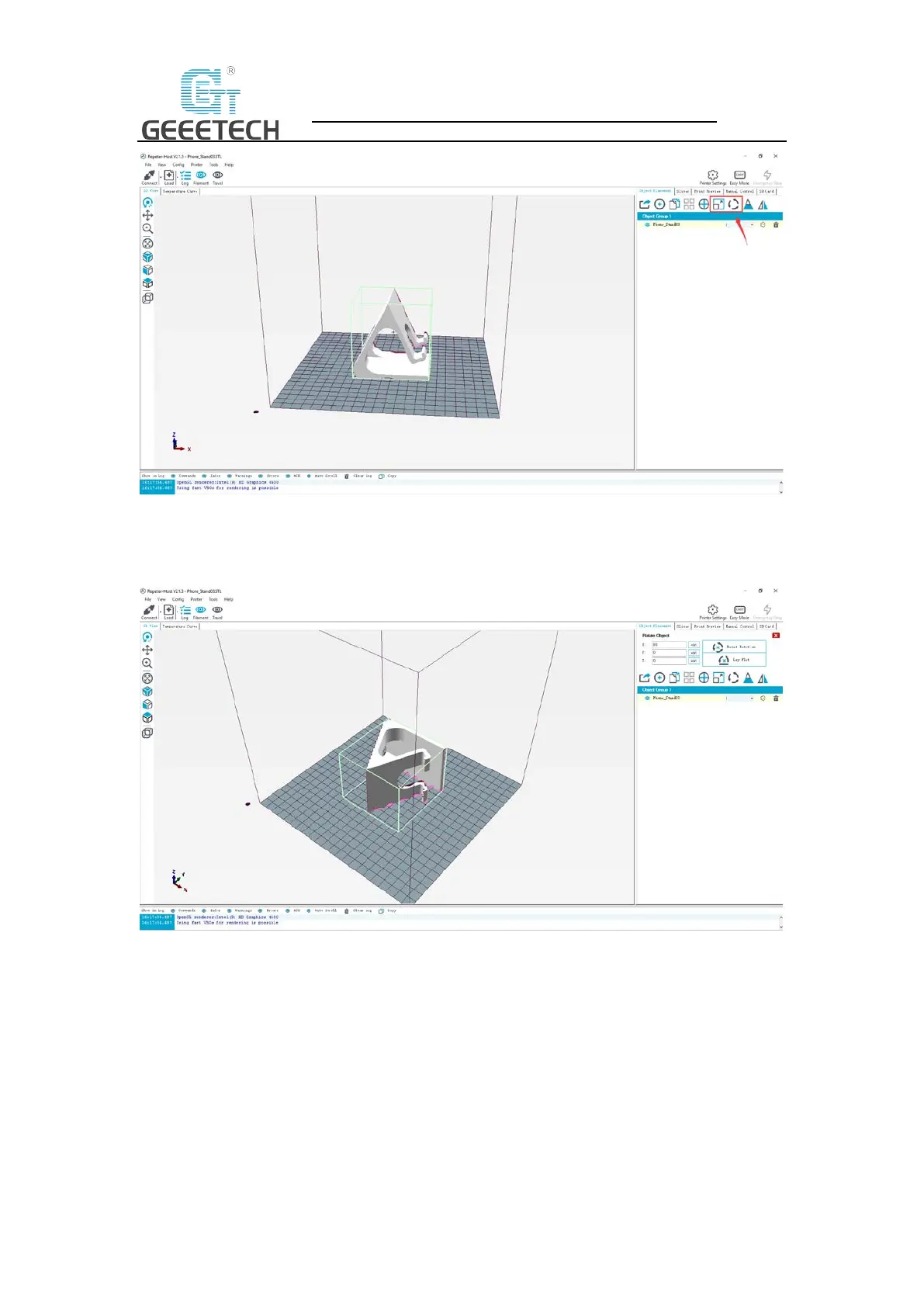

(Picture 8-23)
Adjust the direction of the model so that the flat part of the model is touching the hot bed. See
picture below (8-24):
(Picture 8-24)
Note: If the model loaded is too big and beyond the printing platform, you need to zoom out
the model. Click to “zoom the object”. You can perform a uniform scaling as shown in Picture
(8-25).
