Geeetech A20 User Manual

SHENZHEN GETECH TECHNOLOGY CO., LTD
38

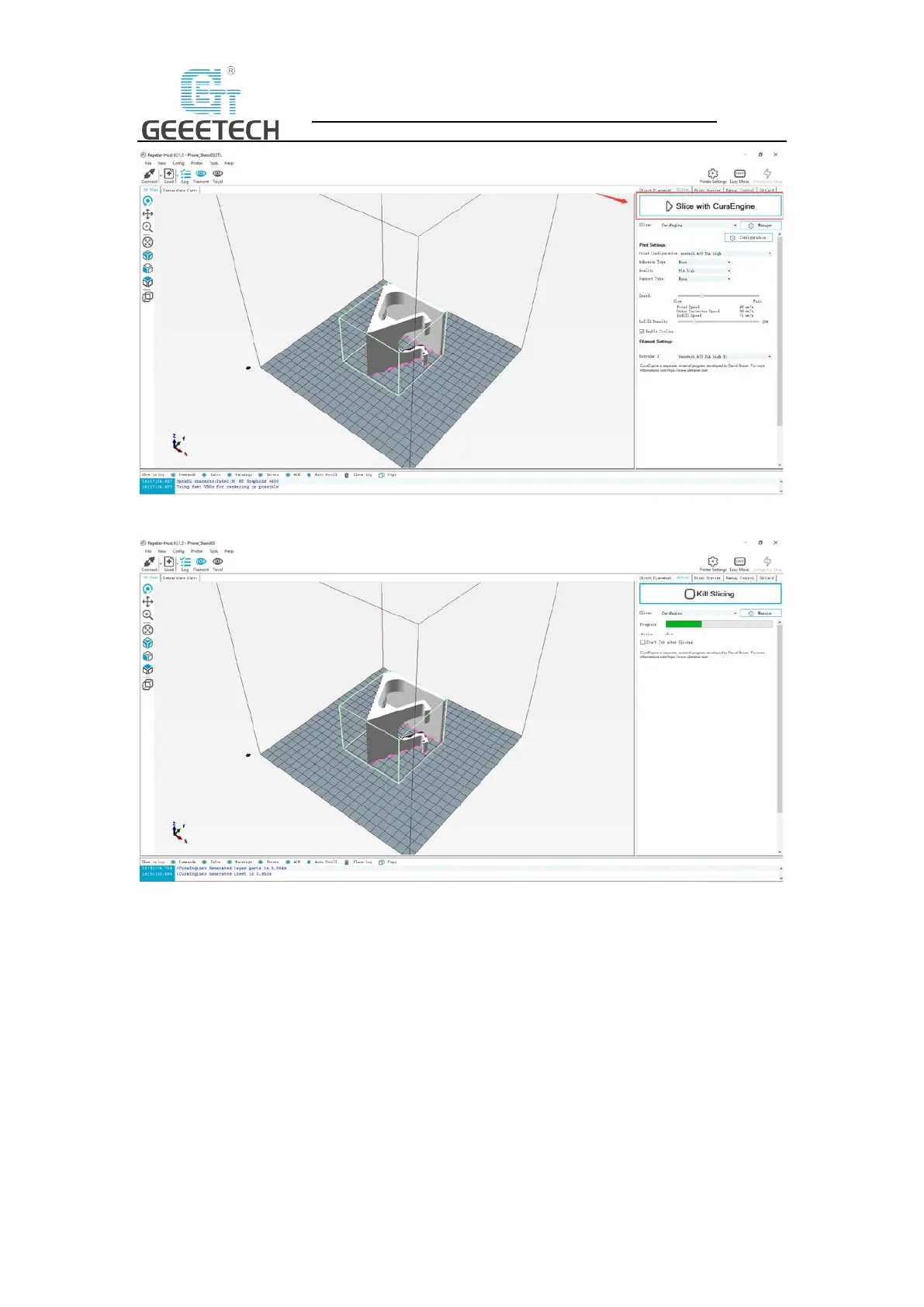

(Picture 8-27)
(Picture 8-28)
You can find the model information such as estimated print time, the amount of filament needed,
etc. Click “Print” to start USB printing. Refer to picture (8-29).
The printer will heat to the target temp and then start printing. Under high temperature, the
filament will flow out of the nozzle, which is normal. You can use tweezers to clean up the
residual material of the nozzle.

Geeetech A20 Specifications

General

Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Connectivity	USB, SD card
Print Technology	FDM (Fused Deposition Modeling)
Frame Material	Aluminum
Heated Bed	Yes
Display	LCD Screen
Machine Weight	7.8 kg
Supported Materials	PLA, ABS
Bed Temperature	100°C
Nozzle Temperature	250°C
Power Supply	110V / 220V
Layer Resolution	0.1-0.3mm
