Geeetech Prusa I3 User Manual

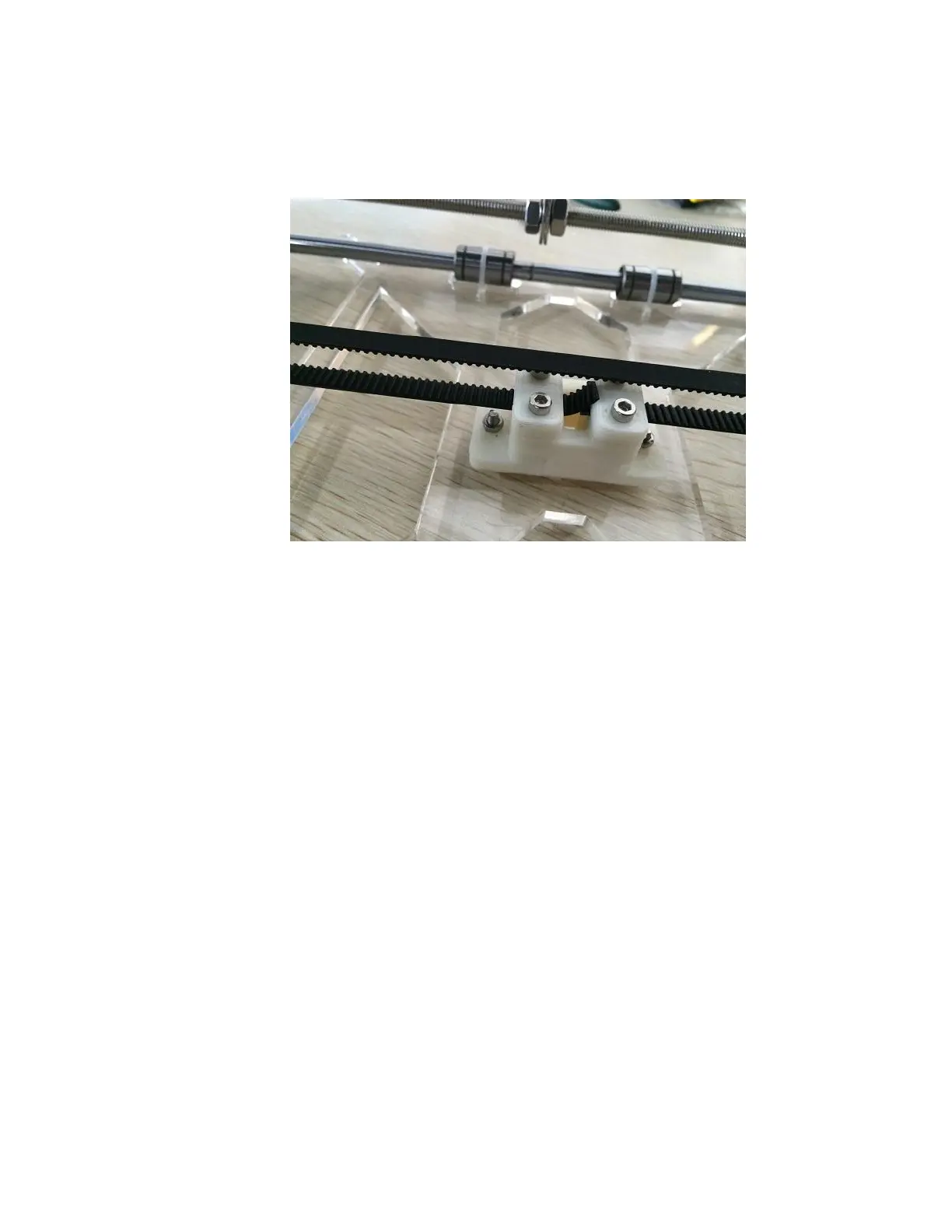

m3-16 screws. The belt should be tight with tension. As the bed moves on the chassis, there
should be no skipping.

Geeetech Prusa I3 Specifications

General

Build Volume	200 x 200 x 180 mm
Layer Resolution	0.1-0.3 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Print Technology	FDM (Fused Deposition Modeling)
Connectivity	SD card, USB
Supported Materials	PLA, ABS, Wood
Frame Material	Acrylic
Power Supply	DC 12V
Machine Weight	8 kg
