Geeetech Prusa I3 User Manual

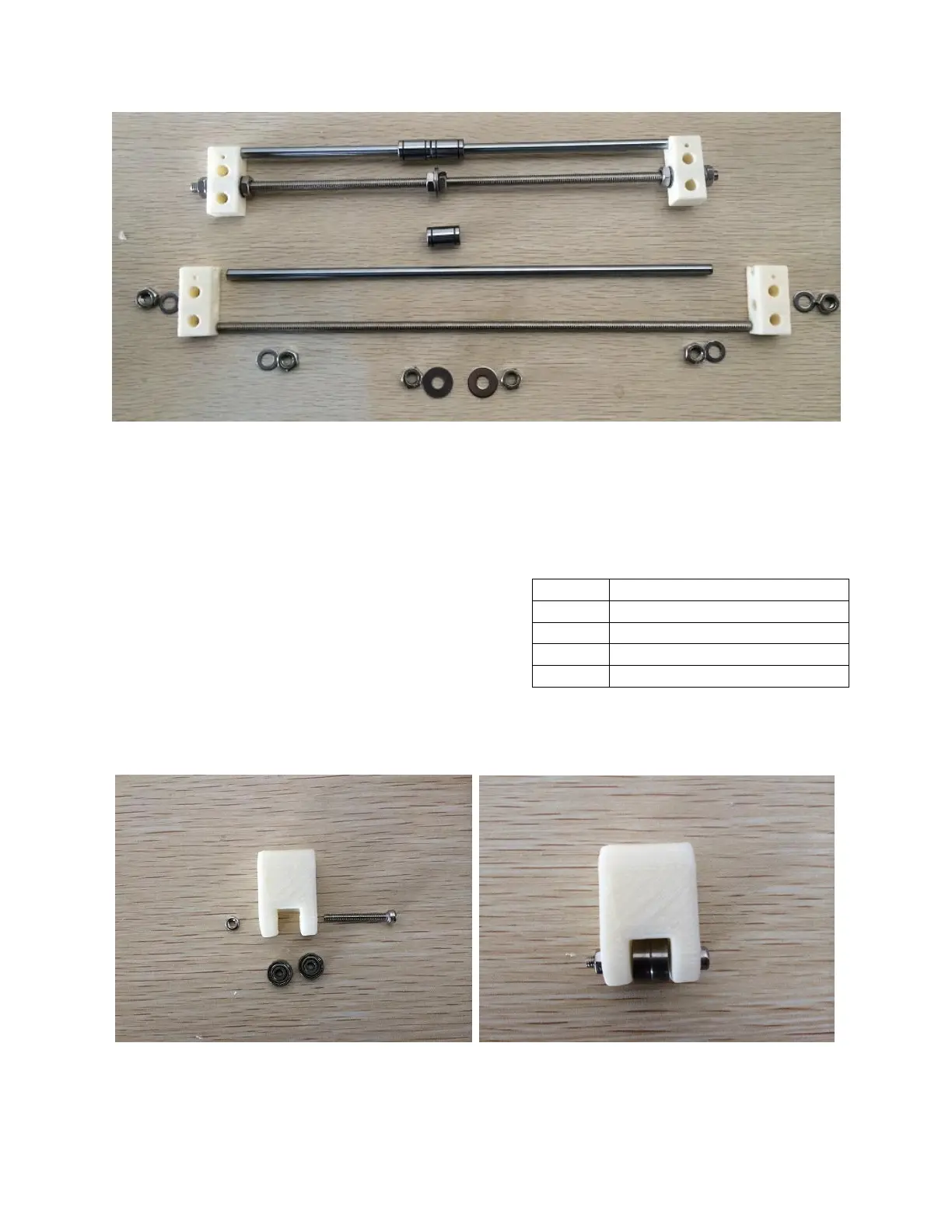

Note: the top assembly is on the port side, and the bottom assembly goes to the starboard side.
2. Assemble the Y idler
Required parts
Number
623ZZ bearing
2
Printed Y idler (ID no. 3)
1
M3-25 screw
1
M3 nut
1
1. Put the M3-25 screw thru the printed Y idler piece, with two 623ZZ bearings in between. Lock
the other end of a M3 nut.

Geeetech Prusa I3 Specifications

General

Build Volume	200 x 200 x 180 mm
Layer Resolution	0.1-0.3 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Print Technology	FDM (Fused Deposition Modeling)
Connectivity	SD card, USB
Supported Materials	PLA, ABS, Wood
Frame Material	Acrylic
Power Supply	DC 12V
Machine Weight	8 kg
