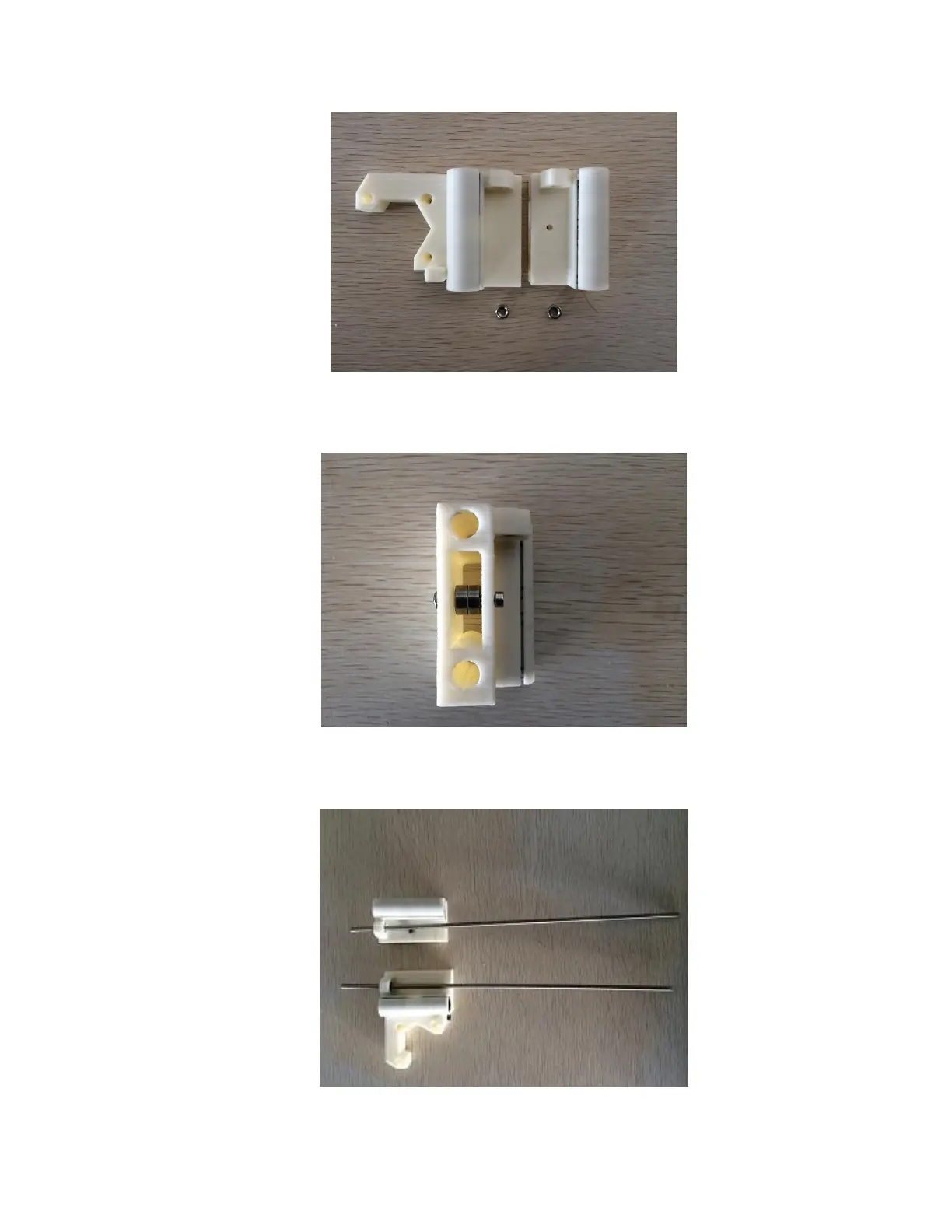

3. Use the M3-20 screw and nut to attach two 623zz bearing to the X idler.
4. Attach the two 300mm M5 threaded rod through the M5 nuts.
