Geeetech Prusa I3 User Manual

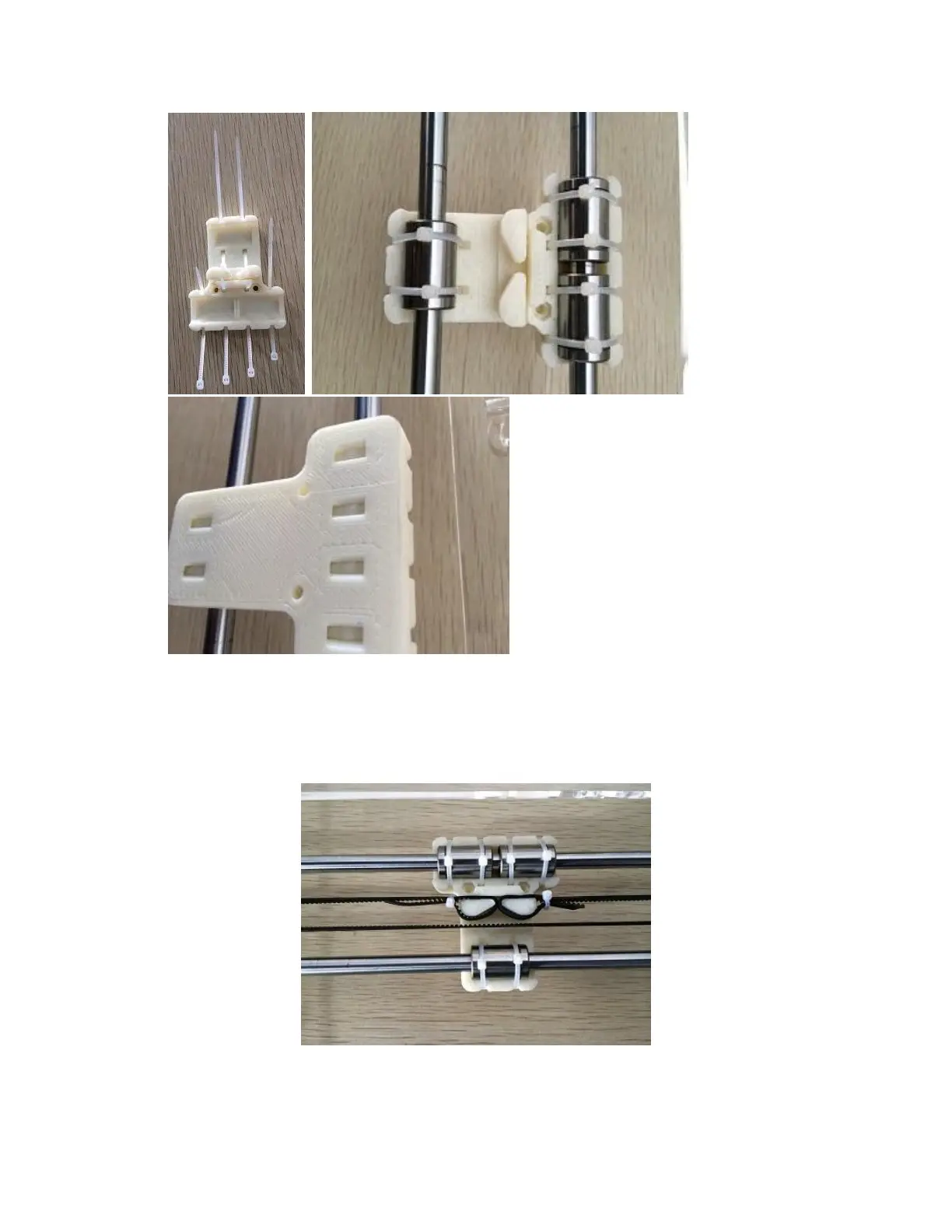

9. Wrap the GT2 timing belt around the X motor and the 623zz bearings. Tie both ends to the X
carriage using zip ties. Make sure the belt is tight and there is no skipping when the carriage
moves.

Geeetech Prusa I3 Specifications

General

Build Volume	200 x 200 x 180 mm
Layer Resolution	0.1-0.3 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Print Technology	FDM (Fused Deposition Modeling)
Connectivity	SD card, USB
Supported Materials	PLA, ABS, Wood
Frame Material	Acrylic
Power Supply	DC 12V
Machine Weight	8 kg
