Geeetech Prusa I3 User Manual

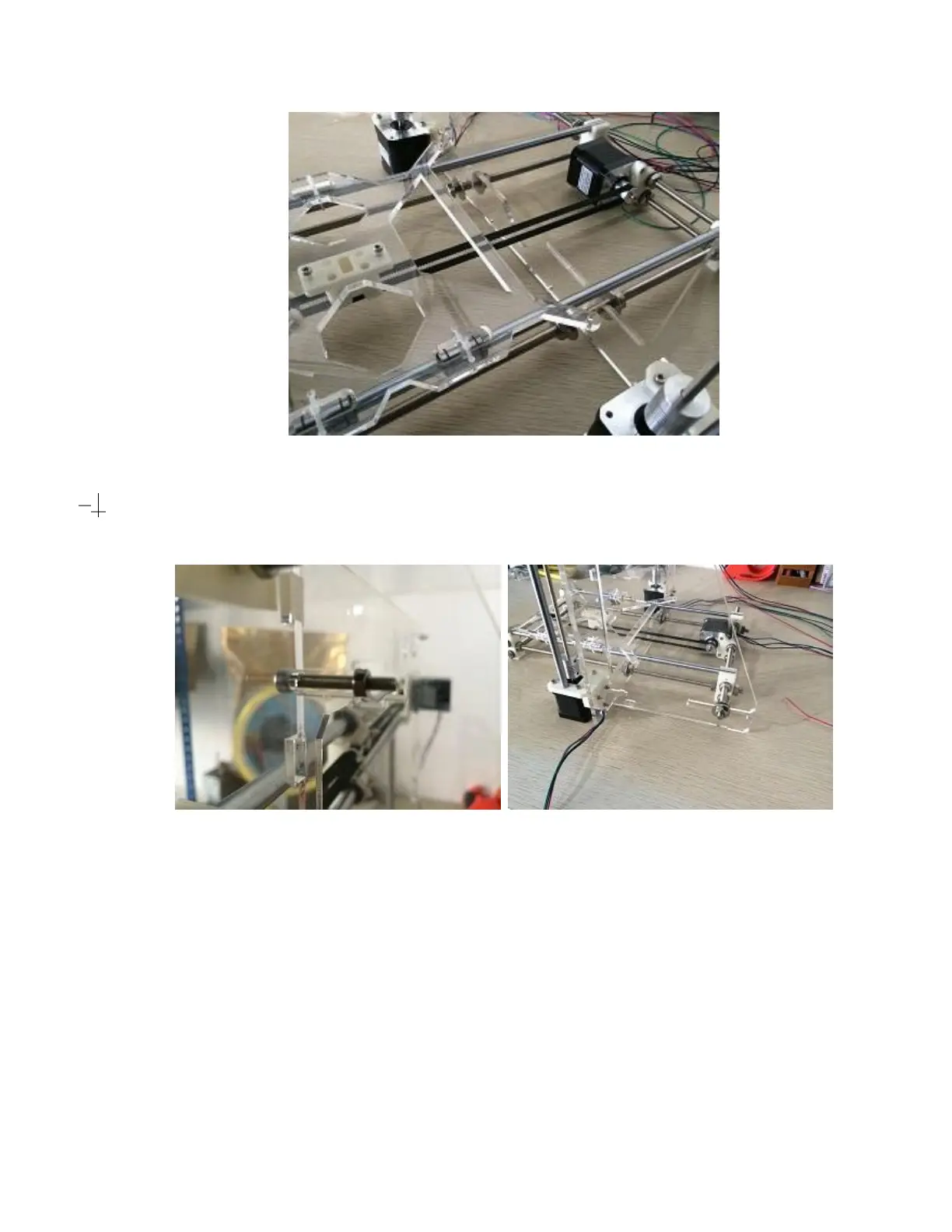

6.7. Attach the side panels to the main acrylic frame using three M3-25 and three M3 nuts on each side (first
picture). Place the side panel with holes on the starboard side (the side with X motor). Place the bottom
slot of the side panel between the fender washers on the longer rear threaded rod (second picture).
You should have your Prusa i3 looking like the one shown below. Tighten all nuts to have a
sturdy frame.

Geeetech Prusa I3 Specifications

General

Build Volume	200 x 200 x 180 mm
Layer Resolution	0.1-0.3 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Print Technology	FDM (Fused Deposition Modeling)
Connectivity	SD card, USB
Supported Materials	PLA, ABS, Wood
Frame Material	Acrylic
Power Supply	DC 12V
Machine Weight	8 kg
