3.4. Setting up quick configuration
The quick configuration menu lets you quickly configure
and start a controller.
To do this, it uses default values for many of the parameters
assigned to the functions and other parameters are not
activated.
With this configuration, the controller can satisfy the majori-
ty of operating requirements.
You can set up the first configuration with the main confi-
guration menu (see paragraph “4.1 Programming/Configu-
ration Menu” on page 43), which gives access to all of the
parameters.
For purposes of example, some of the controller’s main fun-
ctions are listed below, with a list of parameters to be chan-
ged after running fast configuration to adapt the controller to
specific working conditions.

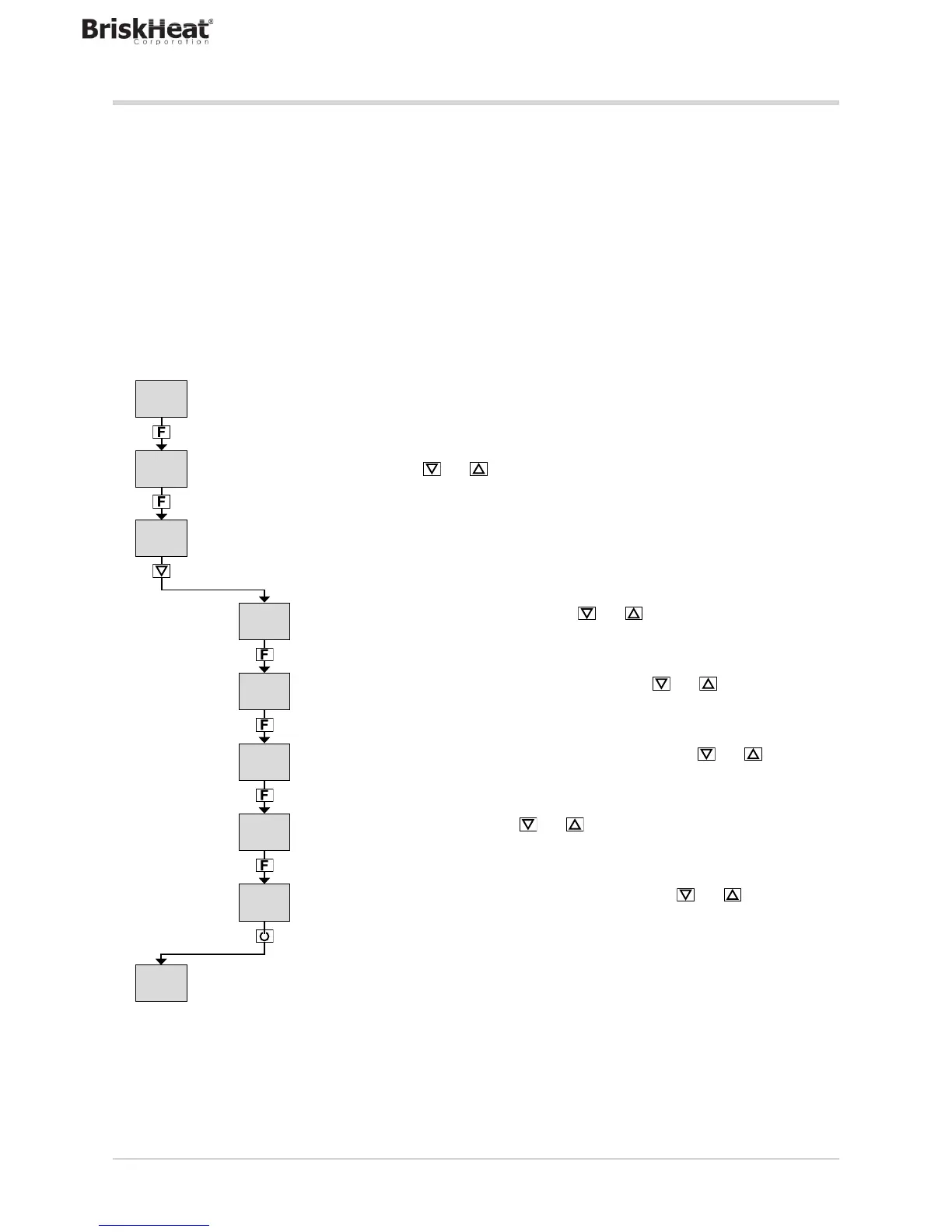

3.4.1. Setting up the Alarm
If at least one output was configured as Alarm in the fast configuration.
0000
0000
d.i.x
A.r.x
HYSTE
MSG.AL
0000
0000
ALARM
ALARM
0
PASS1
Home page
Home page
Press > 2 seconds
Press > 2 seconds
Enter password (default = 1) with the
and keys
Select the Alarm number (default = 1) with the and keys
Description of parameter and list of options on page. 77
Set the alarm as direct or inverse (default = Direct) with the
and keys
Description of parameter and list of options on page. 77
Set the alarm as absolute or deviation (default = Absolute) with the
and keys
Description of parameter and list of options on page 77
Set hysteresis (default = -1) with the
and keys
Description of parameter and list of options on page 79
Select the message assigned to the alarm (default = 0) with the
and keys
Description of parameter and list of options on page 79
Press 3 times (if the model does not have remote setpoint input and current
transformer options and is not the Programmer)
Press twice
Press 4 times
Press twice
Submenu
ALARM
The ALARM submenu also lets you:
• select the input or value to be monitored for the alarm
(parameter rEF.x, default = PV);
• select the method for applying hysteresis (parameter
n.S.x, default = NORML);
• enable or disable the power-on alarm (parameter
PWON.E, default = OFF);
• latch/not latch the active alarm state (parameter LA-
TCH, default = OFF);
• set the alarm trip delay (parameter DELAY, default
= 0.00);
• activate or deactivate flashing of the PV display in case
of alarm (parameter BLK.AL, default = OFF).
3. COMMISSIONING
Gefran 650/1250/1350 Temperature Controller – Abbreviated Manual
40524-04 Rev0
