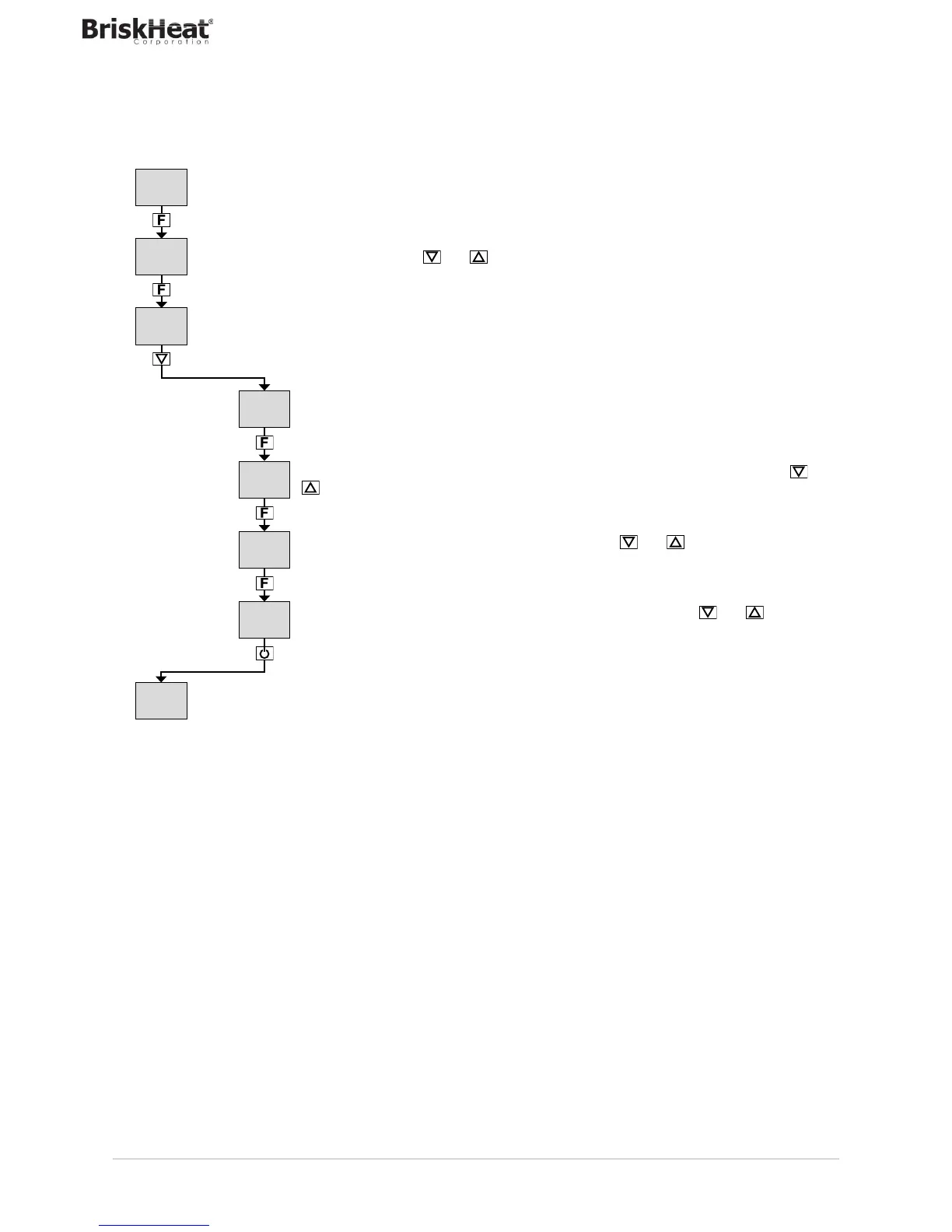

3.4.2. Setting up the Heater Break Alarm
If at least one output was configured as Heater Break Alarm in the fast configuration.
0000
0000
THR.PE
LoAd
MSG.HB
0000
0000
LOW.ON
AL.HB
0
PASS1
Home page
Home page
Press > 2 seconds
Press > 2 seconds
Enter password (default = 1) with the
and keys
Set the percentage of HB current compared to calibration (default = 80%) with the and
keys. Description of parameter and list of options on page 82
Select the connected load (default = MONO) with the and keys
Description of parameter and list of options on page 82
Select the message assigned to the HB alarm (default = 0) with the
and keys
Description of parameter and list of options on page 82
Press 4 times (if the model does not have remote setpoint input and current
transformer options and is not the Programmer)
Press 4 times
Press twice
Submenu
AL.HB
The AL.HB submenu also lets you:
• set an HB alarm due to low current draw (parameter
LOW.ON, default = 0.0);
• set an HB alarm due to high current draw (parameter
HIG.ON, default = 0.0);
• set an HB alarm due to excess current draw (parameter
HI.OFF, default = 0.0);
• set the HB alarm trip delay (parameter TIME, default =
0);
• select the control output assigned to the HB alarm
(parameter OUT, default = 1);
• activate or deactivate flashing of the PV display in case
of alarm (parameter BLK.AL, default = OFF).
